HANDLE SWITCH (MODEL H E18)

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

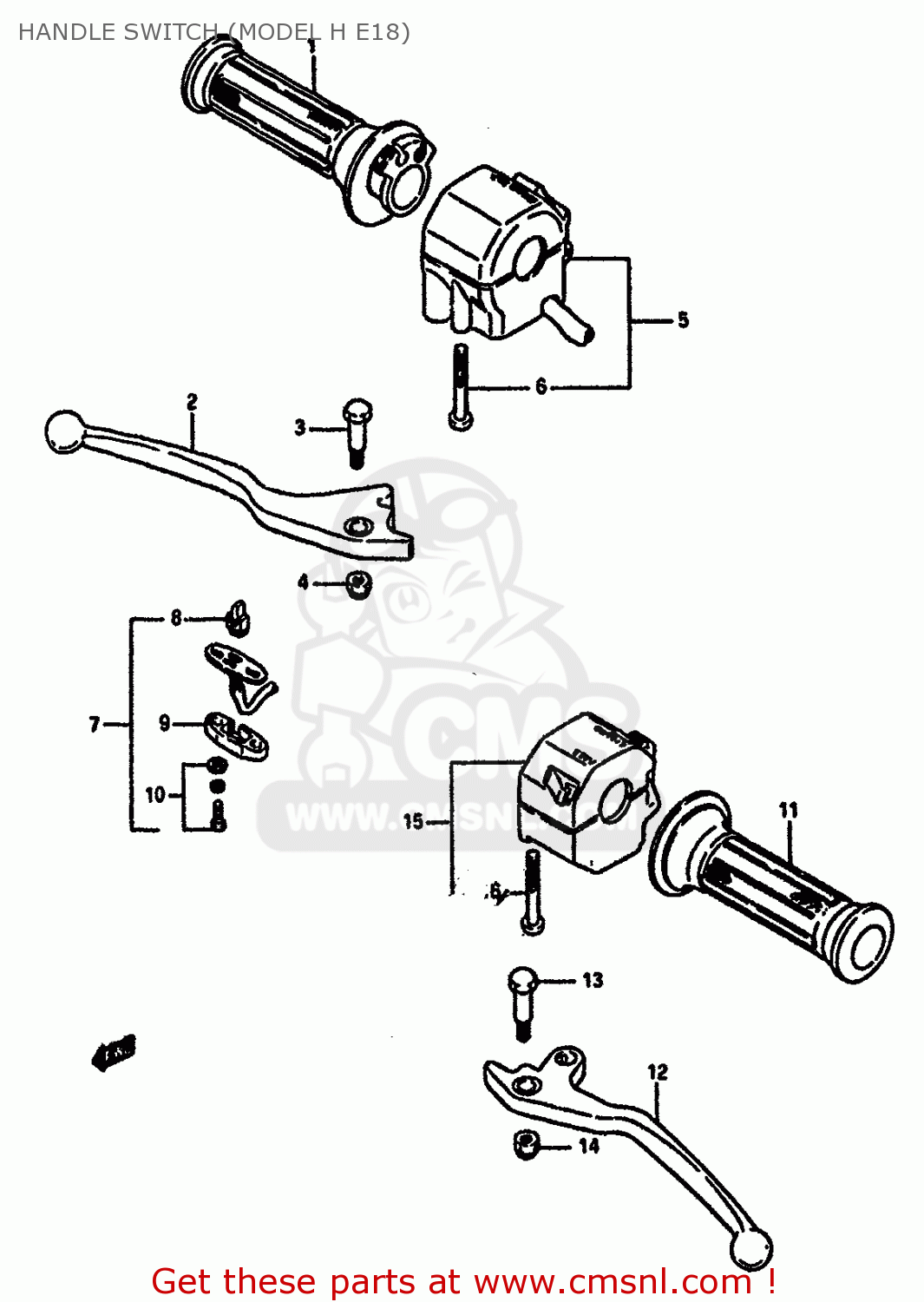

Handle switch (model h e18) diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

HANDLE SWITCH (MODEL H E18) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

HANDLE SWITCH (MODEL H E18) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

5711049500
ref: 1

GRIP,THROTTLE

€ 26.00

2

5742005A10
ref: 2

LEVER,BRAKE

€ 16.50

3

5743105A00
ref: 3

BOLT,LEVER

€ 8.50

4

0831921065
ref: 4

NUT

€ 2.50

5

3720006B00
ref: 5

SWITCH ASSY,R

€ 136.50

6

0211205455
ref: 6

SCREW, 5X45

€ 4.00

7

5746033700
ref: 7

SWITCH ASSY,STOP

€ 38.50

8

5746518601
ref: 8

CONTACT,SWITCH

€ 4.50

9

5748133010
ref: 9

COVER,FR BK TERMINAL BASE

€ 19.50

10

0912503105
ref: 10

SCREW

€ 2.50

11

5721149500
ref: 11

GRIP,L

€ 9.00

12

5762008A00
ref: 12

LEVER,CLUTCH (BLACK)

€ 31.50

13

5743105A00
ref: 13

BOLT,LEVER

€ 8.50

14

0831921065
ref: 14

NUT

€ 2.50

15

3740006B00
ref: 15

SWITCH ASSY, HANDLE LH

€ 130.00

16

0211205405
ref: 16

SCREW

€ 2.00
