Buy Suzuki GSXR Parts Online


REAR CALIPER

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

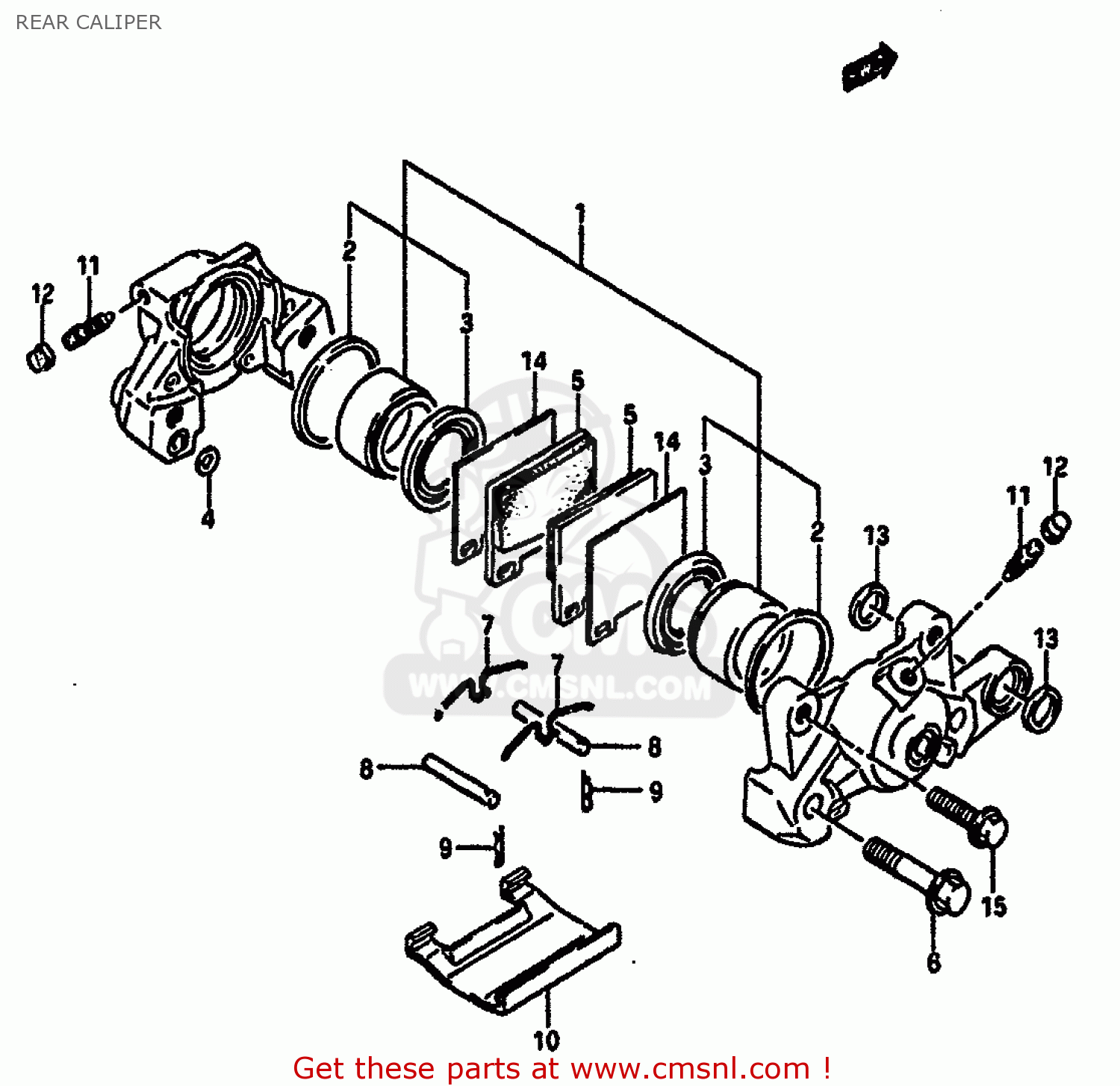

Rear caliper diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

REAR CALIPER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
REAR CALIPER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
REAR CALIPER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
0
6910027A10
ref: 0
MODEL F
CALIPER ASSEMBLY,REAR
€ 769.00
0
6910027A11
ref: 0
MODEL G/H
CALIPER ASSEMBLY,REAR
€ 769.00
1
6910027820
ref: 1
PISTON SET
€ 192.50
2
5910718410
ref: 2
SEAL,PISTON
5910718410
€ 17.00
3
5910816700
ref: 3
BOOT
5910816700
€ 16.50
4
6910734200
ref: 4
SEAL,JOINT
6910734200
€ 12.00
5
6913016740
ref: 5
PAD,BRAKE
6913016740
€ 49.50
6
5914516700
ref: 6
BOLT,HOUSING
5914516700
€ 8.00
7
5914316700
ref: 7
SPRING
5914316700
€ 7.50
8
6914145000
ref: 8
PIN,PAD
6914145000
€ 6.50
9
6914245000
ref: 9
CLIP,PAD PIN
6914245000
€ 4.50
10
5915116701
ref: 10
COVER
5915116701
€ 13.50
11
5912118410
ref: 11
BLEEDER
5912118410
€ 8.00
12
5912218410
ref: 12
CAP,BREATHER
5912218410
€ 6.00
13
6264704A00
ref: 13
SEAL,RR CUSHION ROD LWR
6264704A00
€ 4.50
14
5937133410
ref: 14
MODEL G/H
SHIM,PAD
5937133410
€ 15.00
15
0151708305
ref: 15
BOLT
€ 3.00
