TRANSMISSION

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

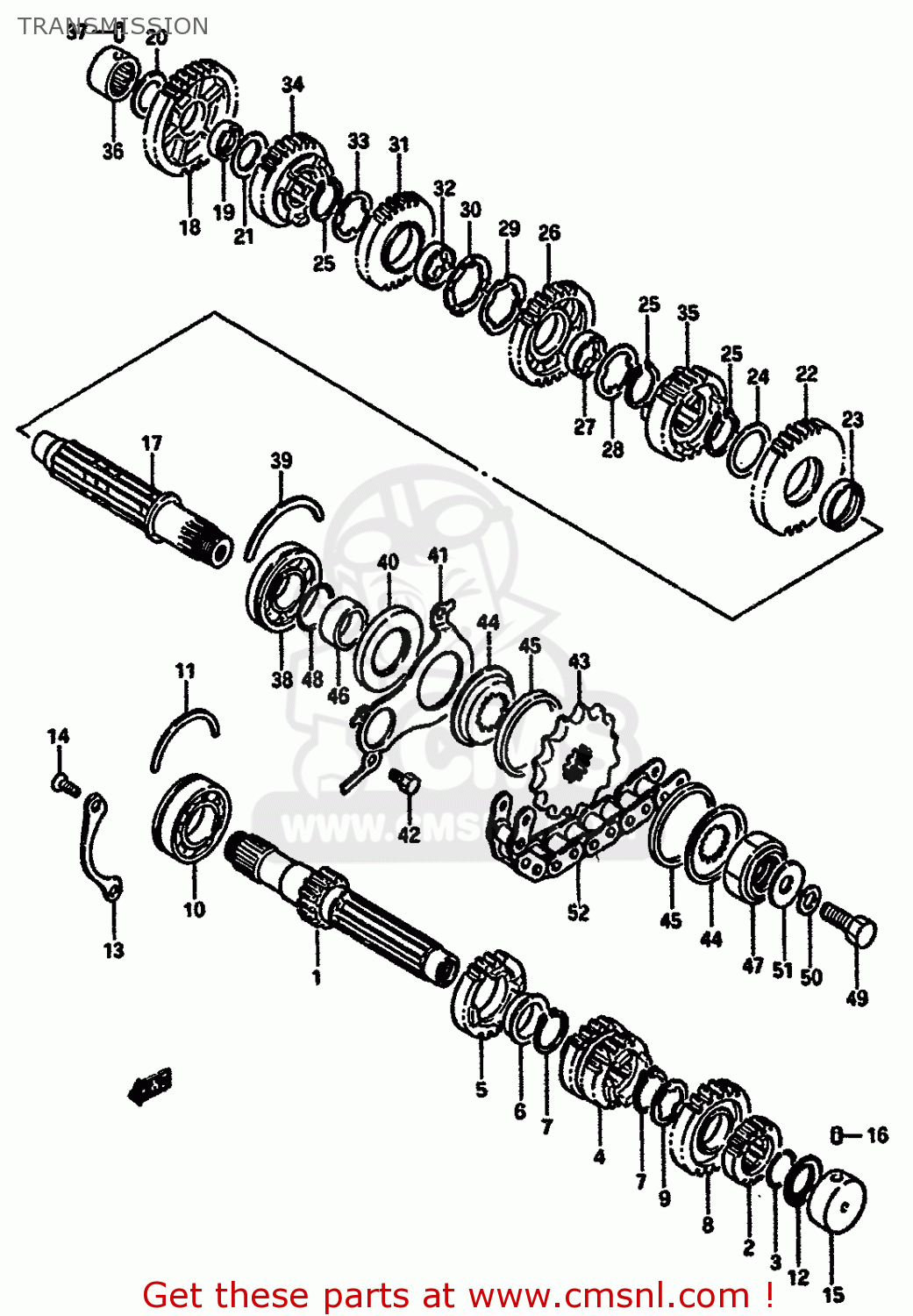

Transmission diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

TRANSMISSION GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2412127A01
ref: 1
SHAFT,COUNTER
€ 135.00
2
2422127A01
ref: 2
GEAR,2ND DRIVE(NT:16)
2422127A01
€ 93.00
3
0938025006
ref: 3
RING,SNAP
0938025006
€ 2.00
4
2423127A00
ref: 4
GEAR,3RD & 4TH DRIVE(NT:17/20)
2423127A00
€ 162.00
5
2425127A01
ref: 5
GEAR,5TH DRIVE(NT:22)
2425127A01
€ 91.00
6
0930125001
ref: 6
BUSHING
€ 12.50
7
0938025003
ref: 7
RING,SNAP
0938025003
€ 3.00
8
2426127A00
ref: 8
GEAR,SIXTH DRIVE
2426127A00
€ 119.50
9
0916725012
ref: 9
WASHER,LOCK
0916725012
€ 3.50
10
0926225051
ref: 10
BEARING(25X62X17)
0926225051
€ 59.50
11
0939062006
ref: 11
C-RING
0939062006
€ 5.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
13
2474127A00
ref: 13
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
14
0212206167
ref: 14
SCREW
0212206167
€ 2.00
15
0926320049
ref: 15
BEARING(20X34X17.5)
0926320049
€ 58.00
16
0422107129
ref: 16
PIN
0422107129
€ 1.50
17
2413127A02
ref: 17
SHAFT,DRIVE
2413127A02
€ 188.50
18
2431127A01
ref: 18
GEAR,1ST DRIVEN(NT:36)
2431127A01
€ 145.00
19
0930022008
ref: 19
BUSH(22X26X9)
0930022008
€ 10.50
20
0821120341
ref: 20
WASHER
0821120341
€ 2.00
21
0821122341
ref: 21
WASHER
0821122341
€ 3.00
22
2432127A01
ref: 22
GEAR,SECOND DRIVEN
€ 143.50
23
0930028001
ref: 23
BUSH(28X32X8)
0930028001
€ 11.50
24
0821128381
ref: 24
WASHER, THRUST
0821128381
€ 3.50
25
0833111289
ref: 25
CIRCLIP
€ 2.50
26
2433127A00
ref: 26
GEAR,3RD DRIVEN(NT:28)
2433127A00
€ 129.00
27
2433227A00
ref: 27
BUSH
2433227A00
€ 13.50
28
0916728001
ref: 28
WASHER,LOCK
0916728001
€ 3.00
29
0916728002
ref: 29
WASHER,LOCK
0916728002
€ 3.00
30
0916928001
ref: 30
WASHER
0916928001
€ 3.00
31
2434127A00
ref: 31
GEAR,FOURTH DRIVEN
€ 80.00
32
2433227A00
ref: 32
BUSH
2433227A00
€ 13.50
33
0916728001
ref: 33
WASHER,LOCK
0916728001
€ 3.00
34
2435127A00
ref: 34
GEAR,5TH DRIVEN(NT:27)
2435127A00
€ 117.00
35
2436127A00
ref: 35
GEAR,SIXTH DRIVEN
€ 114.00
36
0926320040
ref: 36
BEARING(20X34X20)
0926320040
€ 42.50
37
0422107209
ref: 37
PIN
0422107209
€ 1.50
38
0926225065
ref: 38
BALL BEARING 25X62X17
0926225065
€ 59.50
39
0939062006
ref: 39
C-RING
0939062006
€ 5.00
40
0928334005
ref: 40
SEAL,OIL(34X62X6)
0928334005
€ 14.50
41
2475127A00
ref: 41
RETAINER,DRIVESHAFT O
2475127A00
€ 8.00
42
0110706108
ref: 42
BOLT
€ 2.00
43
2751127A11
ref: 43
SPROCKET,ENGINE
2751127A11
€ 45.00
44
2751631301
ref: 44
HOLDER,SPROCKET DAMPER
2751631301
€ 3.50
45
2751731300
ref: 45
DAMPER,SPROCKET
2751731300
€ 14.00
46
0918025080
ref: 46
SPACER (25X34X16.1)
0918025080
€ 13.00
47
0915920004
ref: 47
NUT
0915920004
€ 12.00
48
0928025001
ref: 48
O RING(D:1,ID:24.5)
0928025001
€ 2.50
49
0110706166
ref: 49
BOLT
€ 2.00
50
0832131067
ref: 50
WASHER,LOCK
0832131067
€ 2.50
51
0821206222
ref: 51
WASHER
0821206222
€ 1.50
52-1
2760027A00106
ref: 52-1
MODEL F
CHAIN ASSEMBLY,DRIVE
€ 258.00
52-2
2760027A00110
ref: 52-2
MODEL G/H
CHAIN ASSEMBLY,DRIVE
€ 277.50
