FRONT FENDER

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

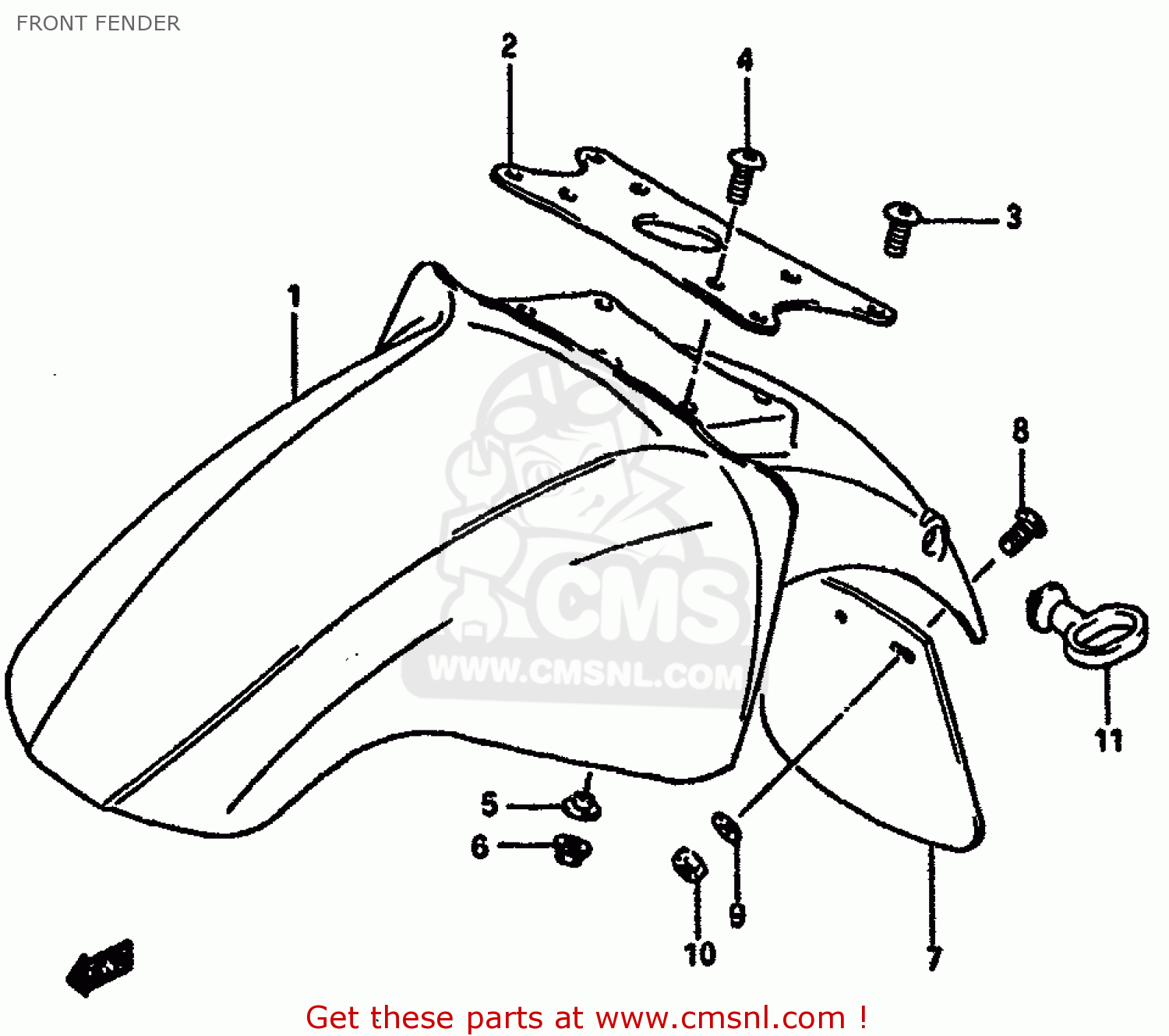

Front fender diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

FRONT FENDER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRONT FENDER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRONT FENDER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
5311127A20019
ref: 1-1
MODEL F/G
FENDER,FRONT
€ 207.50
1-2
5311127A2023Z
ref: 1-2
MODEL F/G
FENDER,FRONT
€ 207.50
1-3
5311128A00019
ref: 1-3
MODEL H
FENDER,FRONT (BLACK)
€ 201.50
1-4
5311128A0030H
ref: 1-4
MODEL H
FENDER,FRONT (WHITE)
€ 201.50
1-5
5311127A10019
ref: 1-5
MODEL F/G E15,E24
FENDER,FRONT (BLACK)
€ 207.50
1-6
5311127A1023Z
ref: 1-6
MODEL F/G E15,E24
FENDER,FRONT (BLUE)
€ 207.50
1-7
5311128A10019
ref: 1-7
MODEL H E15,E24
FENDER,FRONT (WHITE)
€ 201.50
1-8
5311128A1030H
ref: 1-8
MODEL H E15,E24
FENDER,FRONT (WHITE)
€ 201.50
1-9
5311128A40019
ref: 1-9
MODEL H E22
FENDER,FRONT (BLACK)
€ 201.50
1-10
5311128A4030H
ref: 1-10
MODEL H E22
FENDER,FRONT (WHITE)
€ 201.50
2
5311427A00
ref: 2
BRACE,FRONT FENDER
5311427A00
€ 23.00
3
0913906027
ref: 3
SCREW(6X12)
0913906027
€ 3.00
4
0913905025
ref: 4
SCREW(5X14)
0913905025
€ 2.00
5
0916905008
ref: 5
WASHER
0916905008
€ 3.00
6
0831931056
ref: 6
NUT
0831931056
€ 3.00
7
5331125600
ref: 7
E15,E24
FLAP,MUD
5331125600
€ 9.00
8
0214205128
ref: 8
E15,E24
SCREW
0214205128
€ 1.50
9
0916005017
ref: 9
E15,E24
WASHER (5.5X16X1.2)
0916005017
€ 2.50
10
0831626056
ref: 10
E15,E24
NUT
€ 2.00
11
5862121203A
ref: 11
GUIDE,CABLE
€ 7.50
