Buy Suzuki GSXR Parts Online


FRONT WHEEL (MODEL H)

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

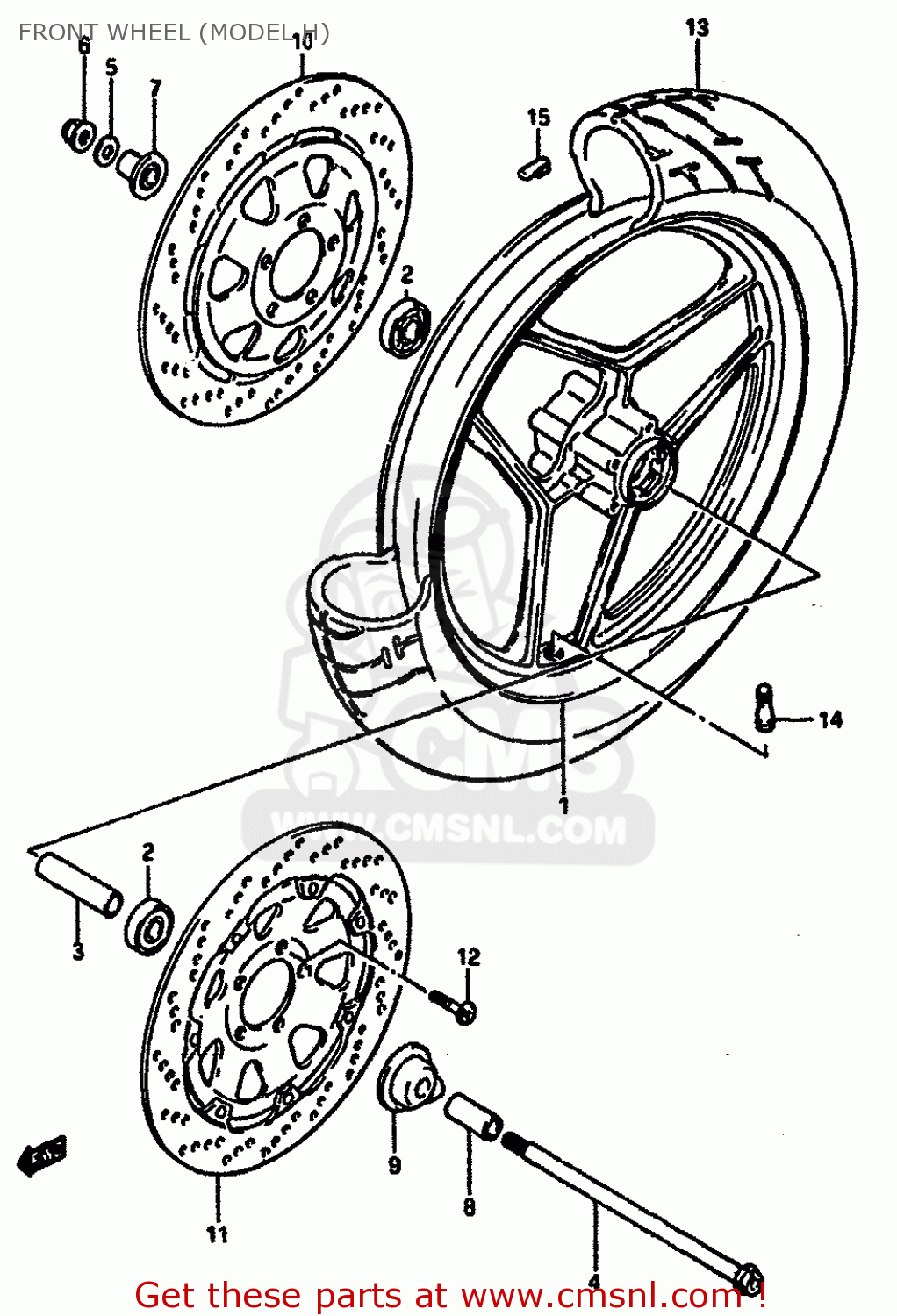

Front wheel (model h) diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

FRONT WHEEL (MODEL H) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRONT WHEEL (MODEL H) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
FRONT WHEEL (MODEL H) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
5411127A00291
ref: 1
WHEEL,FRONT (2.50X18)
5411127A00291
€ 806.00
2
0926217034
ref: 2
BEARING(17X42X13)
0926217034
€ 44.00
3
0918017089
ref: 3
SPACER (17.3X24X78)
0918017089
€ 14.00
4
5471127A30
ref: 4
AXLE,FR
€ 66.00
5
0832211168
ref: 5
WASHER
0832211168
€ 2.00
6
0915916013
ref: 6
NUT
0915916013
€ 6.50
7
5474027A10
ref: 7
SPACER,FR HUB,R
5474027A10
€ 14.00
8
5474127A20
ref: 8
SPACER,FR AXLE
5474127A20
€ 9.00
9
5460027A10
ref: 9
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 127.00
10
5921027A00
ref: 10
DISC,BRAKE
€ 308.50
11
5922027A00
ref: 11
DISC,BRAKE
€ 368.50
12
0910608062
ref: 12
BOLT
0910608062
€ 6.00
13
5510028A00
ref: 13
TIRE,FRONT
€ 0.00
14
4313075150
ref: 14
VALVE,TIRE
€ 14.50
15-1
5541100A00
ref: 15-1
BALANCER,WHEEL (10G)
€ 6.50
15-2
5541200A00
ref: 15-2
BALANCER,WHEEL
€ 7.00
15-3
5541300A00
ref: 15-3
BALANCER,WHEEL
€ 4.00
