SPEEDOMETER

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

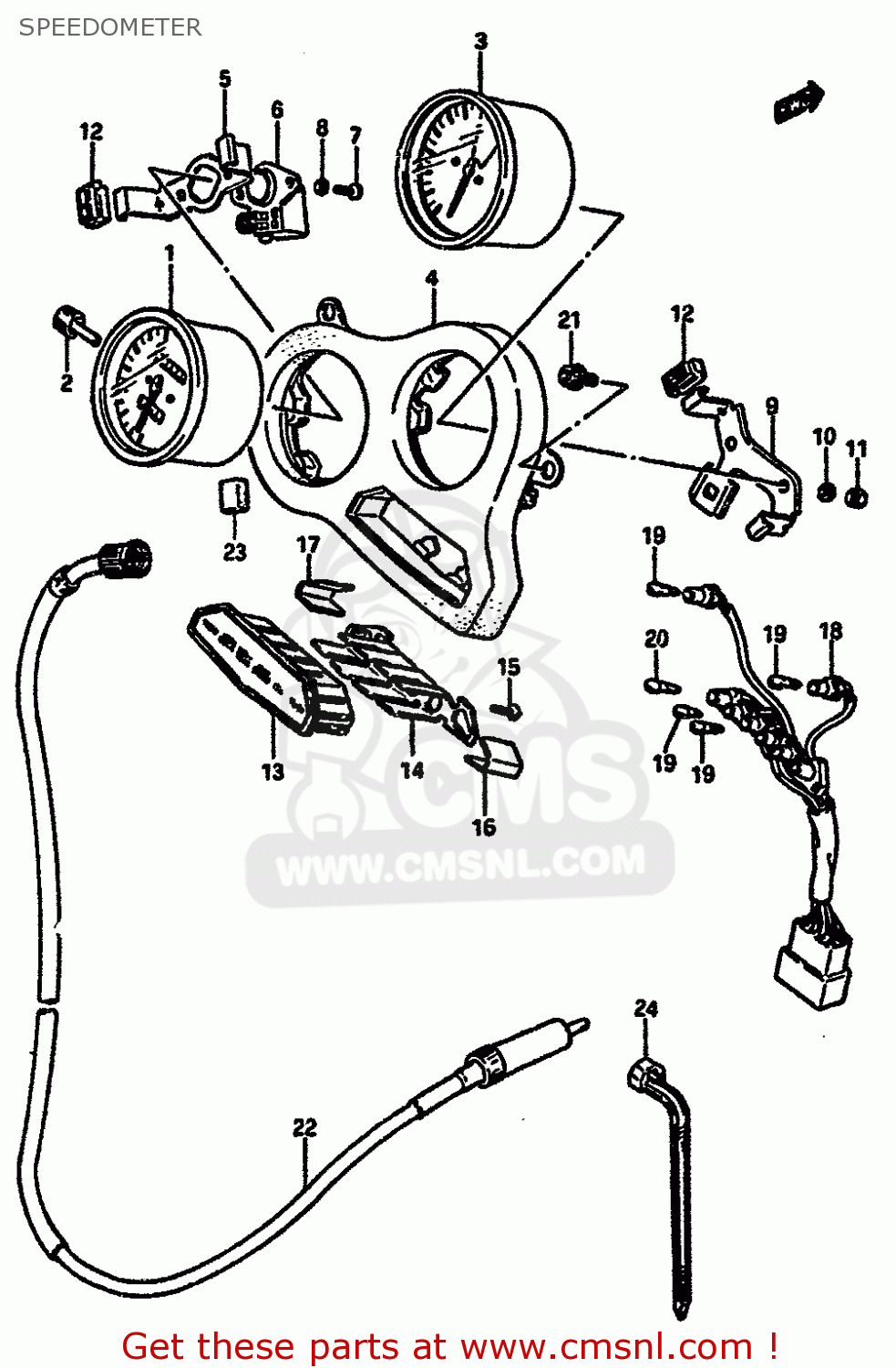

Speedometer diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

SPEEDOMETER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
SPEEDOMETER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
SPEEDOMETER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3411027A10
ref: 1-1
SPEEDOMETER (KILO)
3411027A10
€ 361.50
1-2
3411027A20
ref: 1-2
SPEEDOMETER (MILE/KILO)
€ 360.00
2
3412427A00
ref: 2
KNOB,TRIP
3412427A00
€ 7.50
3-1
3421027A00
ref: 3-1
TACHOMETER
3421027A00
€ 458.50
3-2
3421027A60
ref: 3-2
MODEL G/H E18
TACHOMETER (R/MIN)
€ 458.50
3-2
3421027A80
ref: 3-2
E24
TACHMETER (RPM)
€ 458.50
4-1
3495027A10
ref: 4-1
MODEL F
BRACKET,METER SUB ASSEMBLY
3495027A10
€ 66.00
4-2
3495027A11
ref: 4-2
MODEL G/H
BRACKET, METER
3495027A11
€ 61.50
5
3411127A00
ref: 5
PLATE,SPEEDOMETER
3411127A00
€ 19.00
6
3413127A00
ref: 6
BOX,METER GEAR
3413127A00
€ 116.50
7
0211204105
ref: 7
SCREW
€ 2.00
8
0832121045
ref: 8
LOCK WASHER
€ 2.00
9
3421127A00
ref: 9
PLATE,TACHOMETER
3421127A00
€ 24.50
10
3418127A00
ref: 10
WASHER
€ 2.00
11
0831021035
ref: 11
NUT
0831021035
€ 1.50
12
3418927A00
ref: 12
CUSHION
3418927A00
€ 6.00
13-1
3638127A10
ref: 13-1
CASE,PILOT LAMP
€ 45.00
13-2
3638127A40
ref: 13-2
E15,E16,E18,E22 MODE
CASE, PILOT LAMP
€ 45.00
13-3
3638127A70
ref: 13-3
E17
CASE, PILOT LAMP
€ 0.00
14
3638227A00
ref: 14
PLATE,PILOT LAMP
3638227A00
€ 18.50
15
3638727A00
ref: 15
SCREW
€ 2.00
16
3638327A00
ref: 16
PLATE,TURN,R
3638327A00
€ 14.50
17
3638427A00
ref: 17
PLATE,TURN,L
3638427A00
€ 9.50
18-1
3417027A10
ref: 18-1
SOCKET
€ 92.50
18-2
3417027A40
ref: 18-2
E15,E16,E18,E22 MODE
SOCKET, METER
3417027A40
€ 92.50
19-1
0947112085
ref: 19-1
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
19-2
0947112085
ref: 19-2
E15,E16,E18,E22 MODE
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
20
0947112100
ref: 20
BULB(12V1.7W,WB372,T7)
0947112100
€ 2.00
21
0712006125
ref: 21
BOLT
€ 3.50
22
3491027A01
ref: 22
CABLE ASSEMBLY,SPEEDOMETER
3491027A01
€ 25.50
23
3419127A00
ref: 23
CUSHION,METER
€ 2.00
24
0940711401
ref: 24
CLAMP(L:95)
0940711401
€ 2.50
