CARBURETOR

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

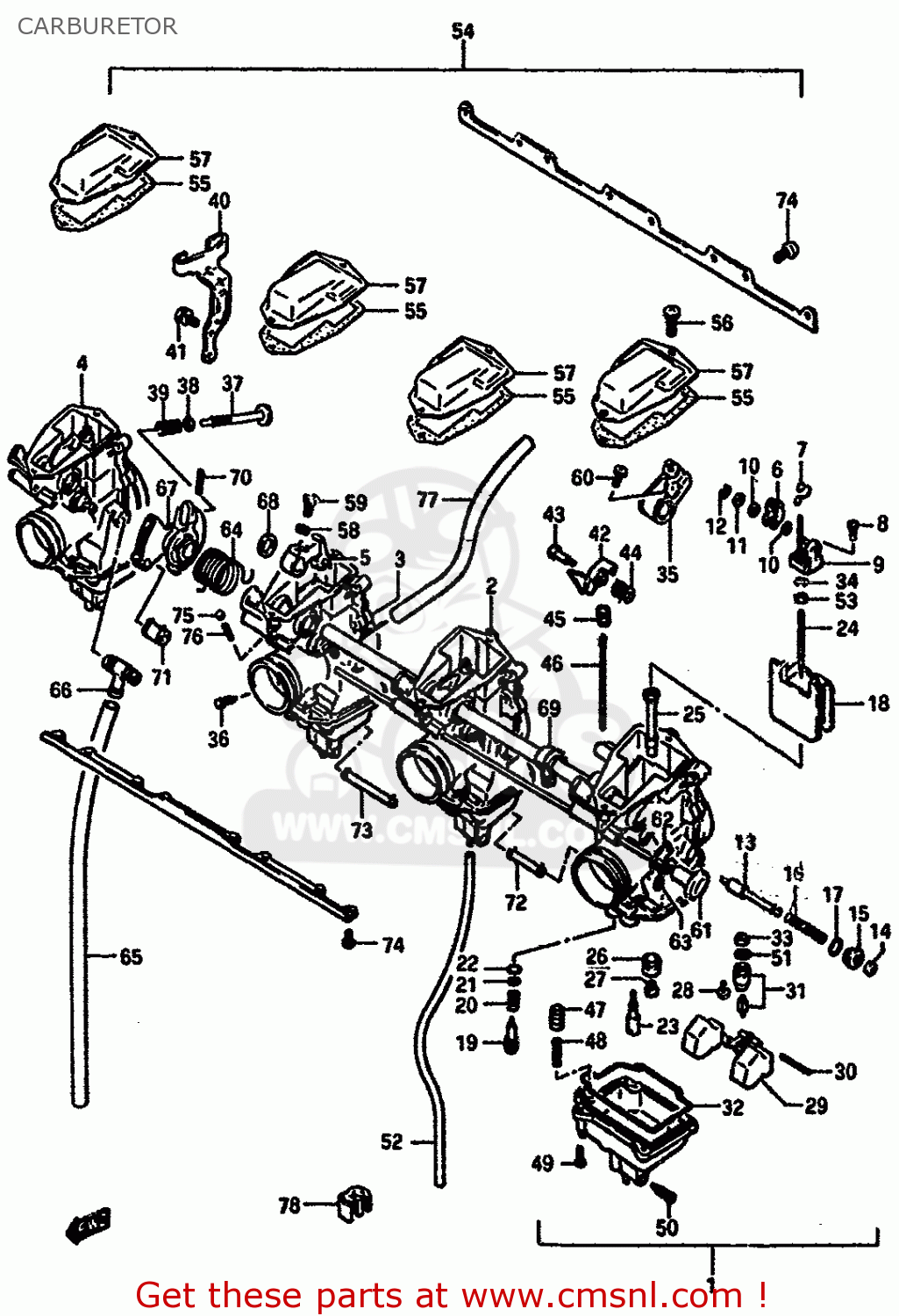

Carburetor diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

CARBURETOR GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
CARBURETOR GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1320127A01
ref: 1-1
MODEL F TO 13201-27A
CARBURETOR ASSY,LH
€ 519.50
1-2
1320127A02
ref: 1-2
MODEL G
CARBURETOR ASSY, LH
1320127A02
€ 519.50
1-3
1320127B20
ref: 1-3
MODEL H
CARBURETOR ASSY,LH
€ 535.50
2-1
1320227A01
ref: 2-1
MODEL F TO 13202-27A
CARBURETOR ASSY,ML
€ 535.50
2-2
1320227A02
ref: 2-2
MODEL G
CARBURETOR ASSY, ML
1320227A02
€ 535.50
2-3
1320227B20
ref: 2-3
MODEL H
CARBURETOR ASSY,ML
€ 535.50
3-1
1320327A01
ref: 3-1
MODEL F TO 13203-27A
CARBURETOR ASSY,MR
€ 628.00
3-2
1320327A02
ref: 3-2
MODEL G
CARBURETOR ASSY, MR
1320327A02
€ 628.00
3-3
1320327B20
ref: 3-3
MODEL H
CARBURETOR ASSY,MR
€ 628.00
4-1
1320427A01
ref: 4-1
MODEL F TO 13204-27A
CARBURETOR ASSY,RH
1320427A01
€ 628.00
4-2
1320427A02
ref: 4-2
MODEL G
CARBURETOR ASSY, RH
€ 628.00
4-3
1320427B20
ref: 4-3
MODEL H
CARBURETOR ASSY,RH
€ 628.00
5
1354114A00
ref: 5
MR
ARM,THROTTLE
1354114A00
€ 34.50
6-1
1344714A00
ref: 6-1
MODEL F/G
PLATE
1344714A00
€ 16.50
6-2
1344727B10
ref: 6-2
MODEL H
PLATE
€ 0.00
7-1
1326827A00
ref: 7-1
MODEL F
SPRING
€ 4.00
7-2
1326827A02
ref: 7-2
MODEL G
SPRING
€ 9.50
7-3
1326827B10
ref: 7-3
MODEL H
SPRING
€ 0.00
8
1356614A00
ref: 8
SCREW
€ 2.50
9-1
1339827A00
ref: 9-1
MODEL F
CONNECTOR
€ 18.00
9-2
1339827A02
ref: 9-2
MODEL G/H
CONNECTOR
1339827A02
€ 18.00
10
1344514A00
ref: 10
GASKET (NAS)
1344514A00
€ 3.00
11
1344914A00
ref: 11
WASHER
€ 2.00
12
1329849000
ref: 12
E-RING
€ 2.00
13
1341105300
ref: 13
PLUNGER
1341105300
€ 23.50
14
1368231210
ref: 14
CAP,STARTER VALVE
1368231210
€ 5.00
15
1341844080
ref: 15
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
16
1341743010
ref: 16
SPRING
1341743010
€ 3.50
17
1327847090
ref: 17
O RING
1327847090
€ 2.00
18-1
1355127A00
ref: 18-1
MODEL F
VALVE,PISTON (CA:1.5)
€ 126.00
18-2
1355127A12
ref: 18-2
MODEL G/H
VALVE, PISTON
€ 126.00
19
1327947070
ref: 19
1/2
SCREW,PILOT
1327947070
€ 11.50
20
1326847070
ref: 20
SPRING
1326847070
€ 5.00
21
1327744080
ref: 21
GASKET
€ 2.00
22
1329529900
ref: 22
FROM 13278-44080
O RING,PILOT AIR SCREW
1329529900
€ 4.00
23
0949232003
ref: 23
JET,PILOT (32.5)
€ 13.50
24
1338327A00
ref: 24
6DP2-3
NEEDLE,JET
1338327A00
€ 16.50
25
0949400496
ref: 25
JET,NEEDLE(P-5)
0949400496
€ 24.00
26
1333113A00
ref: 26
RING,MAIN JET FIXING
1333113A00
€ 5.50
27
0949197003
ref: 27
JET,MAIN(97.5)
0949197003
€ 8.50
28
1360243410
ref: 28
SCREW
1360243410
€ 2.50
29-1
1325227A00
ref: 29-1
MODEL F/G
FLOAT
€ 27.00
29-2
1325028A00
ref: 29-2
MODEL H
FLOAT
1325028A00
€ 33.00
30
1325492311
ref: 30
PIN,FLOAT
1325492311
€ 2.00
31
1337044500
ref: 31
FROM 13370-27A00
VALVE ASSY,NEEDLE
1337044500
€ 40.50
32
1325127A00
ref: 32
O RING,FLOAT CHAMBER
1325127A00
€ 9.00
33
1337665010
ref: 33
FILTER
€ 6.50
34
1339410010
ref: 34
CLIP
1339410010
€ 4.50
35
1354127A00
ref: 35
LH,ML,RH
LEVER ASSY
1354127A00
€ 44.00
36
1360527A02
ref: 36
SCREW
1360527A02
€ 7.50
37
1326701400
ref: 37
MR
SCREW,THROTTLE STOP
1326701400
€ 10.00
38
1342738300
ref: 38
MR
WASHER
1342738300
€ 1.50
39
1326849310
ref: 39
MR
SPRING
€ 4.50
40
1362127A00
ref: 40
MR
BRACKET
1362127A00
€ 18.50
41
1360327A00
ref: 41
MR
SCREW
€ 1.50
42
1349027A00
ref: 42
LH,MR
LEVER
€ 9.50
43
1361314A00
ref: 43
LH,MR
BOLT
1361314A00
€ 8.00
44
1349427A00
ref: 44
LH,MR
SPRING,PLUNGER
1349427A00
€ 6.00
45
1349944500
ref: 45
LH,MR
BOOT, ACCELE PUMP ROD
1349944500
€ 11.00
46
1348727A00
ref: 46
LH,MR
ROD
1348727A00
€ 9.50
47
1349327A00
ref: 47
LH,MR
PLUNGER
1349327A00
€ 9.00
48
1327109400
ref: 48
LH,MR
SPRING
1327109400
€ 4.50
49
1360227A10
ref: 49
SCREW
€ 1.50
50
1324713A00
ref: 50
SCREW,DRAIN
1324713A00
€ 5.50
51-1
6626399050
ref: 51-1
MODEL F/G
O RING
6626399050
€ 6.00
51-2
1337444080
ref: 51-2
MODEL H
O-RING,NEEDLE VALVE
1337444080
€ 6.00
52
1368027A30
ref: 52
MODEL F/G
HOSE SET (3X5X525)
€ 15.50
53
1338247010
ref: 53
WASHER,JET NEEDLE
1338247010
€ 3.00
54-1
1321027A00
ref: 54-1
MODEL F
FLANG SET
€ 246.50
54-2
1321027A02
ref: 54-2
MODEL G
FLANG SET
€ 0.00
54-3
1321027B10
ref: 54-3
MODEL H
FLANG SET
€ 0.00
55
1326627A00
ref: 55
GASKET,CARBURETOR TOP (NAS)
1326627A00
€ 6.00
56
1360127A00
ref: 56
SCREW
€ 2.00
57
1326127A00
ref: 57
COVER,CARBURETOR,TOP
€ 14.50
58
1361445010
ref: 58
WASHER
€ 2.50
59
1361343010
ref: 59
BOLT
€ 1.50
60
1337184100
ref: 60
SCREW
€ 2.50
61
1341027A00
ref: 61
SHAFT ASSY
€ 36.00
62
1342227A00
ref: 62
LEVER
1342227A00
€ 6.50
63
1360509300
ref: 63
SCREW,THROTTLE ADJUST
1360509300
€ 3.50
64-1
1357327A00
ref: 64-1
MODEL F
SPRING
€ 8.00
64-2
1357327A02
ref: 64-2
MODEL G
SPRING
€ 8.00
64-3
1357327B10
ref: 64-3
MODEL H
SPRING
€ 0.00
65
1368427A00
ref: 65
HOSE
1368427A00
€ 18.00
66
1368547070
ref: 66
NIPPLE
1368547070
€ 25.00
67
1355527A00
ref: 67
LEVER ASSY
1355527A00
€ 74.50
68
1357438200
ref: 68
RING,THROTTLE SHAFT
1357438200
€ 4.00
69-1
1355527A00
ref: 69-1
MODEL F/G
LEVER ASSY
1355527A00
€ 74.50
69-2
1355327B10
ref: 69-2
MODEL H
SHAFT ASSY
€ 0.00
70
1356347070
ref: 70
PIN,THROTTLE SHAFT
€ 0.00
71
1368027A00
ref: 71
HOSE SET (3X5X18)
€ 6.00
72
1368027A10
ref: 72
HOSE SET (3X5X60)
€ 9.50
73
1368027A20
ref: 73
HOSE SET (3X5X72)
€ 9.50
74
0211205128
ref: 74
SCREW
€ 2.50
75
1359693010
ref: 75
BALL,CARBURETOR
1359693010
€ 3.50
76
1343443010
ref: 76
SPRING
1343443010
€ 6.50
77
1368306A20
ref: 77
MODEL H
HOSE
€ 6.50
78
0940800066
ref: 78
MODEL F/G
CLIP
0940800066
€ 1.50
