CYLINDER HEAD COVER

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

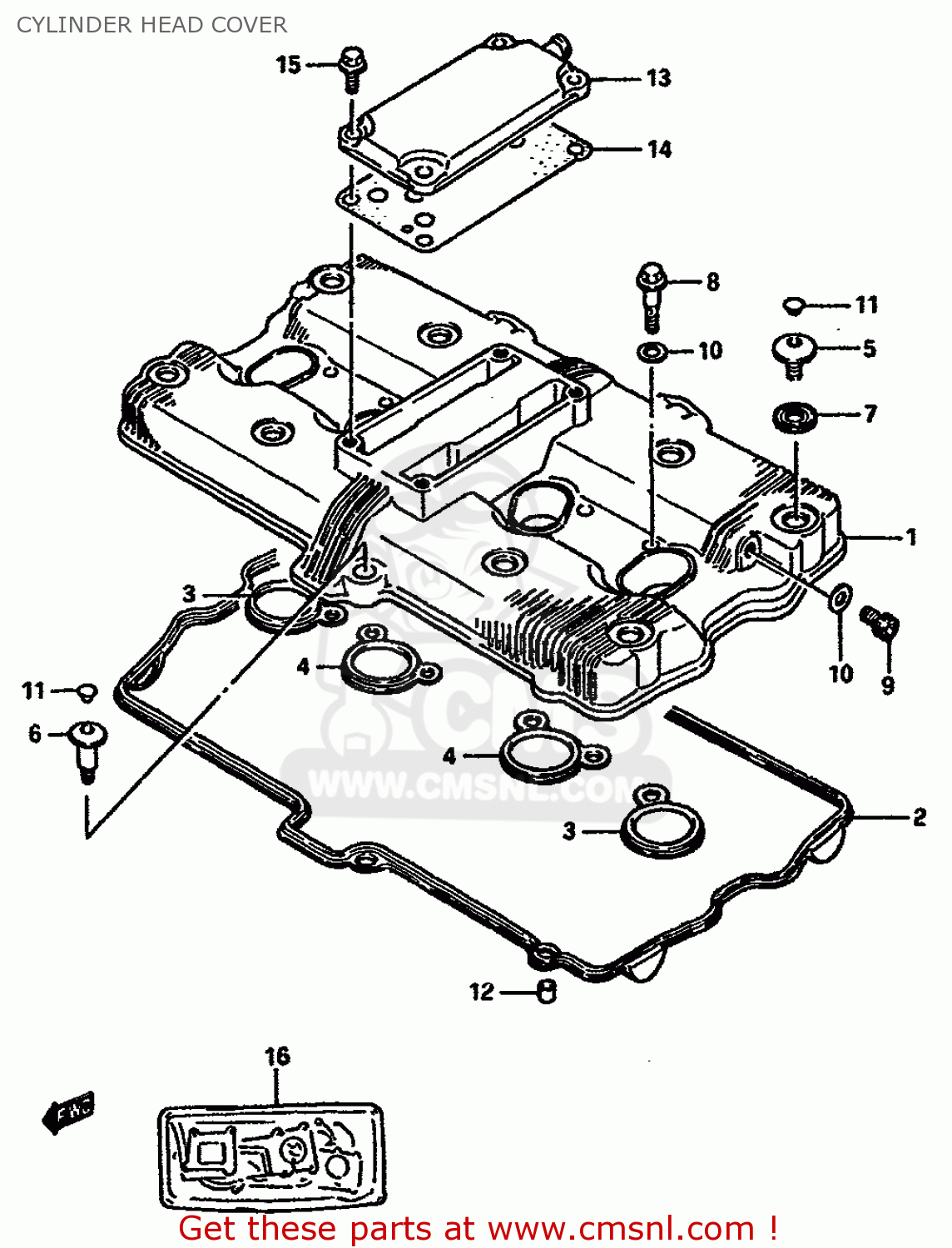

Cylinder head cover diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

CYLINDER HEAD COVER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD COVER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD COVER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1117127A04
ref: 1
FROM 11171-27A03
COVER,CYLINDER HEAD
€ 448.50
2
1117327A01
ref: 2
GASKET,CYLINDER HEAD COVER (NAS)
1117327A01
€ 34.00
3
1117827A00
ref: 3
GASKET (NAS)
1117827A00
€ 5.50
4
1117927A01
ref: 4
GASKET,HEAD COVER NO.3 (NAS)
1117927A01
€ 7.50
5
0910607009
ref: 5
BOLT(7X17.5)
0910607009
€ 4.50
6
0910607010
ref: 6
BOLT(7X31)
0910607010
€ 4.50
7
0916111006
ref: 7
WASHER
0916111006
€ 4.50
8
0936008009
ref: 8
BOLT,UNION 8X35
0936008009
€ 26.50
9
0711008125
ref: 9
PLUG, HEAD COVER
€ 2.50
10
0916808008
ref: 10
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
11
0925006008
ref: 11
CAP(OD:10)
0925006008
€ 3.00
12
0422108129
ref: 12
PIN
0422108129
€ 2.00
13
1117627A00
ref: 13
COVER,BREATHER
€ 31.50
14
1117727A00
ref: 14
GASKET (NAS)
1117727A00
€ 11.00
15
0151706205
ref: 15
BOLT
€ 2.50
16
1140027855
ref: 16
OPT,FROM 11400-27853
GASKET SET (MCA)
1140027855
€ 283.00
