REAR CUSHION LEVER

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

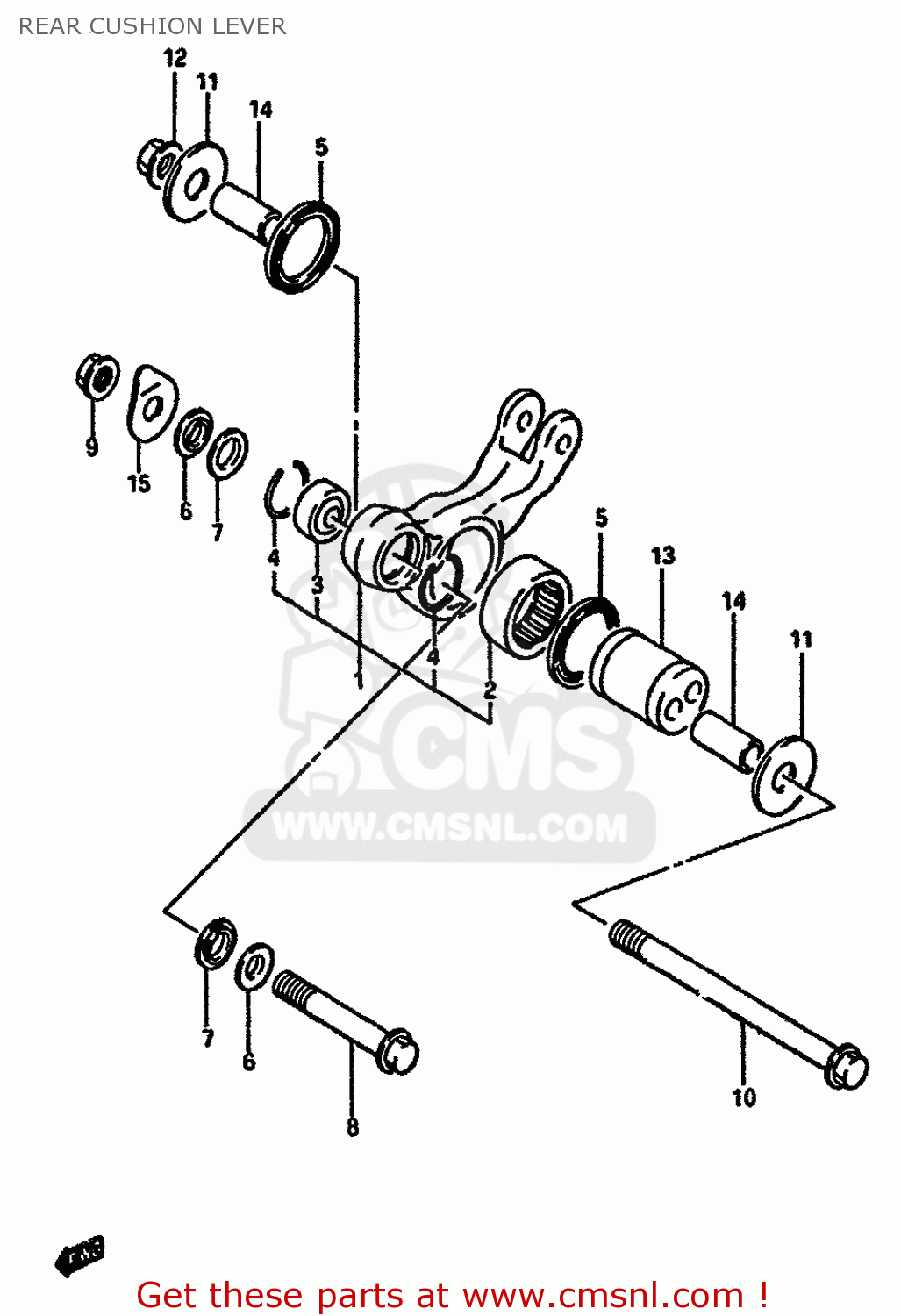

Rear cushion lever diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

REAR CUSHION LEVER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

REAR CUSHION LEVER GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

6260027821
ref: 1

LEVER SET,REAR CUSHION

€ 230.00

2

0926335020
ref: 2

BEARING(35X45X20)

€ 30.00

3

0926912004
ref: 3

BEARING(12X26X16)

€ 65.00

4

6265705A00
ref: 4

RING,STOPPER

€ 2.50

5

6262402B00
ref: 5

SEAL,INNER DUST

€ 11.50

6

6231605A01
ref: 6

SPACER,RR CUSHION ROD

€ 8.00

7

6264705A00
ref: 7

SEAL,RR CUSHION ROD DUST

€ 2.50

8

6266827A00
ref: 8

BOLT,RR CUSHION LEVER FR

€ 13.50

9

0831931128
ref: 9

NUT 12MM

€ 4.00

10

6262127A20
ref: 10

SHAFT

€ 19.50

11

0916012076
ref: 11

WASHER(12X40X2.5)

€ 5.50

12

0831931128
ref: 12

NUT 12MM

€ 4.00

13

6262327A21
ref: 13

SPACER,REAR CUSHION ECCENTRIC

€ 66.50

14

6264627A20
ref: 14

SPACER

€ 14.50

15

6266727A00
ref: 15

SHIM,REAR CUSHION LEVER

€ 4.00
