SEAT (MODEL F)

GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

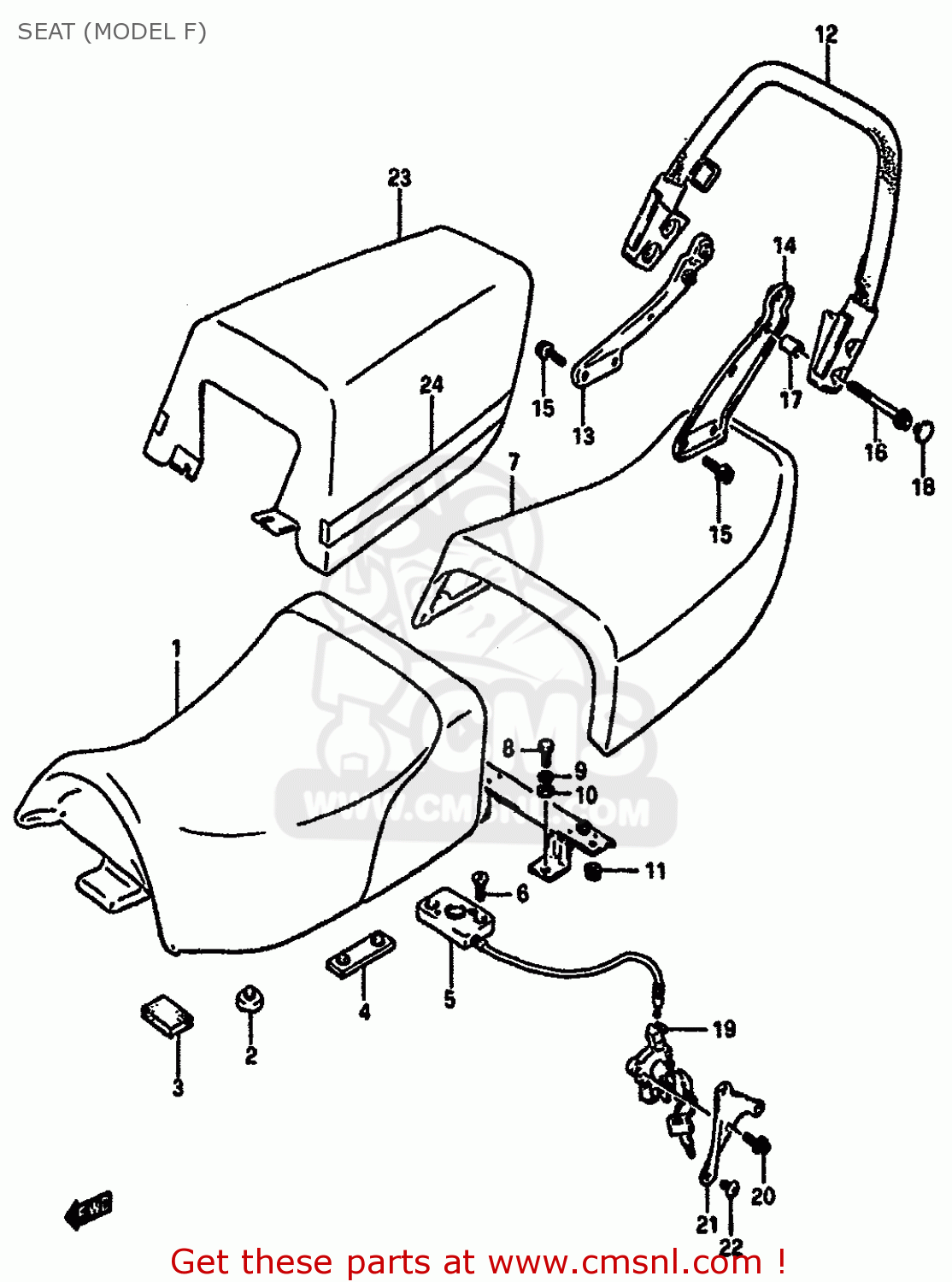

Seat (model f) diagram GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)

SEAT (MODEL F) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL F) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
SEAT (MODEL F) GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4510027A0054G
ref: 1-1
FOR 7GF
SEAT ASSY (BLUE)
€ 262.00
1-2
4510027A0040K
ref: 1-2
FOR 7JK
SEAT ASSY (RED)
€ 0.00
2
0932110002
ref: 2
CUSHION(11.5X22X20)
0932110002
€ 2.00
3
4525515510
ref: 3
CUSHION,TOOL(40X30X15)
4525515510
€ 4.00
4
0932108009
ref: 4
CUSHION
0932108009
€ 4.00
5
4522027A01
ref: 5
BRACKET,SEAT SUPPORT,R
4522027A01
€ 20.50
6
0212206255
ref: 6
SCREW
€ 2.00
7-1
4530027A1054G
ref: 7-1
FOR 7GF
SEAT ASSY
€ 259.50
7-2
4530027A1040K
ref: 7-2
FOR 7JK
SEAT ASSY,PILLION (RED)
€ 0.00
7-3
4530027A0054G
ref: 7-3
E2,E4,E16,E18,E21,E2
SEAT ASSY,PILLION (BLUE)
4530027A0054G
€ 259.50
7-4
4530027A004DK
ref: 7-4
E2,E4,E16,E18,E21,E2
SEAT ASSY,PILLION 9RED)
€ 259.50
7-5
4530027A2054G
ref: 7-5
E34,FOR 7GF
SEAT ASSY,PILLION (BLUE)
€ 259.50
7-6
4530027A204DK
ref: 7-6
E34,FOR 7JK
SEAT ASSY,PILLION (RED)
€ 259.50
8
0110706166
ref: 8
BOLT
€ 2.00
9
0832121066
ref: 9
WASHER,LOCK
0832121066
€ 2.00
10
0916006019
ref: 10
WASHER(6.5X16X1.2)
0916006019
€ 1.50
11
0831626066
ref: 11
NUT
€ 2.00
12-1
4621027A00
ref: 12-1
HANDLE,PILLION RIDER
€ 99.50
12-2
4621027A01
ref: 12-2
E22
HANDLE,PILLION RIDER
4621027A01
€ 99.50
13
4624027A00
ref: 13
PLATE,PILLION HANDLE,R
4624027A00
€ 10.00
14
4625027A00
ref: 14
PLATE COMP,PILLION HANDLE
4625027A00
€ 9.00
15
0712006168
ref: 15
BOLT
€ 2.50
16
0910608061
ref: 16
BOLT
€ 4.50
17
0918008125
ref: 17
SPACER (8.6X13.8X21.5)
0918008125
€ 6.50
18
0925006008
ref: 18
CAP(OD:10)
0925006008
€ 3.00
19
9570027A00KEY
ref: 19
LOCK SET
9570027A00KEY
€ 65.50
20
0712006205
ref: 20
PLUG ,6X20
0712006205
€ 3.50
21
4528527A00
ref: 21
BRACKET,SEAT LOCK
4528527A00
€ 3.50
22
0214206125
ref: 22
SCREW 6X12
0214206125
€ 2.00
23-1
455502782014L
ref: 23-1
OPT
BOX SET
€ 173.50
23-2
4555027820019
ref: 23-2
OPT
BOX SET,SEAT TAIL (BLACK)
€ 173.50
24-1
6865027A1008L
ref: 24-1
OPT,FOR 14L
TAPE SET,SEAT TAIL BOX
€ 17.00
24-2
6865027A10064
ref: 24-2
OPT,FOR 019
TAPE SET,SEAT TAIL BOX
€ 14.50
