AIR CLEANER

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

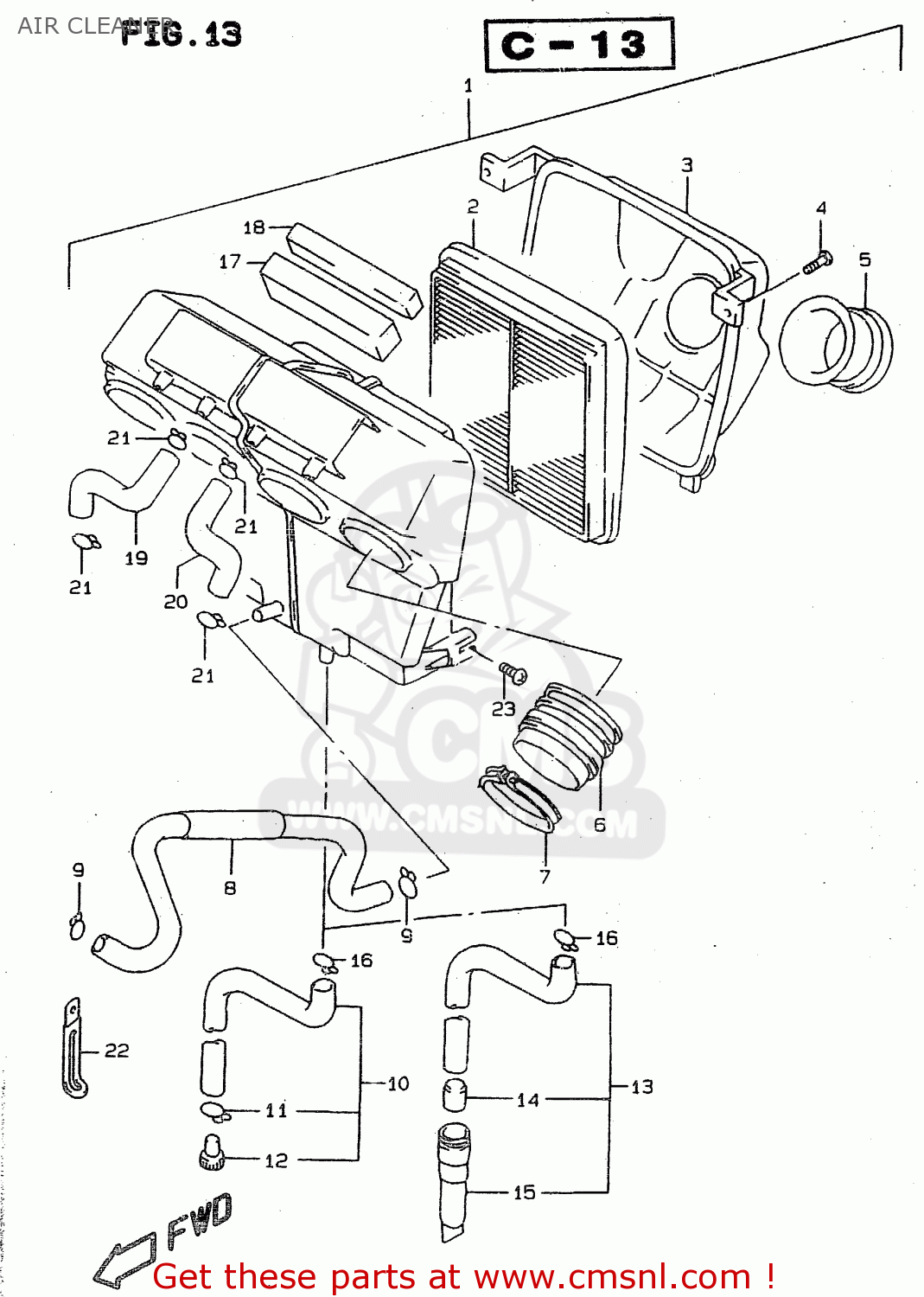

Air cleaner diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

AIR CLEANER RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

AIR CLEANER RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

1370031E01
ref: 1-1
MODEL R/S

CLEANER ASSEMBLY,AIR

€ 317.00

1-2

1370031E02
ref: 1-2
MODEL T/V/W

CLEANER ASSY,AIR

€ 317.00

1-3

1370031E11
ref: 1-3
E18, E39, MODEL R/S

CLEANER ASSY, AIR

€ 0.00

1-4

1370031E12
ref: 1-4
E18, E39, MODEL T/V/

CLEANER ASSY, AIR

€ 0.00

2

1378021E00
ref: 2

FILTER,AIR

€ 33.50

3

1374021E00
ref: 3

CAP,AIR CLEANER

€ 39.50

4

0214205167
ref: 4

SCREW

€ 1.50

5-1

1389117E00
ref: 5-1

TUBE,INLET

€ 22.50

5-2

1389131E10
ref: 5-2
E18, E39

TUBE,INLET

€ 22.00

6

1388131E00
ref: 6

TUBE,OUTLET

€ 22.50

7

0940258208
ref: 7

CLAMP

€ 5.50

8

1385021E00
ref: 8

TUBE,BREATHER

€ 38.50

9

0940116401
ref: 9
<-13824-48B10

CLIP

€ 3.00

10

1387021458
ref: 10
MODEL R

TUBE,DRAIN

€ 23.50

11

0940111101
ref: 11
MODEL R

CLIP

€ 2.50

12

1387738A00
ref: 12
MODEL R

STOPPER,DRAIN

€ 3.50

13

1387021628
ref: 13
MODEL S/T/V/W

TUBE,DRAIN

€ 23.50

14

1378900020
ref: 14
MODEL S/T/V/W

FILTER,DRAIN

€ 2.00

15

1387200A00010
ref: 15
MODEL S/T/V/W

CAP,DRAIN

€ 7.50

16

0940113409
ref: 16

CLIP

€ 2.50

17

1378321E01
ref: 17

FILTER,CARB AIR

€ 10.50

18

1378421E01
ref: 18

FILTER,AIR NO.2

€ 9.50

19

1385521E00
ref: 19

TUBE,CARBURETOR AIR,R

€ 16.50

20

1385621E00
ref: 20

TUBE,CARBURETOR AIR,LEFT

€ 18.00

21

0940116401
ref: 21
<-13824-48B10

CLIP

€ 3.00

22

0940406433
ref: 22

CLAMP(L:80)

€ 3.00

23

0214206123
ref: 23

SCREW 6X12

€ 2.00
