FUEL TANK (MODEL T)

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

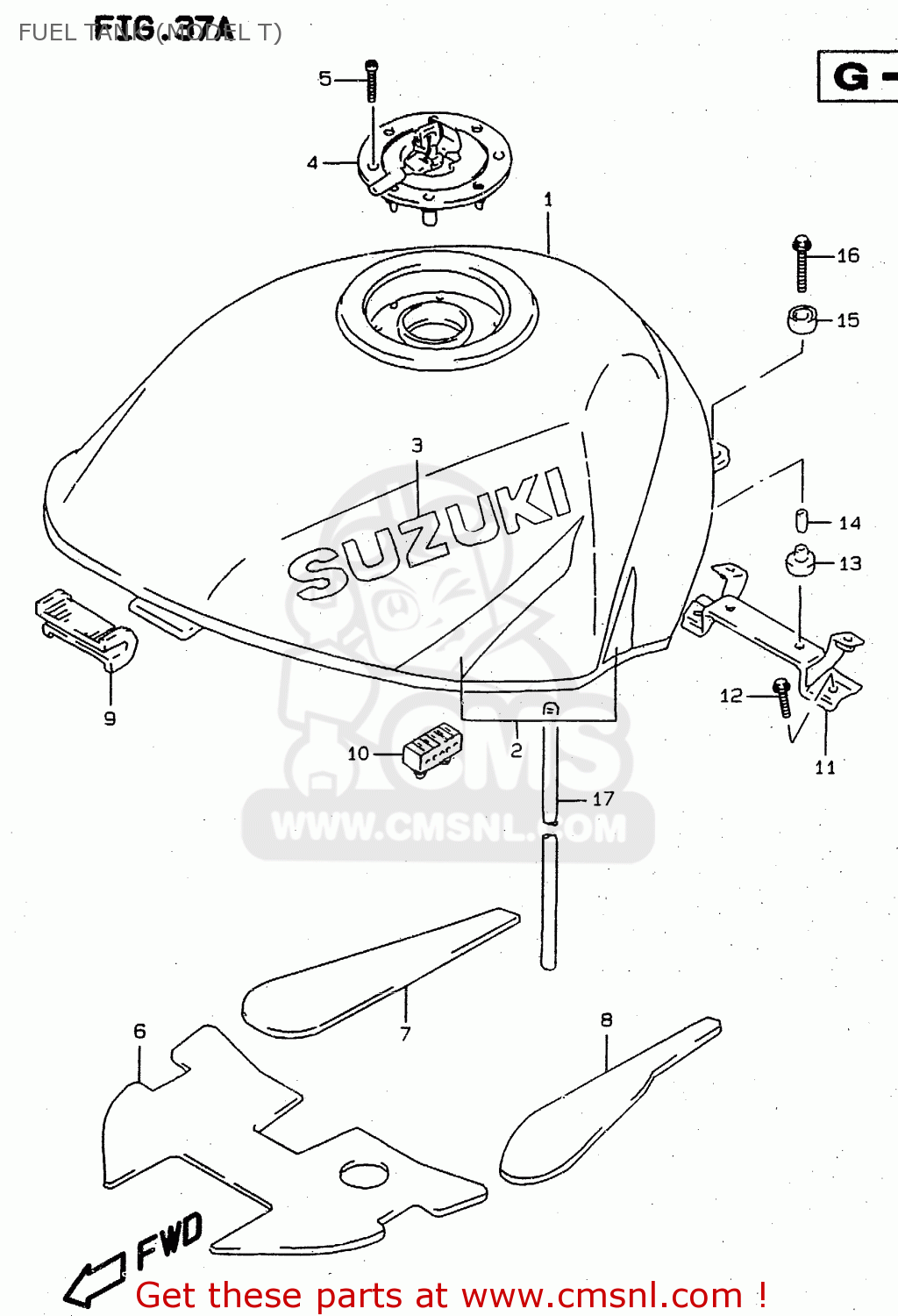

Fuel tank (model t) diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FUEL TANK (MODEL T) RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FUEL TANK (MODEL T) RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

4410031E50F3C
ref: 1-1

TANK ASSEMBLY,FUEL

€ 956.50

1-2

4410031E50E6M
ref: 1-2

TANK ASSEMBLY,FUEL

€ 956.50

2-1

6811031E20163
ref: 2-1
FOR E3C

TAPE SET,FUEL TANK(YELLOW)

€ 25.50

2-2

6811031E201ZZ
ref: 2-2
FOR E6M

TAPE SET,FUEL TANK (GRAY)

€ 25.50

3-1

6811101D000JW
ref: 3-1
FOR F3C

EMBLEM,FUEL TANK

€ 15.00

3-2

6811101D0013L
ref: 3-2
FOR E6M

EMBLEM,FUEL TANK

€ 14.50

4

4420101832
ref: 4

CAP SET,FUEL TANK

€ 204.00

5

0910605017
ref: 5

BOLT(5X20)

€ 3.00

6

4419121E00
ref: 6

SHIELD,FUEL TANK HEAT NO.1

€ 144.00

7

4419221E00
ref: 7

SHIELD,FUEL TANK HEAT NO.2

€ 31.00

8

4419321E00
ref: 8

SHIELD,FUEL TANK HEAT NO.3

€ 31.00

9

4451132C01
ref: 9

CUSHION,FUEL TANK FR

€ 15.50

10

4514931300
ref: 10

CUSHION,SEAT(40X20X15)

€ 2.00

11

4453021E02
ref: 11

BRACKET,FUEL TANK RR

€ 35.00

12

0155008163
ref: 12

BOLT

€ 3.00

13

0932010038
ref: 13

CUSHION

€ 4.00

14

0918006072
ref: 14

SPACER

€ 2.00

15

0932014017
ref: 15

CUSHION

€ 3.00

16

0155006303
ref: 16

BOLT

€ 2.50

17

0935270103600
ref: 17

HOSE(7X10.2X600)

€ 8.00
