CRANKCASE COVER

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

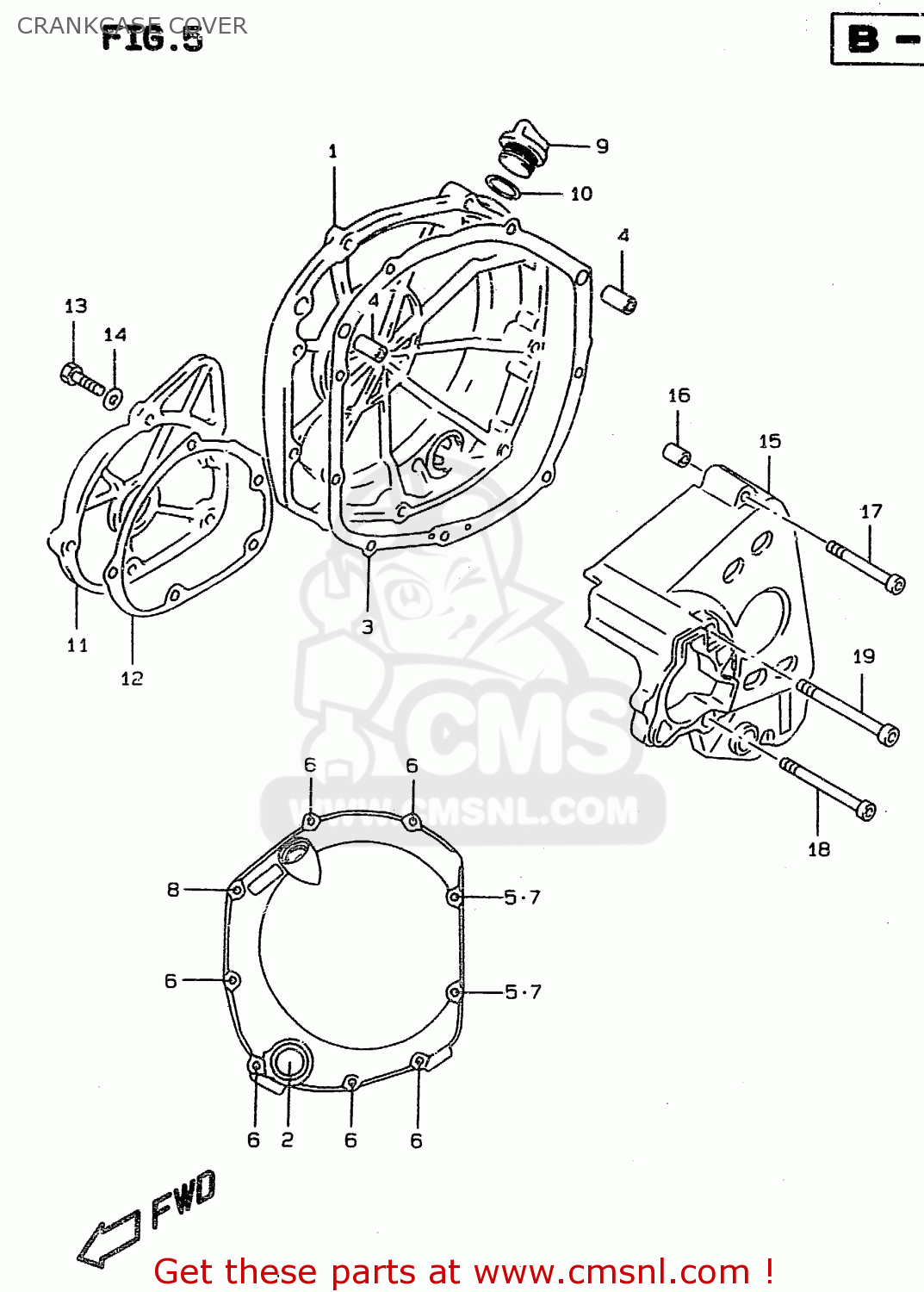

Crankcase cover diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CRANKCASE COVER RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

CRANKCASE COVER RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

1134031E00
ref: 1-1
MODEL R/S

COVER COMP,CLUTCH

€ 151.50

1-2

1134031E01
ref: 1-2
MODEL T/V/W

COVER,CLUTCH

€ 151.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148217E00
ref: 3

GASKET,CL COVER (NAS)

€ 33.50

4

0421109189
ref: 4

PIN

€ 2.00

5

0916806024
ref: 5

GASKET(5.8X11X1.2) (NAS)

€ 2.00

6

0713006253
ref: 6

BOLT,CL.COVER

€ 3.00

7

0713006303
ref: 7

BOLT

€ 3.00

8

0713006353
ref: 8

BOLT

€ 3.50

9-1

0925920012
ref: 9-1
~E.NO.110817

PLUG

€ 6.50

9-2

0925920008
ref: 9-2
E.NO.110818~

PLUG

€ 6.50

10

0928017003
ref: 10

O RING(D:3.1,ID:16.8)

€ 2.00

11

1138131E00
ref: 11

COVER,SIGNAL GENERATOR

€ 80.50

12

1149117E01
ref: 12

GASKET,SIGNAL GEN COVER

€ 20.50

13

0910606082
ref: 13

BOLT(6X22)

€ 3.00

14

0916806024
ref: 14

GASKET(5.8X11X1.2) (NAS)

€ 2.00

15

1136131E00
ref: 15

COVER,ENGINE SPROCKET

€ 138.50

16

0421109129
ref: 16

PIN

€ 2.00

17

0713006503
ref: 17

BOLT,CL.COVER

€ 3.00

18

0713006703
ref: 18

BOLT

€ 4.00

19

0713006803
ref: 19

BOLT

€ 3.00
