SECOND AIR (E18, E39)

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

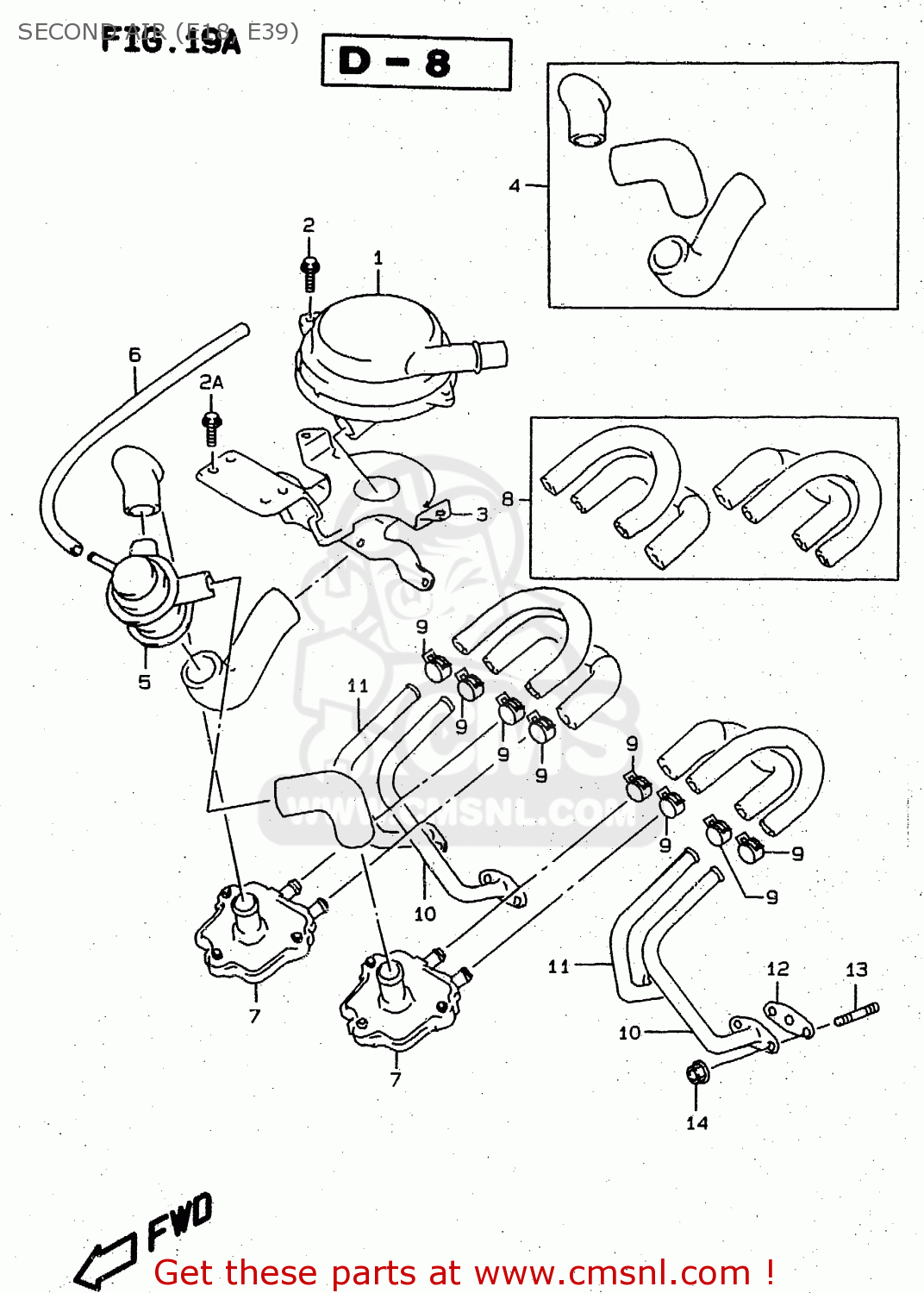

Second air (e18, e39) diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

SECOND AIR (E18, E39) RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

SECOND AIR (E18, E39) RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

1870017C03
ref: 1

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

2

0155006123
ref: 2

BOLT

€ 2.50

2A

0154706123
ref: 2A

BOLT

€ 2.00

3

1875021E00
ref: 3

BRACKET COMP,SECOND AIR

€ 0.00

4

1842017810
ref: 4

HOSE SET,2ND AIR NO.2

€ 0.00

5

1851046E00
ref: 5

VALVE ASSEMBLY,SECOND AIR SWITCH

€ 0.00

6

0935545855600
ref: 6

HOSE(4.5X8.5X600)

€ 14.00

7

1845048B00
ref: 7

VALVE ASSY,2ND AIR REED

€ 125.50

8

1841021810
ref: 8

HOSE SET,2ND AIR NO.1

€ 0.00

9-1

0940113413
ref: 9-1
MODEL R/S/T

CLIP

€ 2.50

9-2

0940113417
ref: 9-2
MODEL W

CLIP

€ 2.50

10

1841021E00
ref: 10

PIPE COMP,SECOND AIR NO.1

€ 0.00

11

1842021E00
ref: 11

PIPE COMP,SECOND AIR NO.2

€ 0.00

12

1844145C00
ref: 12

GASKET,SECOND AIR PIPE (N (NAS)

€ 6.00

13

0142106163
ref: 13

STUD BOLT

€ 2.00

14

0831610063
ref: 14

NUT

€ 2.50
