WATER PUMP

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

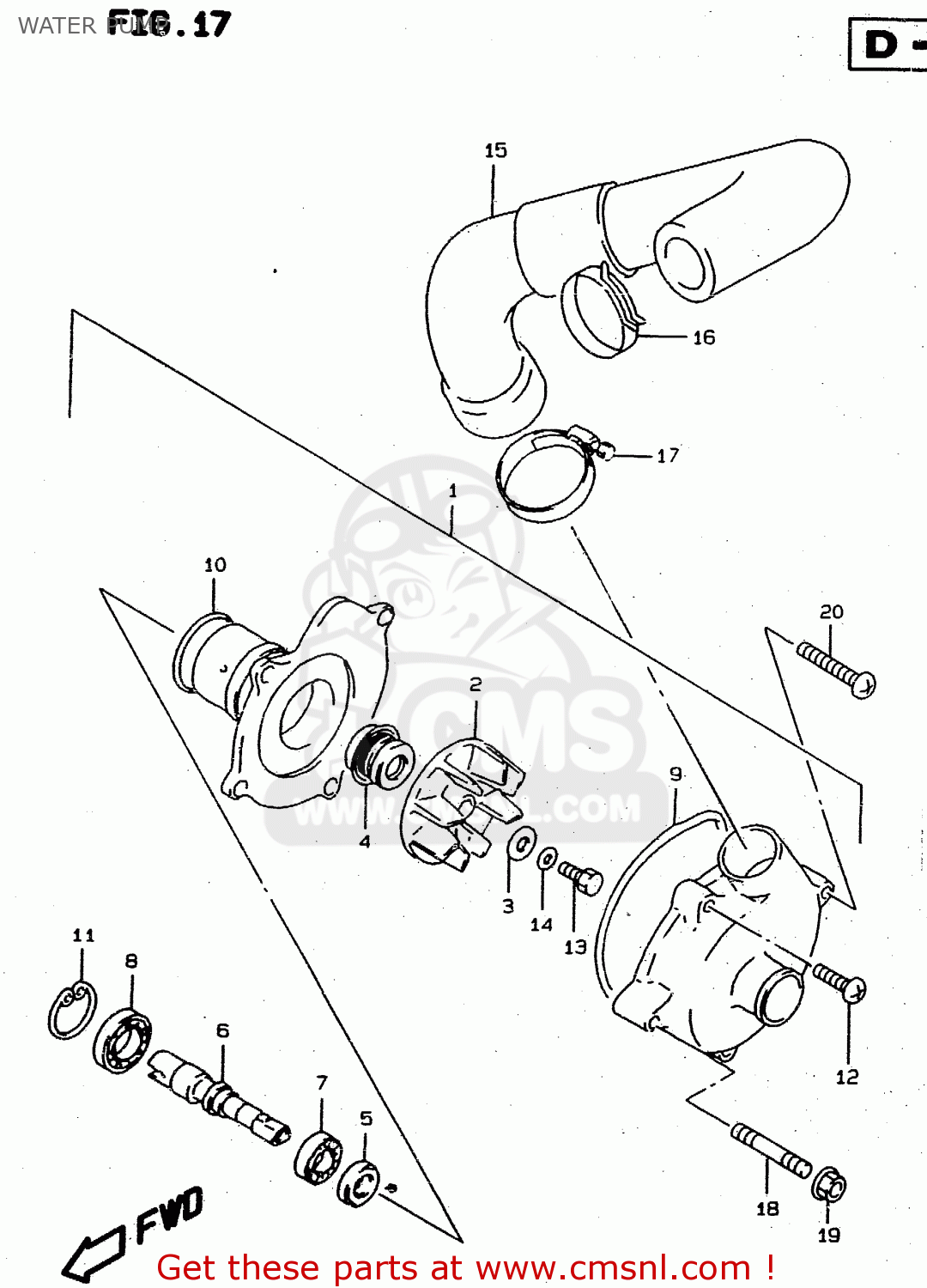

Water pump diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

WATER PUMP RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

WATER PUMP RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

1740017E00
ref: 1-1

PUMP ASSEMBLY,WATER

€ 385.50

1-2

1740017E01
ref: 1-2
GT73A-100406~ GT73B-

PUMP ASSY,WATER

€ 385.50

2

1749117E00
ref: 2

IMPELLER

€ 15.00

3

0916806025
ref: 3

GASKET(6X15X2.2) (NAS)

€ 3.00

4

1747046A00
ref: 4

SEAL,MECHANICAL

€ 21.50

5

0928310004
ref: 5

SEAL,OIL(10X21X5)

€ 4.50

6-1

1751117E00
ref: 6-1
FOR 17400-17E00

SHAFT

€ 86.00

6-2

1751117E01
ref: 6-2
FOR 17400-17E01

SHAFT

€ 109.50

7-1

0811369010
ref: 7-1
FOR 17400-17E00

BEARING

€ 19.00

7-2

0926210014
ref: 7-2
FOR 17400-17E01

BEARING(10X26X8)

€ 13.00

8-1

0926215008
ref: 8-1
FOR 17400-17E00

BALL BEARING 15X28X7

€ 17.00

8-2

0926212001
ref: 8-2
FOR 17400-17E01

BEARING(12X28X8)

€ 15.00

9

1741833400
ref: 9

O RING

€ 4.00

10

1743533400
ref: 10

O RING,WATER PUMP HOLDER

€ 13.00

11

0833141286
ref: 11
FOR 17400-17E00

CIRCLIP

€ 3.50

12

0211206163
ref: 12

SCREW 6X16

€ 2.00

13

0910006099
ref: 13

BOLT(6X13)

€ 2.00

14

0916406006
ref: 14

WASHER

€ 2.50

15

1785417E01
ref: 15

HOSE,WATER PUMP OUTLET

€ 24.50

16

0940126404
ref: 16

CLAMP

€ 3.00

17-1

0940233502
ref: 17-1
MODEL R

CLAMP

€ 10.50

17-2

0940238511
ref: 17-2
MODEL S/T/V/W

CLAMP

€ 10.50

18

0910806117
ref: 18

BOLT,STUD

€ 3.00

19

0831610063
ref: 19

NUT

€ 2.50

20

0211206353
ref: 20

SCREW

€ 2.50
