COWLING BODY (RF900RS2)

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

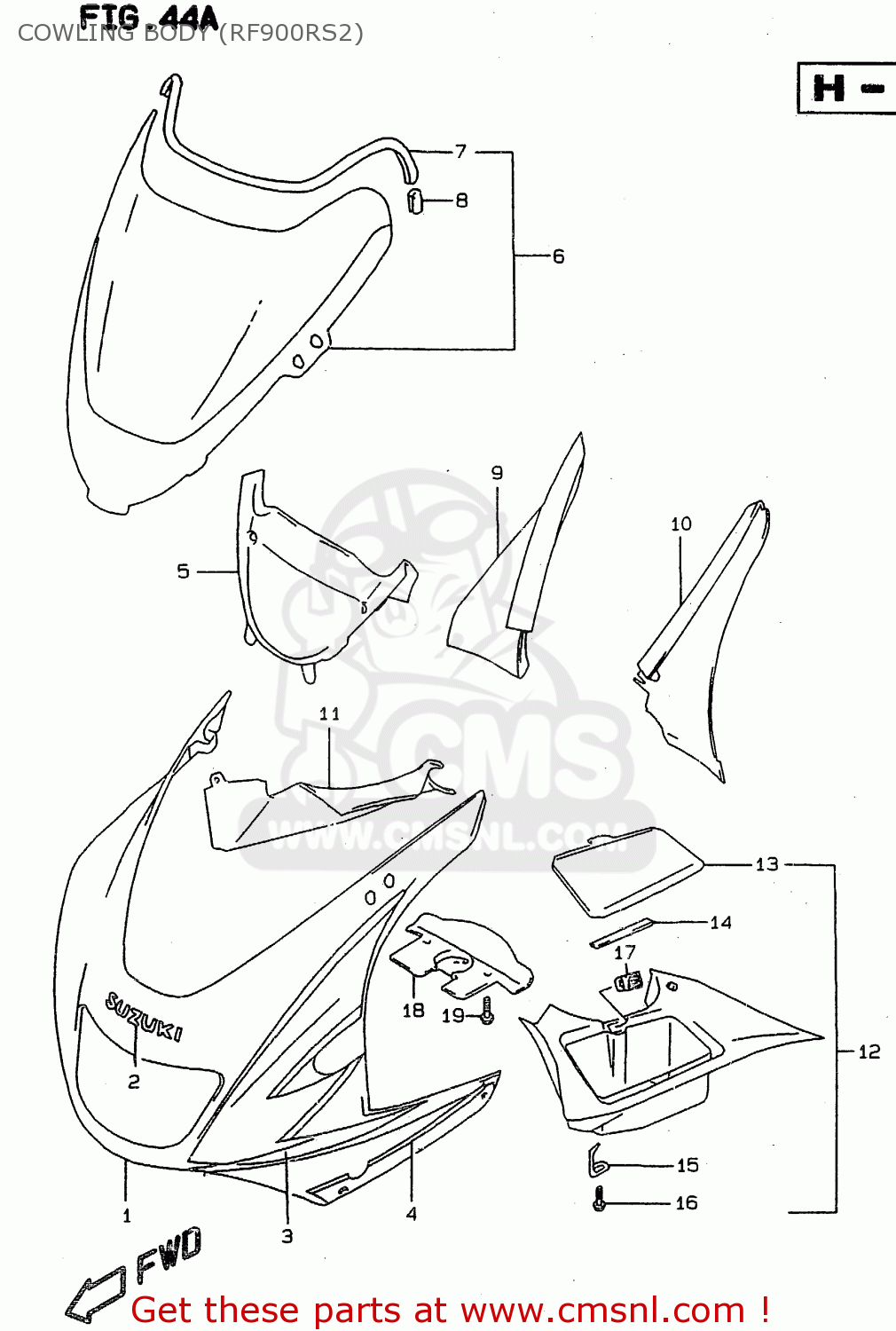

Cowling body (rf900rs2) diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

COWLING BODY (RF900RS2) RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

COWLING BODY (RF900RS2) RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

9440031E00Y22
ref: 1
FOR 8DA

COWLING ASSY,BODY(PURPLE)

€ 554.50

2

6818505C100FP
ref: 2

EMBLEM,COWLING UPR

€ 10.50

3

6827031E00D8M
ref: 3

TAPE SET,COWL BODY FR

€ 79.00

4

6828031E00D8M
ref: 4

TAPE SET,COWL BODY SIDE

€ 49.50

5

9464021E00
ref: 5

PANEL,COWLING CTR

€ 77.00

6

9461021E00
ref: 6

WINDSCREEN SET

€ 172.00

7

9463133C01
ref: 7
L:700->600

MOLDING WINDSCREEN

€ 10.00

8

9463721E00
ref: 8

CLIP,WINDSCREEN MOLDING

€ 4.00

9

9442321E00
ref: 9

PANEL,UPR,R

€ 43.00

10

9442421E00
ref: 10

PANEL,UPR,L

€ 36.50

11

9463021E00
ref: 11

PANEL,SIDE,R

€ 58.50

12

9465021E00
ref: 12

PANEL ASSY,SIDE,L

€ 141.50

13

9442721E00
ref: 13

LID,PANEL BOX

€ 40.50

14

9445621E00
ref: 14

CUSHION,LID

€ 2.50

15

9455321E00
ref: 15

HINGE,PANEL LID

€ 5.50

16

0354115103
ref: 16

SCREW

€ 2.00

17

7317050A00
ref: 17

LOCK,I/P CTR BOX

€ 9.00

18

9445721E10
ref: 18

COVER,COWLING FR LWR

€ 16.00

19

0911606109
ref: 19

BOLT(6X12)

€ 1.50
