INSTALLATION PARTS

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

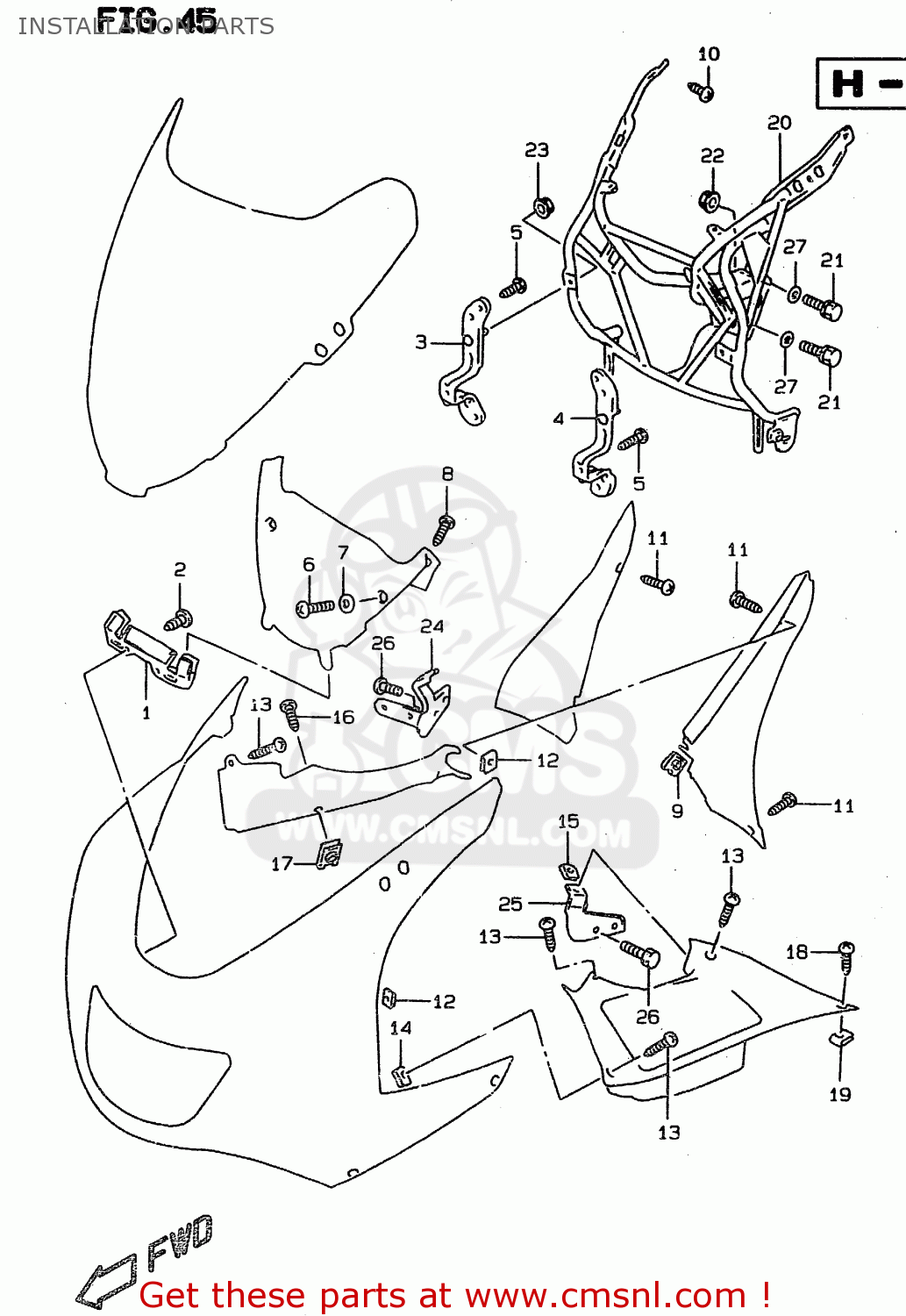

Installation parts diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

INSTALLATION PARTS RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

INSTALLATION PARTS RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

9462021E00
ref: 1

BRACKET,WINDSCREEN FIT FR

€ 20.50

2

0354105103
ref: 2

SCREW 5X10

€ 1.50

3

9441821E00
ref: 3

BRACKET,HEADLAMP FITING,R

€ 15.50

4

9442821E00
ref: 4

BRACKET,HEADLAMP FITING,L

€ 15.50

5

0354105103
ref: 5

SCREW 5X10

€ 1.50

6

0214205123
ref: 6

SCREW 5X12

€ 1.50

7

0916105017
ref: 7

WASHER(5.2X14X1.5)

€ 3.00

8

0324205163
ref: 8

SCREW

€ 1.50

9

0914805013
ref: 9

NUT

€ 1.50

10

0354105103
ref: 10

SCREW 5X10

€ 1.50

11

0324205163
ref: 11

SCREW

€ 1.50

12

0914805038
ref: 12

NUT

€ 2.50

13

0324205163
ref: 13

SCREW

€ 1.50

14

0914805038
ref: 14

NUT

€ 2.50

15

0914805038
ref: 15

NUT

€ 2.50

16

0324205163
ref: 16

SCREW

€ 1.50

17

0914805038
ref: 17

NUT

€ 2.50

18

0324205163
ref: 18

SCREW

€ 1.50

19

0914805038
ref: 19

NUT

€ 2.50

20-1

9451031E00
ref: 20-1
MODEL R/S

BRACE,COWLING

€ 300.50

20-2

9451031E10
ref: 20-2
MODEL T/V/W

BRACE,COWLING

€ 300.50

21

0910308222
ref: 21

BOLT(8X40)

€ 3.00

22

0831610083
ref: 22

NUT

€ 3.00

23

0831931063
ref: 23

NUT

€ 2.50

24

9455021E00
ref: 24

BRACKET,SIDE PANEL,R

€ 20.00

25

9456121E00
ref: 25

BRACKET,SIDE PANEL,L

€ 15.50

26

0155006103
ref: 26

BOLT

€ 2.50

27

0916408020
ref: 27

WASHER

€ 2.50
