WIRING HARNESS

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

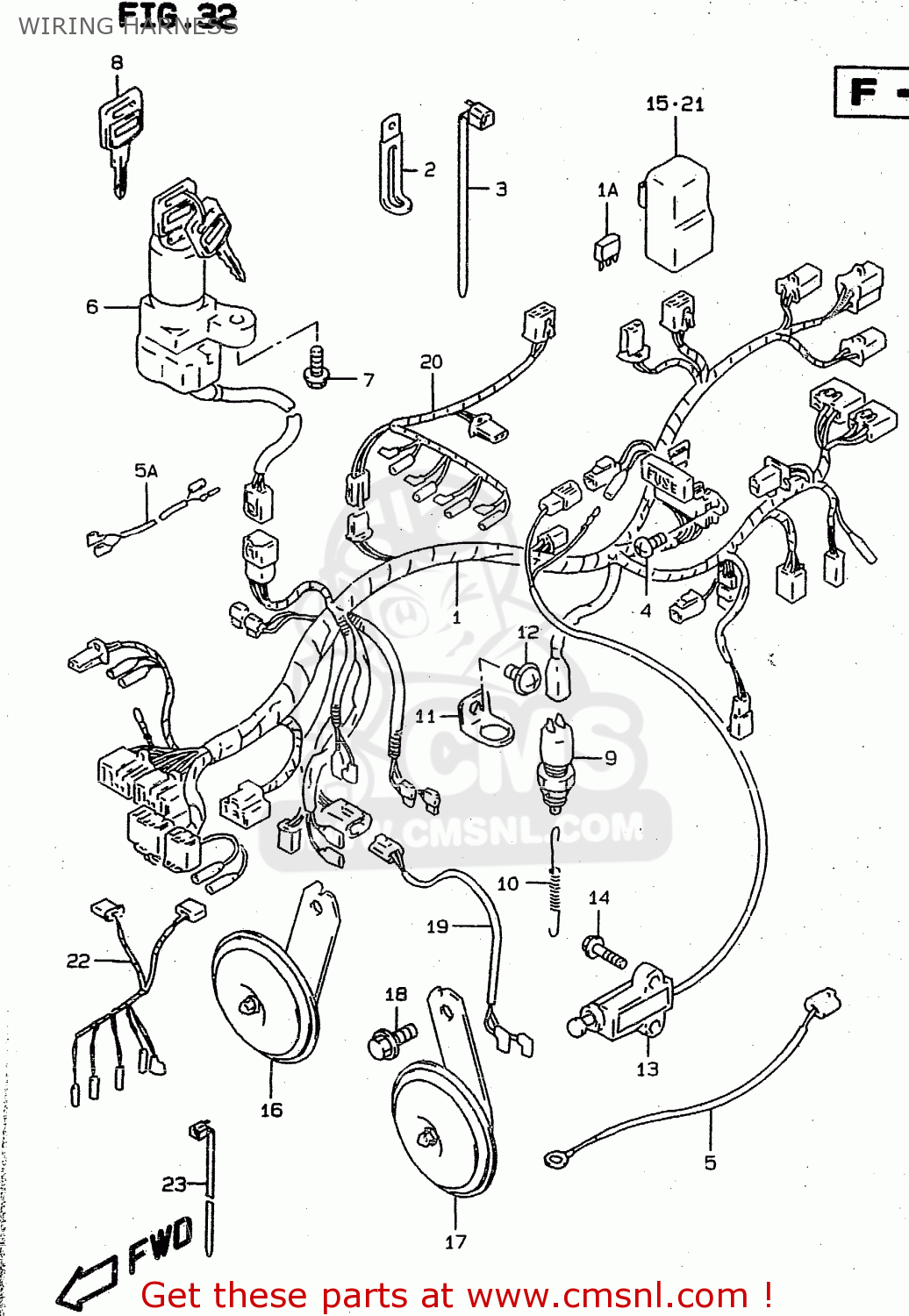

Wiring harness diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

WIRING HARNESS RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
WIRING HARNESS RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
WIRING HARNESS RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
3661021E10
ref: 1-1
MODEL R
HARNESS,WIRING
€ 511.50
1-2
3661021E11
ref: 1-2
MODEL S
HARNESS,WIRING
€ 511.50
1-3
3661021E20
ref: 1-3
MODEL T/V/W
HARNESS,WIRING
€ 477.50
1A
3661138A00
ref: 1A
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
2-1
0940406402
ref: 2-1
MODEL R/S
CLAMP
€ 2.50
2-2
0940406429
ref: 2-2
MODEL T/V/W
CLAMP(L:45)
€ 2.50
3-1
0940711402
ref: 3-1
CLAMP(L:90)
0940711402
€ 2.50
3-2
0940714403
ref: 3-2
CLAMP(L:125)
0940714403
€ 2.50
3-3
0940718403
ref: 3-3
CLAMP L:165
€ 2.50
4
0214206123
ref: 4
SCREW 6X12
0214206123
€ 2.00
5
3685117E10
ref: 5
WIRE,OIL PRESSURE SWITCH LEAD
3685117E10
€ 13.50
5A
3685219D00
ref: 5A
WIRE,CLUTCH LEAD
3685219D00
€ 12.00
6-1
3710026D02
ref: 6-1
MODEL R/S/T/V
LOCK ASSEMBLY,STEERING
3710026D02
€ 134.00
6-2
3710033D40
ref: 6-2
MODEL W
LOCK ASSY,STEE
€ 128.00
6-3
3710026D11
ref: 6-3
E24
LOCK ASSY,STEERING
€ 103.50
7
0913906026
ref: 7
SCREW(6X18)
0913906026
€ 2.50
8
3714626D10
ref: 8
OPT
KEY,BLANK
3714626D10
€ 41.50
9
3774024A00
ref: 9
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
10
0944306012
ref: 10
SPRING
0944306012
€ 3.00
11
4325121E00
ref: 11
BRACKET,STOP LAMP SWITCH
4325121E00
€ 3.50
12
0214206083
ref: 12
SCREW
0214206083
€ 1.50
13-1
3784044A20
ref: 13-1
MODEL R
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
13-2
3784044X50
ref: 13-2
MODEL S/T/V/W
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
14
0155006203
ref: 14
BOLT
0155006203
€ 2.50
15
3874024X50
ref: 15
RELAY ASSY
3874024X50
€ 37.50
16-1
3850221E00
ref: 16-1
MODEL R/S
HORN ASSEMBLY,LOW PITCH
€ 63.50
16-2
3850221E02
ref: 16-2
MODEL T/V/W <-38502-
HORN ASSY
3850221E02
€ 63.50
17
3850121E01
ref: 17
E18, E25, E34, E37,
HORN ASSY
3850121E01
€ 54.00
18
0155008163
ref: 18
BOLT
0155008163
€ 3.00
19
3685221E10
ref: 19
E18, E25, E34, E37,
WIRE,HORN LEAD
€ 14.00
20
3685921E00
ref: 20
MODEL S
WIRE,CARBURETOR HEATER LEAD
3685921E00
€ 51.50
21
3874024X50
ref: 21
MODEL S/T/V/W
RELAY ASSY
3874024X50
€ 37.50
22
3885621E00
ref: 22
MODEL T/V/W
WIRE, CARB HEATER LEAD
€ 0.00
23
0940711401
ref: 23
MODEL T/V/W
CLAMP(L:95)
0940711401
€ 2.50
