STARTING MOTOR

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

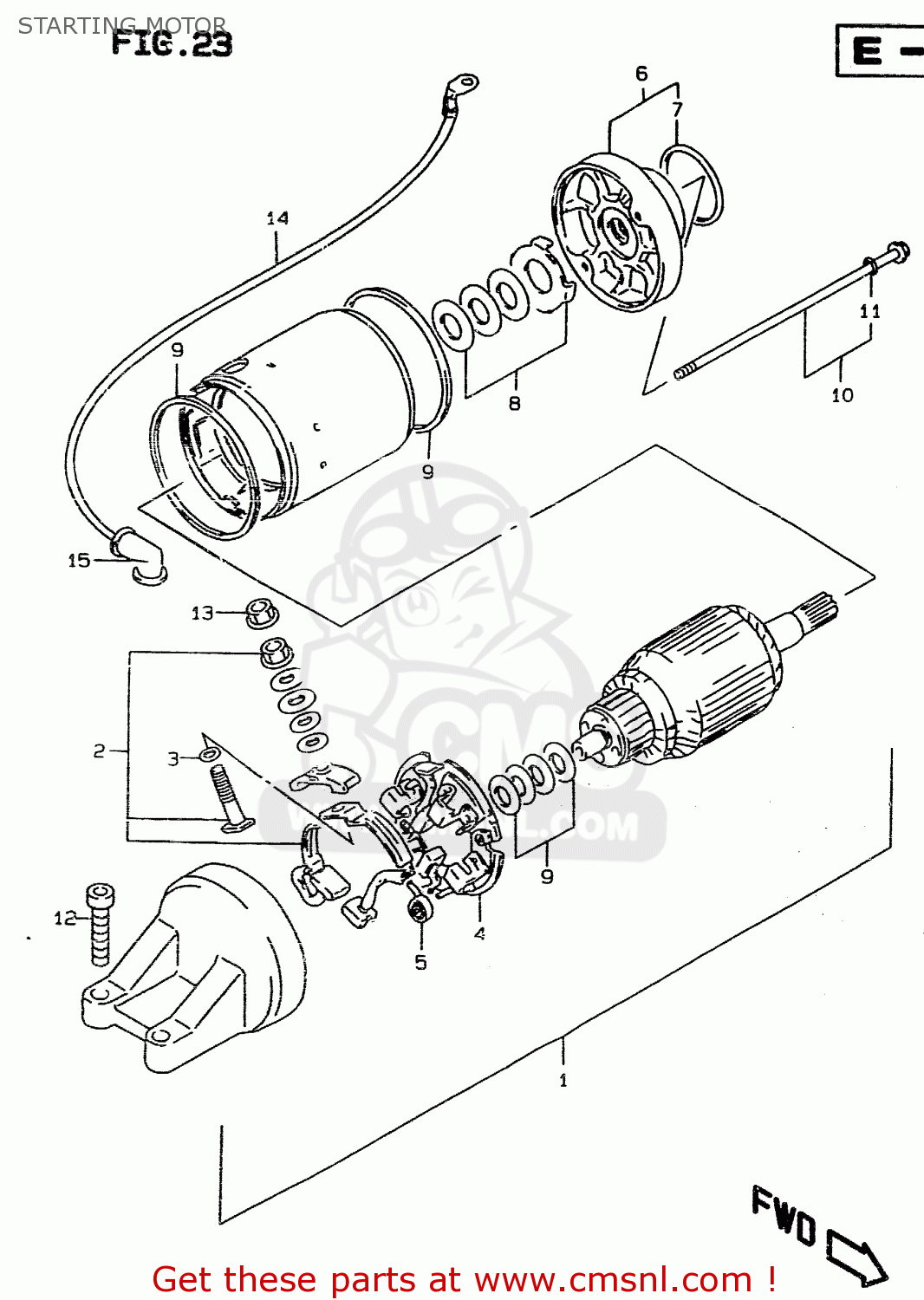

Starting motor diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

STARTING MOTOR RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

STARTING MOTOR RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

3110046E00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 730.00

2

3113019B10
ref: 2

TERMINAL SET,BRUSH,PLUS

€ 27.50

3

3114349040
ref: 3

O RING

€ 3.00

4

3113246E00
ref: 4

BRUSH,HOLDER SET

€ 47.00

5

3113531300
ref: 5

SPRING,BRUSH

€ 4.00

6

3115046E00
ref: 6

BRACKET ASSEMBLY,FRONT

€ 85.00

7

3115648B00
ref: 7
<-31156-46E00

O RING

€ 8.50

8

3117019B10
ref: 8

SHIM SET,STARTING MOTOR

€ 8.00

9-1

3126431300
ref: 9-1
MODEL R/S/T/V

O RING

€ 7.50

9-2

3126432E00
ref: 9-2
MODEL W

SQUARE RING

€ 7.50

10

3128019B10
ref: 10

BOLT SET,STARTING MOTOR

€ 8.50

11

3114349040
ref: 11

O RING

€ 3.00

12-1

0712006253
ref: 12-1
MODEL R

BOLT,OIL PAN

€ 2.50

12-2

0912806024
ref: 12-2
MODEL S/T/V/W

SCREW (6X25)

€ 2.50

13

0836135068
ref: 13

NUT

€ 2.00

14

3381021E00
ref: 14

WIRE,STARTER MOTOR LEAD

€ 25.50

15

3186148B10
ref: 15

CAP,STARTER MOTOR LEAD

€ 4.50
