Buy Suzuki RF Parts Online


HANDLE BAR

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

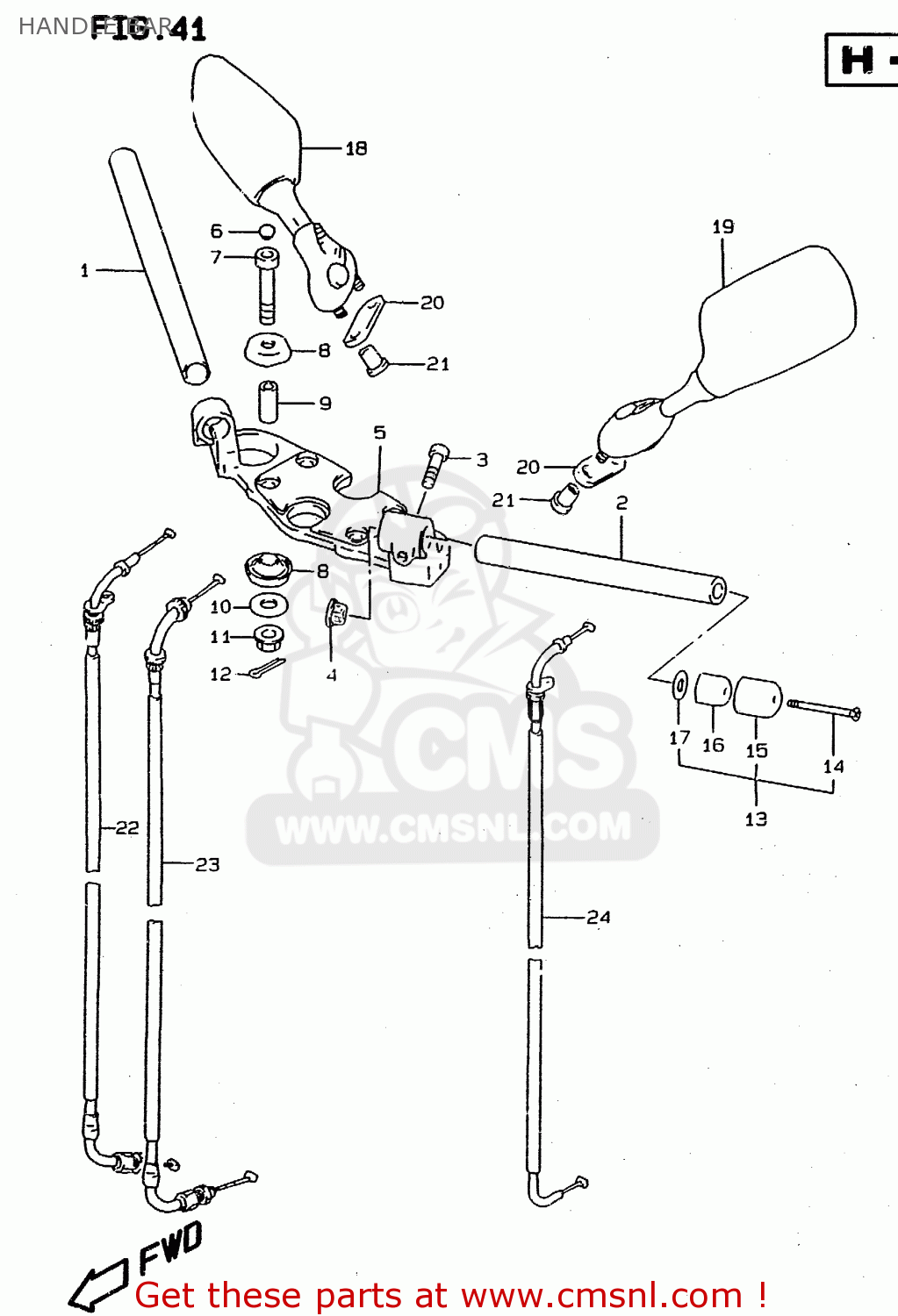

Handle bar diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

HANDLE BAR RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
HANDLE BAR RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
HANDLE BAR RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
5611031E10
ref: 1-1
MODEL R/S
HANDLEBAR
5611031E10
€ 38.00
1-2
5611031E11
ref: 1-2
MODEL T/V/W
HANDLEBAR,R
5611031E11
€ 38.00
2-1
5615031E10
ref: 2-1
MODEL R/S
HANDLEBAR,LEFT
€ 37.50
2-2
5615031E11
ref: 2-2
MODEL T/V/W
HANDLEBAR,L
5615031E11
€ 37.50
3
0713008307
ref: 3
BOLT
0713008307
€ 4.50
4
5721533400
ref: 4
CAP,HANDLEBAR
5721533400
€ 4.00
5
5621131E00
ref: 5
HOLDER,HANDLEBAR
€ 691.00
6
0925006011
ref: 6
CAP(OD:11)
0925006011
€ 2.50
7
0910610055
ref: 7
BOLT(10X66)
0910610055
€ 8.00
8
5624001D00
ref: 8
CUSHION,UPR BRACKET
5624001D00
€ 23.00
9
5624301D00
ref: 9
SPACER,STEERING STEM HEAD
5624301D00
€ 6.00
10
0916010094
ref: 10
WASHER(10.5X30X3.2)
0916010094
€ 3.50
11
0831610103
ref: 11
NUT
0831610103
€ 2.00
12
0411120208
ref: 12
PIN 20X20
0411120208
€ 1.50
13
5620001831
ref: 13
BALANCER SET,HANDLEBAR
5620001831
€ 55.00
14
0212206603
ref: 14
SCREW
0212206603
€ 3.00
15-1
5627420C00
ref: 15-1
->56274-49310
CAP,BALANCER
5627420C00
€ 141.00
15-2
5627449310
ref: 15-2
CAP,HANDLE BALANCER
5627449310
€ 141.00
16
5627149310
ref: 16
BALANCER,HANDLEBAR
5627149310
€ 15.50
17
5627534401
ref: 17
SPACER,BALANCER
5627534401
€ 2.50
18
5650031E00
ref: 18
MIRROR ASSY,RR VIEW,R
5650031E00
€ 104.50
19
5660031E00
ref: 19
MIRROR ASSY,RR VIEW,L
5660031E00
€ 111.00
20
9457641C00
ref: 20
CUSHION,RR VIEW MIRRORR
9457641C00
€ 12.00
21
5661912C00
ref: 21
NUT,RR VIEW MIRROR
5661912C00
€ 8.00
22-1
5830031E00
ref: 22-1
MODEL R/S
CABLE ASSEMBLY,THROTTLE NO
5830031E00
€ 50.00
22-2
5830031E01
ref: 22-2
MODEL T/V/W
CABLE ASSY,THROTTLE NO.1
5830031E01
€ 50.00
23-1
5830031E10
ref: 23-1
MODEL R/S
CABLE ASSEMBLY,THROTTLE NO
5830031E10
€ 41.00
23-2
5830031E11
ref: 23-2
MODEL T/V/W
CABLE ASSY,THROTTLE NO.2
5830031E11
€ 41.00
24
5841021E00
ref: 24
CABLE COMP,STARTER
5841021E00
€ 23.00
