SEAT

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

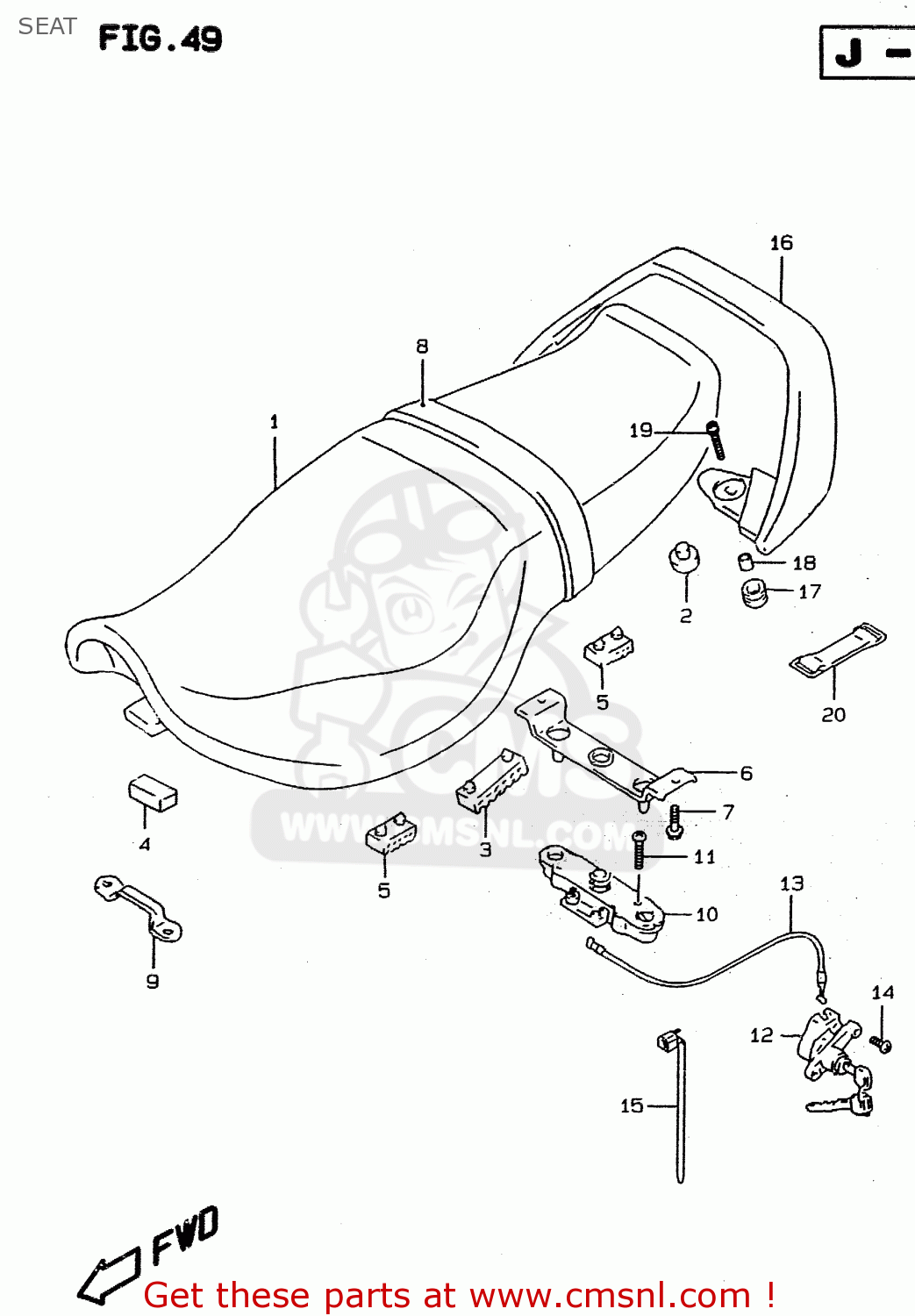

Seat diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

SEAT RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
SEAT RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
SEAT RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1-1
4510031E006VP
ref: 1-1
SEAT ASSY
€ 323.50
1-2
4510031E106VP
ref: 1-2
E34, E37
SEAT ASSY (BLACK) (WITH SEAT BAND)
4510031E106VP
€ 323.50
2
0932110011
ref: 2
CUSHION
0932110011
€ 3.00
3
4514831E00
ref: 3
CUSHION,SEAT
4514831E00
€ 6.00
4
4514931E00
ref: 4
CUSHION,FR(20X40X15)
4514931E00
€ 4.00
5
4514931300
ref: 5
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
6
4521022D01
ref: 6
STRIKER,SEAT LOCK
4521022D01
€ 31.00
7
0155006203
ref: 7
BOLT
0155006203
€ 2.50
8
4518031E006VP
ref: 8
E34, E37
BAND, SEAT (BLACK)
€ 44.50
9
4511917E00
ref: 9
PLATE,SEAT FR HOOK
4511917E00
€ 9.00
10
4522013601
ref: 10
LOCK ASSY,SEAT STRIKER
4522013601
€ 47.00
11-1
0211206303
ref: 11-1
MODEL R
SCREW 6X30
0211206303
€ 2.50
11-2
0211206303
ref: 11-2
MODEL S/T/V/W
SCREW 6X30
0211206303
€ 2.50
12
9570012852
ref: 12
LOCK SET,SEAT
9570012852
€ 110.50
13
4528012D00
ref: 13
CABLE,SEAT LOCK
€ 16.50
14-1
0913906075
ref: 14-1
MODEL R/S/T
SCREW(6X12)
0913906075
€ 3.00
14-2
0913906092
ref: 14-2
MODEL V/W
SCREW(6X14)
0913906092
€ 3.50
15-1
0940718403
ref: 15-1
MODEL R/S
CLAMP L:165
€ 2.50
15-2
0940718403
ref: 15-2
MODEL T/V
CLAMP L:165
€ 2.50
15-3
0940714403
ref: 15-3
MODEL W
CLAMP(L:125)
0940714403
€ 2.50
16-1
4621131E00019
ref: 16-1
RF900RR FOR 33J
HANDLE,PILLION RIDER
€ 225.50
16-2
4621131E0019A
ref: 16-2
RF900RR/RS
HANDLE,PILLION RIDER
4621131E0019A
€ 230.50
16-3
4621131E001HU
ref: 16-3
RF900RS
HANDLE,PILLION RIDER
€ 225.50
16-4
4621131E001UH
ref: 16-4
RF900RS
HANDLE,PILLION RIDER
€ 225.50
16-5
4621131E000FP
ref: 16-5
RF900RS2
HANDLE,PILLION RIDER
€ 257.00
16-6
4621131E0017U
ref: 16-6
RF900RT FOR F3C
HANDLE,PILLION RIDER
€ 225.50
16-7
4621131E0033J
ref: 16-7
RF900RT FOR E6M RF90
HANDLE,PILLION RIDER
4621131E0033J
€ 225.50
16-8
4621131E00019
ref: 16-8
RF900RV FOR 7AY, G4H
HANDLE,PILLION RIDER
€ 225.50
16-9
4621131E0022U
ref: 16-9
RF900RW
HANDLE,PILLION RIDER
€ 191.00
17
0932020008
ref: 17
CUSHION
0932020008
€ 4.00
18
0916008135
ref: 18
WASHER(8.5X28X1.6)
0916008135
€ 2.00
19
0713008303
ref: 19
BOLT
0713008303
€ 3.00
20
0946200008
ref: 20
BAND
0946200008
€ 4.50
