GEAR SHIFTING

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

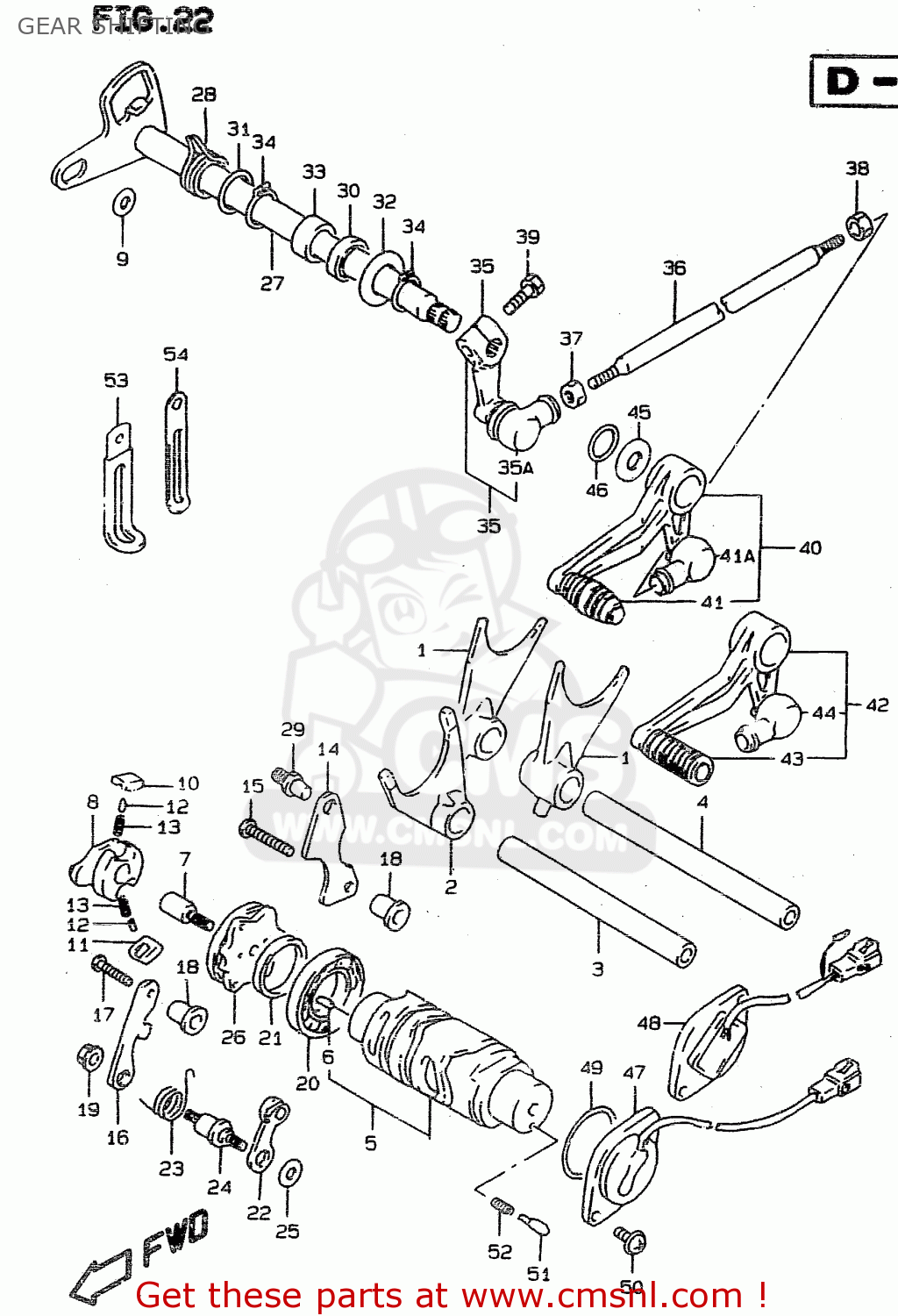

Gear shifting diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

GEAR SHIFTING RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
GEAR SHIFTING RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
GEAR SHIFTING RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
2521117E00
ref: 1
FORK,GEAR SHIFT NO.1
€ 64.50
2
2523146E00
ref: 2
FORK,GEAR SHIFT NO.3
2523146E00
€ 76.00
3
2541126D01
ref: 3
SHAFT,GEAR SHIFT FORK
2541126D01
€ 16.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
2541127A00
€ 23.50
5
2531046E00
ref: 5
CAM,GEAR SHIFT
€ 165.50
6
0422104089
ref: 6
PIN
0422104089
€ 1.50
7
2531212C00
ref: 7
PIN,SHIFT CAM DRIVEN GEAR
2531212C00
€ 6.00
8-1
2532233C00
ref: 8-1
MODEL R/S/T
SHIFTER,GEAR SHIFT CAM
€ 49.50
8-2
2532233C01
ref: 8-2
MODEL V/W
SHIFTER,GEAR SHIFT CAM
2532233C01
€ 49.50
9
0918007014
ref: 9
SPACER(7X10X5)
0918007014
€ 4.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533126D00
ref: 14
LIFTER,GEAR SHIFT PAWL
2533126D00
€ 6.00
15
0211206303
ref: 15
SCREW 6X30
0211206303
€ 2.50
16
2534117E00
ref: 16
GUIDE,GEAR SHIFT CAM
€ 7.50
17
0212206303
ref: 17
SCREW
0212206303
€ 2.00
18
0918006202
ref: 18
SPACER(6.1X10X16)
0918006202
€ 4.00
19
0831610063
ref: 19
NUT
0831610063
€ 2.50
20
0926225006
ref: 20
BEARING(25X47X8)
0926225006
€ 24.00
21
0916025059
ref: 21
WASHER(25X32X3)
0916025059
€ 5.00
22
2535026D01
ref: 22
STOPPER,GEAR SHIFT CAM
2535026D01
€ 8.50
23-1
2535526D20
ref: 23-1
MODEL R/S
SPRING,STOPPER ARM
€ 11.00
23-2
2535526D21
ref: 23-2
MODEL T/V/W
SPRING,STOPPER ARM
2535526D21
€ 11.00
24
2535612C00
ref: 24
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
25
0821106141
ref: 25
WASHER
0821106141
€ 2.50
26
2538012B00
ref: 26
PLATE,GEAR SHIFT CAM
2538012B00
€ 10.00
27
2551017E10
ref: 27
SHAFT,GEAR SHIFT
2551017E10
€ 66.00
28
0944420003
ref: 28
<-09444-20002
SPRING
0944420003
€ 5.50
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
30
0928314006
ref: 30
SEAL,OIL(14X22X6)
0928314006
€ 6.50
31-1
0821114221
ref: 31-1
MODEL R/S/T
WASHER,THRUST
€ 3.50
31-2
0918114167
ref: 31-2
MODEL V/W
SHIM(14X22X1)
0918114167
€ 3.50
32
0916014016
ref: 32
WASHER(14X29X0.8)
0916014016
€ 1.50
33
0926314027
ref: 33
BEARING(14X20X12)
0926314027
€ 11.00
34
0833131146
ref: 34
CIRCLIP
0833131146
€ 2.00
35
2552019C02
ref: 35
ARM,GEAR SHIFT LINK
2552019C02
€ 53.50
35A
2552647000
ref: 35A
COVER,DUST
2552647000
€ 3.50
36-1
2552521E00
ref: 36-1
MODEL R
ROD,GEAR SHIFT LINK
€ 16.00
36-2
2552521E10
ref: 36-2
MODEL S/T/V/W
ROD,GEAR SHIFT LINK
2552521E10
€ 16.00
37
0914006011
ref: 37
NUT
0914006011
€ 1.50
38
0831000067
ref: 38
NUT
0831000067
€ 2.50
39
0150006257
ref: 39
BOLT
0150006257
€ 2.00
40
2560017C03
ref: 40
MODEL R/S/T
LEVER ASSEMBLY,GEAR SHIFTING
2560017C03
€ 106.00
41
2565216500
ref: 41
MODEL R/S/T
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
41A
2552647000
ref: 41A
MODEL R/S/T
COVER,DUST
2552647000
€ 3.50
42
2560033E00
ref: 42
MODEL V/W
LEVER ASSY,GEAR SHIFT
2560033E00
€ 106.00
43
2565220C00
ref: 43
MODEL V/W
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
44
2552647000
ref: 44
MODEL V/W
COVER,DUST
2552647000
€ 3.50
45
0916014052
ref: 45
WASHER(14X27X4)
0916014052
€ 4.00
46
0916018022
ref: 46
WASHER(18X24X1)
0916018022
€ 3.00
47
3772048800
ref: 47
MODEL R/S MODEL T/V/
BODY, GEAR SHIFTING SWITCH
€ 0.00
48
3773031E01
ref: 48
MODEL T/V/W E2, E22,
BASE ASSY,GEAR SHIFT TERMINAL
3773031E01
€ 178.00
49
0928035006
ref: 49
O RING(D:2.4,ID:35.5)
0928035006
€ 4.00
50
0211275163
ref: 50
SCREW
0211275163
€ 2.50
51
0920905011
ref: 51
PIN(5X15.5)
0920905011
€ 2.00
52
0944004010
ref: 52
SPRING
0944004010
€ 1.50
53-1
0940406402
ref: 53-1
MODEL R/S
CLAMP
€ 2.50
53-2
0940406429
ref: 53-2
MODEL T/V/W
CLAMP(L:45)
€ 2.50
54-1
0940406426
ref: 54-1
MODEL R/S
CLAMP
0940406426
€ 3.00
54-2
0940406433
ref: 54-2
MODEL T/V/W
CLAMP(L:80)
0940406433
€ 3.00
