BATTERY

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

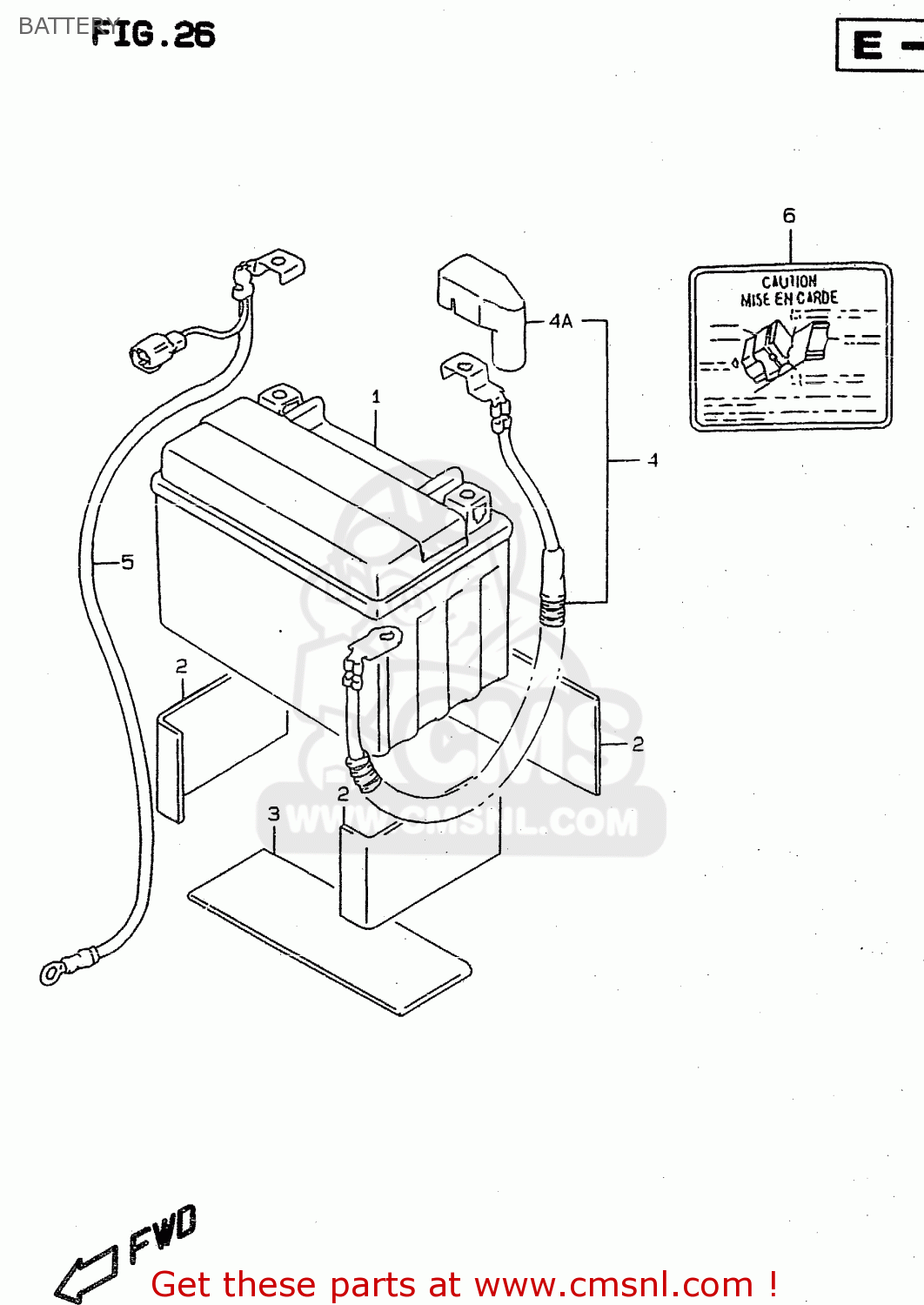

Battery diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365247D01
ref: 3
(45X90), <-33652-47D

CUSHION,BATTERY

€ 7.00

3382021E00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 27.00

3362433C10
ref: 4A

CAP,BATTERY PLUS

€ 6.50

3386046E00
ref: 5
<-33860-17E00

WIRE,BATTERY MINUS

€ 27.50

3369017E00
ref: 6

PLATE,BATTERY CAUTION

€ 3.00
