FRONT MASTER CYLINDER

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

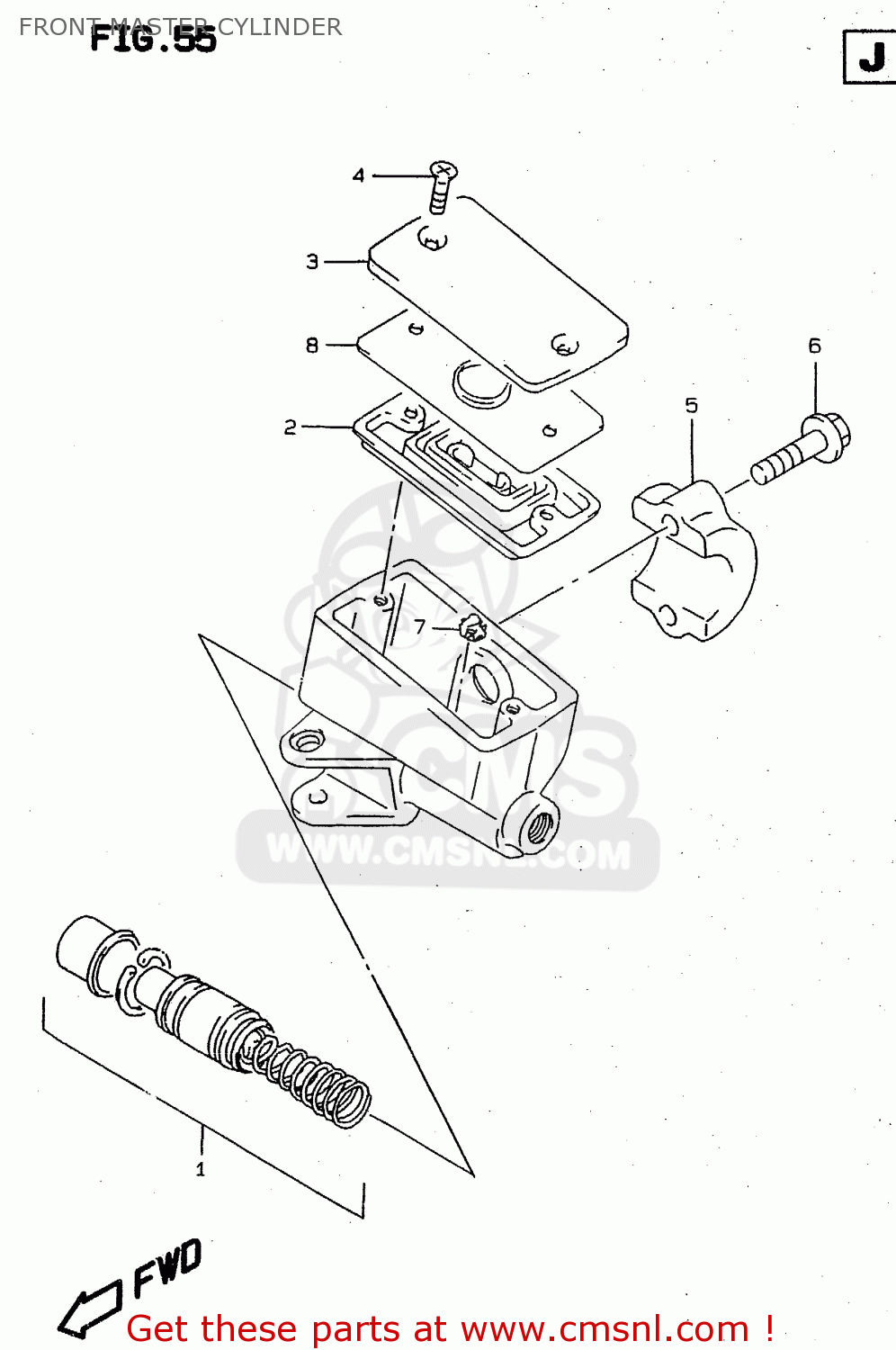

Front master cylinder diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT MASTER CYLINDER RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT MASTER CYLINDER RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

0

5960020C00
ref: 0

CYLINDER ASSY,FR MASTER

€ 262.50

1

5960045860
ref: 1

PISTON & CUP SET

€ 44.00

2

5966749460
ref: 2

5966749460

3

5966941C00
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967119B00
ref: 5

HOLDER

€ 18.50

6

5967519C00
ref: 6

BOLT(6X25)

€ 3.00

7

5966448B00
ref: 7

PROTECTOR

€ 8.00

8

5966841C00
ref: 8

PLATE,DIAPHRAGM

€ 8.00

all assemblies
