TAIL LAMP

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

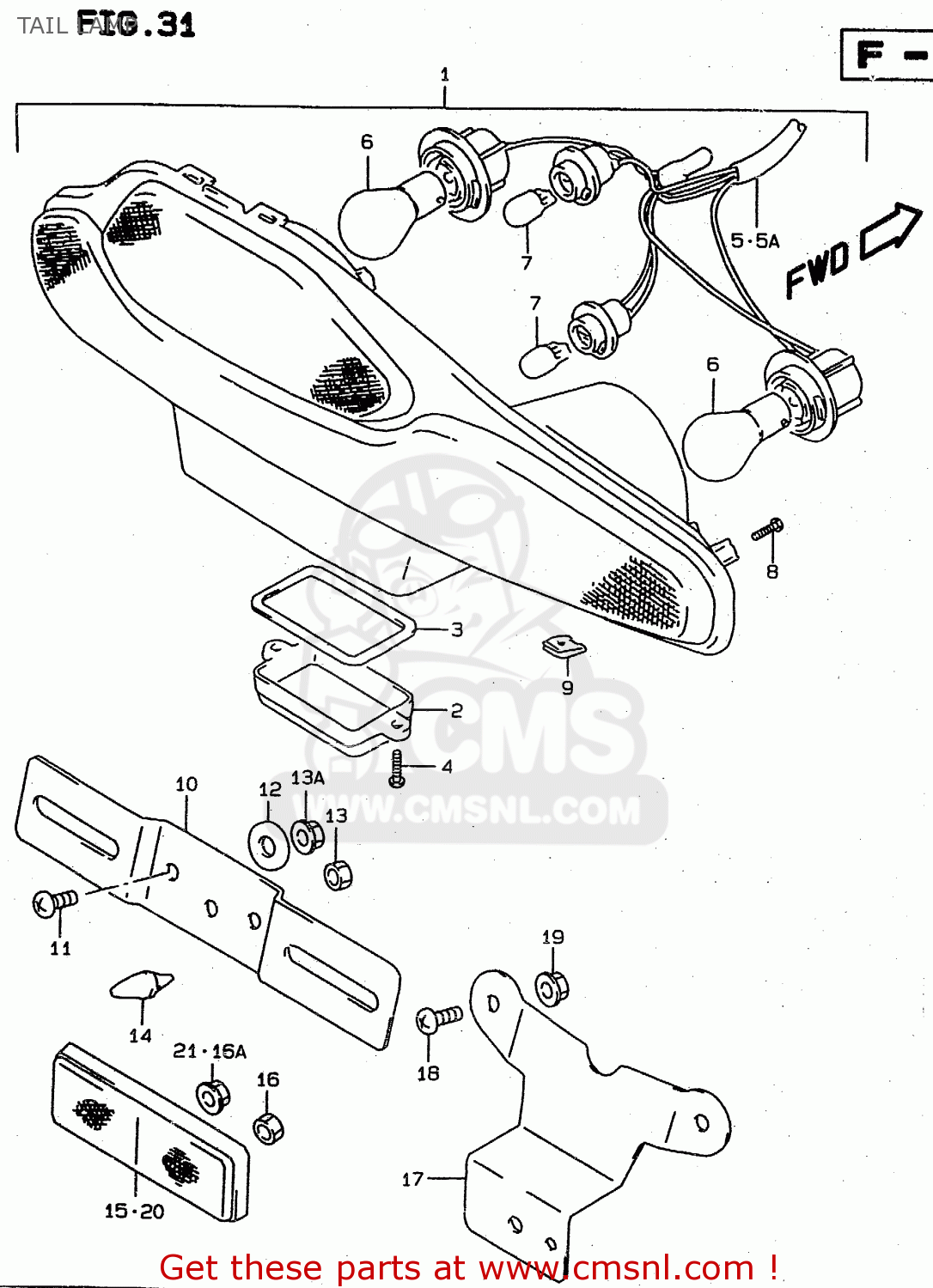

Tail lamp diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

TAIL LAMP RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

TAIL LAMP RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

3571021E01
ref: 1
<-35710-21E00

LAMP ASSY,RR COMBINATION

€ 273.00

2

3591221E00
ref: 2

LENS,LICENSE LAMP

€ 18.50

3

3591326D00
ref: 3
MODEL R/S

GASKET (NAS)

€ 3.50

4

0321104123
ref: 4

SCREW

€ 1.50

5

3571821E00
ref: 5
~F.NO. GT73A-101882

SOCKET ASSEMBLY

€ 81.00

5A

3571821E01
ref: 5A
F.NO. GT73A-101883~

SOCKET & CORD

€ 81.00

6

0947112045
ref: 6

BULB(12V21W)

€ 5.00

7

0947112081
ref: 7

BULB(12V5W)

€ 1.50

8

0351114123
ref: 8

TPG SCREW

€ 2.50

9-1

0914805021
ref: 9-1
MODEL R

NUT

€ 1.50

9-2

0914805038
ref: 9-2
MODEL S/T/V/W

NUT

€ 2.50

10

3592731E00
ref: 10

BRACKET, LICENSE PLATE

€ 12.50

11

0214206123
ref: 11

SCREW 6X12

€ 2.00

12-1

0916006096
ref: 12-1
MODEL R/S/T

WASHER (6.5X26X2.3)

€ 1.50

12-2

0916006088
ref: 12-2
MODEL V/W

WASHER(6.5X20X1.6)

€ 2.00

13

0831000063
ref: 13
MODEL R/S

NUT 6MM

€ 2.00

13A

0831610063
ref: 13A
MODEL T/V/W

NUT

€ 2.50

14

0932106026
ref: 14

CUSHION

€ 3.50

15

3597024D60
ref: 15

REFLECTOR ASSY,RR

€ 19.50

16

0831000053
ref: 16

NUT

€ 2.50

16A

0831620053
ref: 16A
E18, E22, E39

NUT

€ 2.00

17

3597421E00
ref: 17

BRACKET,RR REFLECTOR

€ 12.50

18

0214206123
ref: 18

SCREW 6X12

€ 2.00

19

0831610063
ref: 19

NUT

€ 2.50

20

3595043431
ref: 20
E39

REFLEX REFLECTOR,FR SIDE

€ 12.00

21

0831000053
ref: 21
E39

NUT

€ 2.50
