REAR CUSHION LEVER

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

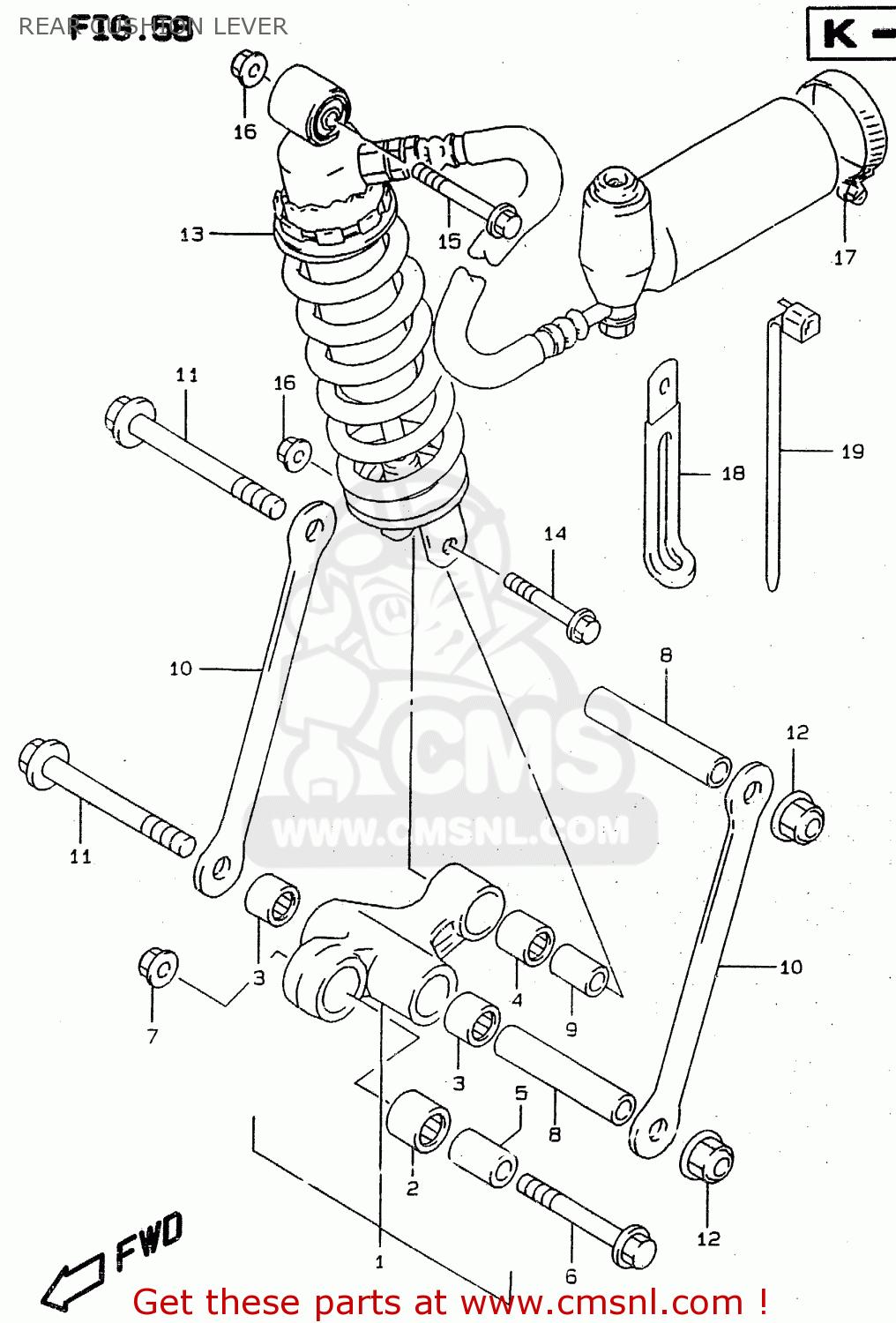

Rear cushion lever diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

REAR CUSHION LEVER RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

REAR CUSHION LEVER RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

6260033871
ref: 1

LEVER SET,RR CUSHION

€ 318.00

2

0926320064
ref: 2

BEARING(20X27X26)

€ 20.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6268401D00
ref: 5

SPACER,RR CUSHION LEVER FR

€ 17.00

6

6266842A02
ref: 6

BOLT,CUSHION LEVER FR

€ 7.00

7

0831931128
ref: 7

NUT 12MM

€ 4.00

8

0918012122
ref: 8

SPACER(12X17X85)

€ 15.00

9

6268440A10
ref: 9

SPACER,RR CUSHION LEVER

€ 11.50

10

6264137D00
ref: 10

ROD,REAR CUSHION LEVER

€ 13.50

11

0910312037
ref: 11

BOLT(12X115)

€ 11.00

12

0831931128
ref: 12

NUT 12MM

€ 4.00

13

6210031E01
ref: 13

ABSORBER ASSY,RR SHOCK

€ 1,093.50

14

0910310027
ref: 14

BOLT(10X58)

€ 3.00

15

0910310064
ref: 15

BOLT(10X50)

€ 4.50

16

0831931107
ref: 16

NUT

€ 3.00

17

0940250511
ref: 17

CLAMP

€ 8.50

18-1

0940408405
ref: 18-1
MODEL R/S

CLAMP

€ 3.50

18-2

0940408419
ref: 18-2
MODEL T/V/W

CLAMP(L:80)

€ 2.00

19

0940718403
ref: 19

CLAMP L:165

€ 2.50
