FRONT WHEEL

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

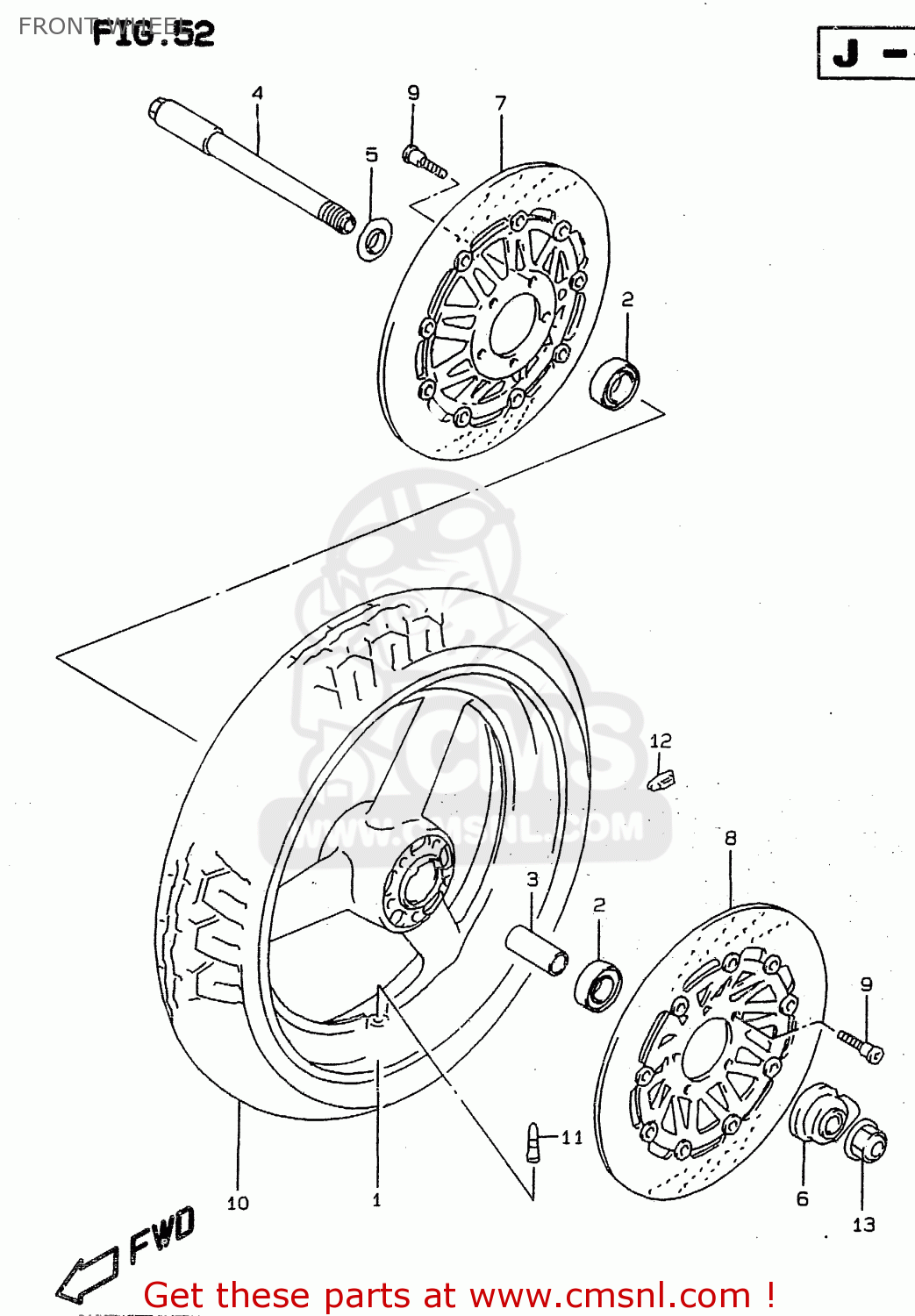

Front wheel diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT WHEEL RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRONT WHEEL RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1-1

5411117E111TU
ref: 1-1
RF900RR FOR 33J

WHEEL,FRONT (MT3.50X17)

€ 636.00

1-2

5411117E1135W
ref: 1-2
FOR 19A, 1HU, 1UH

WHEEL,FRONT (MT3.50X17)

€ 700.50

1-3

5411117E11Y22
ref: 1-3
RF900RS2 FOR D8A

WHEEL,FR(MT3.50X17)

€ 564.50

1-4

5411117E1112R
ref: 1-4
FOR F3C, E6M, 7AY, G

WHEEL,FRONT (17XMT3.50)(

€ 652.00

2

0812362047
ref: 2

BEARING

€ 17.00

3

0918020103
ref: 3

SPACER(20.8X27.2X74)

€ 31.50

4

5471131E00
ref: 4

AXLE,FR

€ 97.50

5

5474017C00
ref: 5

SPACER,FR HUB BEARING,R

€ 17.50

6

5460017C01
ref: 6

BOX ASSY,SPEEDOMETER GEAR

€ 139.00

7-1

5921031E00
ref: 7-1
MODEL R/S/T

DISC, FRONT BRAKE RH

€ 258.50

7-2

5921031E01
ref: 7-2
MODEL V

DISC,FR BRAKE,R

€ 0.00

7-3

5921031E10
ref: 7-3
MODEL W

DISC,FR BRAKE,R

€ 241.50

8-1

5922031E00
ref: 8-1
MODEL R/S/T

DISC COMP,FRONT BRAKE

€ 258.50

8-2

5922031E01
ref: 8-2
MODEL V

DISC,FR BRAKE,L

€ 0.00

8-3

5922031E10
ref: 8-3
MODEL W

DISC,FR BRAKE,L

€ 241.50

9

0910608125
ref: 9

BOLT 8X33

€ 6.00

10-1

5511031E00
ref: 10-1

TIRE,FRONT 120/70 ZR17

€ 246.00

10-2

5511031E10
ref: 10-2
MODEL S

TIRE,FRONT 120/70 ZR17

€ 246.00

11

4313024A11
ref: 11

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00

12-1

5541100A00
ref: 12-1

BALANCER,WHEEL (10G)

€ 6.50

12-2

5541200A01
ref: 12-2

BALANCER,WHEEL (20G)

€ 7.00

13

0915920006
ref: 13

NUT

€ 19.00
