CYLINDER

RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

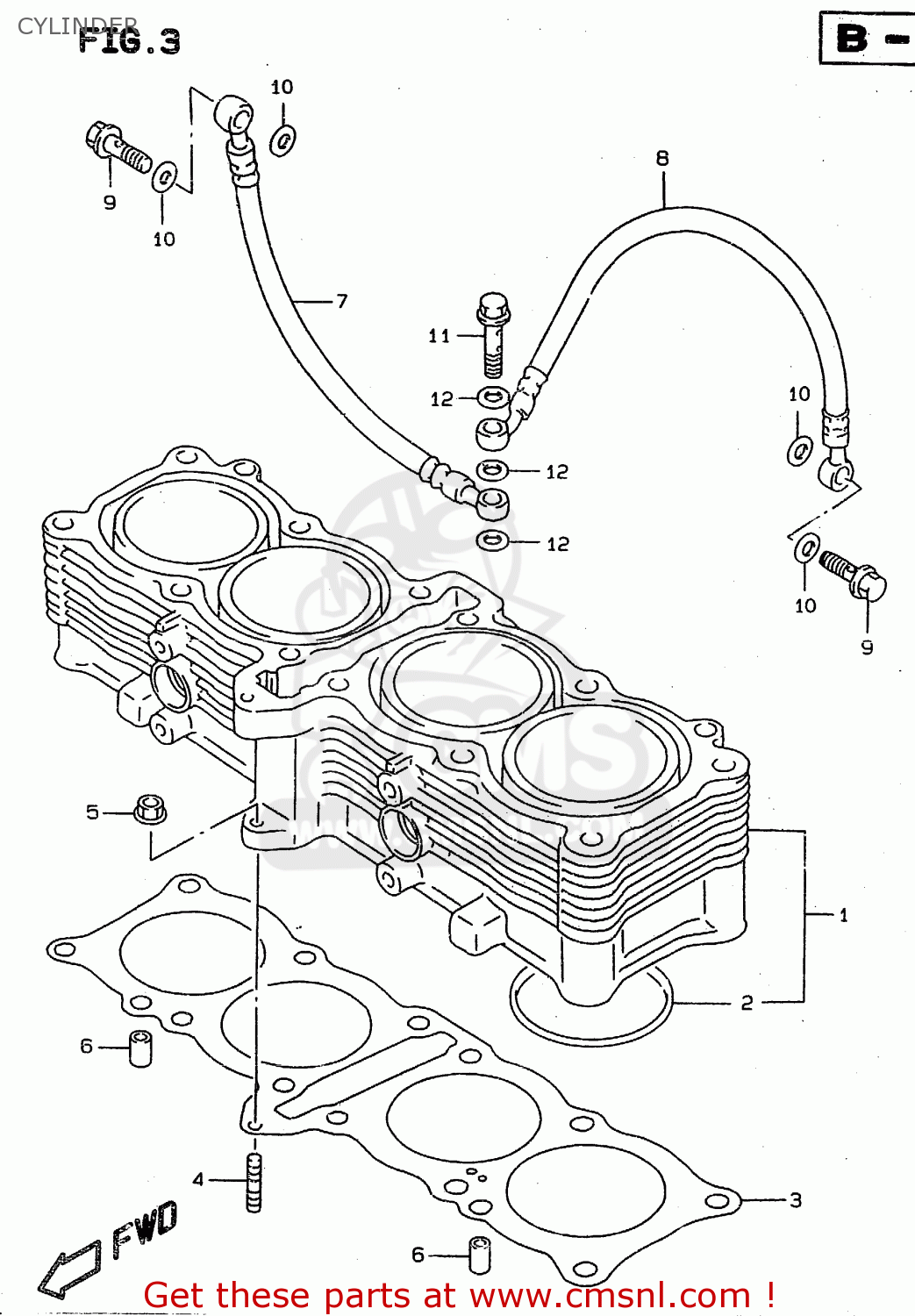

Cylinder diagram RF900R 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1121031E00
ref: 1

CYLINDER COMP

€ 908.00

0928071004
ref: 2

O RING(D:2.6,ID:69.6)

€ 19.00

1124131E00
ref: 3

GASKET,CYLINDER

€ 35.50

0142106203
ref: 4

STUD,M6X1X32

€ 2.50

0831610063
ref: 5

NUT

€ 2.50

0421111189
ref: 6

PIN

€ 2.00

1128121E00
ref: 7

HOSE,CYLINDER HEAD OIL,R

€ 77.50

1128221E00
ref: 8

HOSE,CYLINDER HEAD OIL,L

€ 91.00

1128417E00
ref: 9

BOLT,OIL PIPE UNION,NO

€ 15.00

0916808016
ref: 10

GASKET(8.2X14X1) (NAS)

€ 1.00

1128532C00
ref: 11

BOLT,OIL PIPE UNION,NO

€ 16.50

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00
