BATTERY (E2, E4, E15, E18, E21)
DR125S 1984 (E)

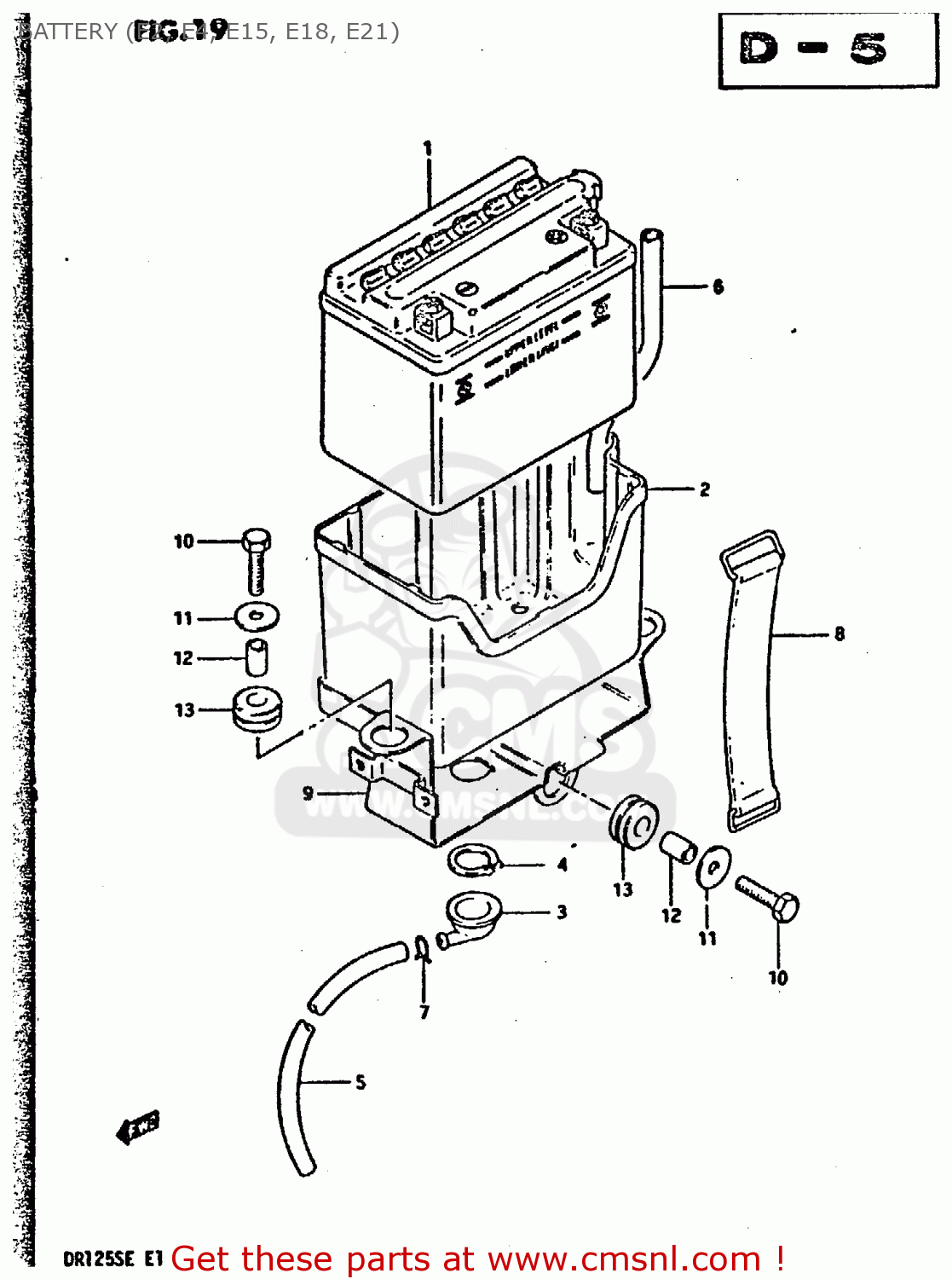

Battery (e2, e4, e15, e18, e21) diagram DR125S 1984 (E)
BATTERY (E2, E4, E15, E18, E21) DR125S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
3361002500
ref: 1
BATTERY ASSY(YB4L-B,12V4.2AH)
€ 26.50
2
3366138211
ref: 2
CASE, BATTERY
€ 14.50
3
3366232401
ref: 3
FUNNEL,BATTERY EXHAUST
€ 0.00
4
0833131178
ref: 4
CIRCLIP
€ 2.00
5
3368031003
ref: 5
HOSE,BATTERY EXHAUST
€ 4.50
6
3368147000
ref: 6
HOSE, EXHAUST (L:45)
€ 4.50
7
0940108301
ref: 7
CLIP
€ 1.50
8
0946200043
ref: 8
BAND
€ 4.50
9
4154038211
ref: 9
HOLDER, BATTERY
€ 25.50
10
0110706168
ref: 10
BOLT, UPPER
€ 3.00
11
0916006027
ref: 11
WASHER (6.5X20X1.2)
€ 2.00
12
0918006038
ref: 12
SPACER(6.1X9X7.5)
€ 2.00
13
0932008007
ref: 13
CUSHION
€ 4.00
