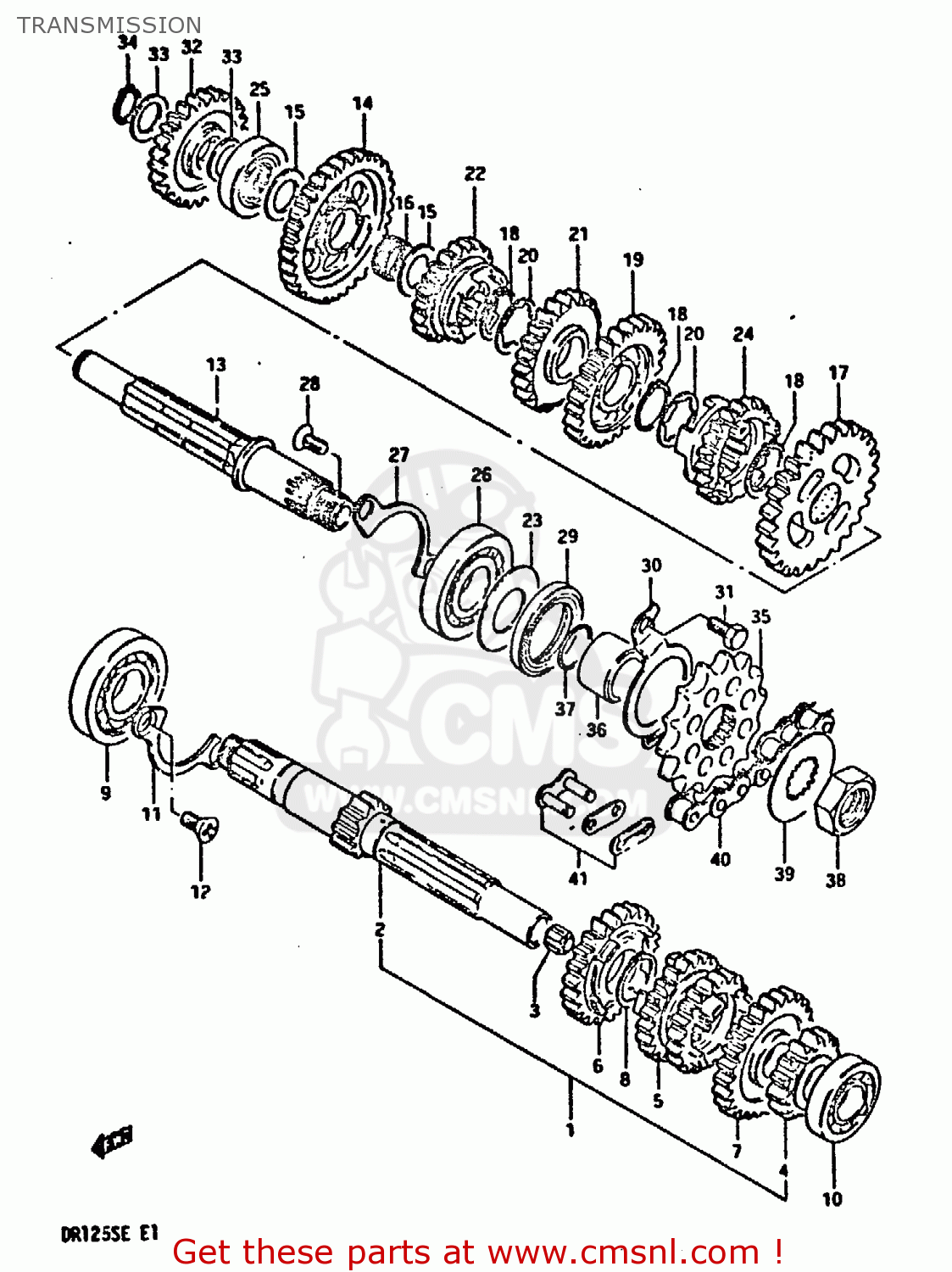

TRANSMISSION

ref

part #

description

quantity

1

2412005201
ref: 1

SHAFT,COUNTER

€ 132.00

2

2412105201
ref: 2

SHAFT,COUNTER

€ 97.00

3

2412536200
ref: 3

BUSH

€ 0.00

4

2422105200
ref: 4

GEAR,SECOND DRIVE

€ 46.00

5

2423105201
ref: 5

GEAR,THIRD & FOURTH DRIVE,N

€ 61.50

6

2425105202
ref: 6

GEAR,FIFTH DRIVE

€ 54.50

7

2426005200
ref: 7

GEAR,SIXTH DRIVE

€ 31.50

8

0938020009
ref: 8

CIRCLIP

€ 2.00

9

0926220062
ref: 9

BEARING

€ 28.00

10

0812360020
ref: 10

BEARING, LH

€ 16.00

11

2474105200
ref: 11

RETAINER,DRIVE SHAFT BEARING

€ 3.50

12

0212206128
ref: 12

SCREW

€ 3.00

13

2413005200
ref: 13

SHAFT,DRIVE

€ 93.00

14

2431105200
ref: 14

GEAR,FIRST DRIVEN

€ 53.00

15

0821115251
ref: 15

WASHER

€ 2.00

16

0926315023
ref: 16

BEARING(15X19X7.8)

€ 10.50

17

2432005200
ref: 17

GEAR,SECOND DRIVEN

€ 40.50

18

0938020009
ref: 18

CIRCLIP

€ 2.00

19

2433105200
ref: 19

GEAR,THIRD DRIVEN

€ 50.00

20

0916720011
ref: 20

WASHER,LOCK

€ 2.50

21

2434105201
ref: 21

GEAR,FOURTH DRIVEN

€ 50.00

22

2435105201
ref: 22

GEAR,FIFTH DRIVEN

€ 47.00

23

2435905200
ref: 23

WASHER,OIL SEALING

€ 4.50

24

2436105200
ref: 24

GEAR,SIXTH DRIVEN

€ 50.00

25

0926315024
ref: 25

BEARING(15X33X12)

€ 50.00

26

0926220062
ref: 26

BEARING

€ 28.00

27

2474105200
ref: 27

RETAINER,DRIVE SHAFT BEARING

€ 3.50

28

0212206128
ref: 28

SCREW

€ 3.00

29

0928327010
ref: 29

SEAL,OIL(27X40X6)

€ 8.00

30

2475105201
ref: 30

PLATE,DRIVESHAFT OIL

€ 3.00

31

0110706108
ref: 31

BOLT

€ 2.00

32

2626005201
ref: 32

GEAR,KICK STARTER IDLE(NT:26)

€ 35.50

33

0821115201
ref: 33

WASHER

€ 2.00

34

0833131159
ref: 34

CIRCLIP,15MM

€ 2.00

35

2751141301
ref: 35

SPROCKET,ENGINE

€ 19.00

36

2753105200
ref: 36

SPACER

€ 13.50

37

0928019005
ref: 37

O RING(D:2.4,ID:19)

€ 2.00

38

0914016017
ref: 38

NUT

€ 4.00

39

0916720012
ref: 39

WASHER,LOCK

€ 2.50

40

2760005210
ref: 40

CHAIN ASSEMBLY,DRIVE

€ 46.50

41-1

2762046911
ref: 41-1

JOINT SET,CHAIN

€ 4.50

41-2

2762005220
ref: 41-2

JOINT ASSEMBLY,CHAIN

€ 7.00
