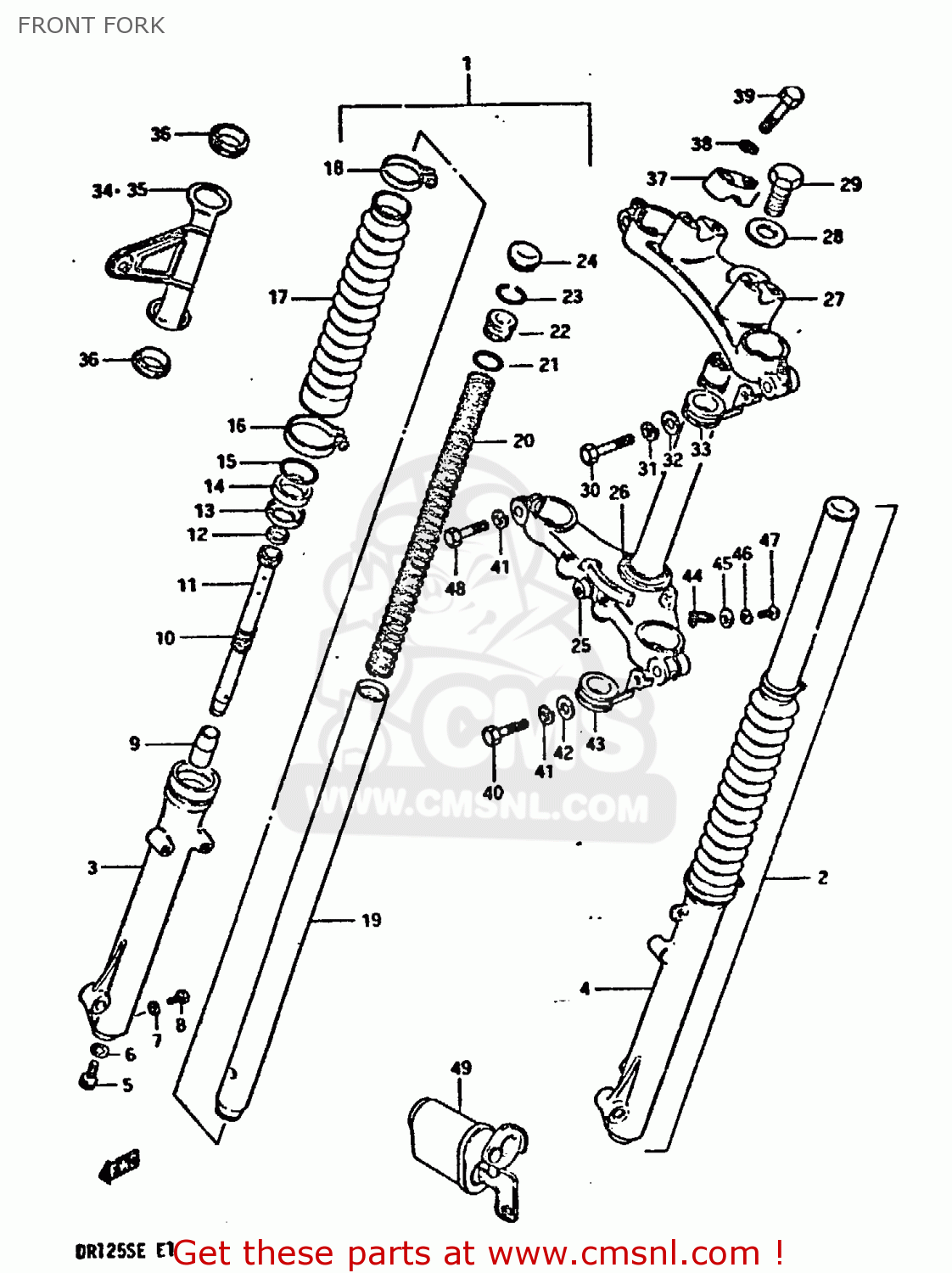

FRONT FORK

ref

part #

description

quantity

1-1

5110305215019
ref: 1-1

DAMPER ASSY, RH (BLACK)

€ 332.50

1-2

511030521519F
ref: 1-2

DAMPER ASSY, RH (BLUE)

€ 332.50

2-1

5110405215019
ref: 2-1

DAMPER ASSY, LH (BLACK)

€ 369.00

2-2

511040521519F
ref: 2-2

DAMPER ASSY, LH (BLUE)

€ 369.00

3

5113048500
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 163.00

4

5114048500
ref: 4

TUBE,FORK,LEFT,OUTER

€ 163.00

5

5114748130
ref: 5

BOLT(8X27)

€ 3.50

6

5114831030
ref: 6

GASKET (NAS)

€ 4.00

7

5118331030
ref: 7

GASKET,DRAIN,PLUG (NAS)

€ 4.00

8

0110706088
ref: 8

BOLT

€ 2.50

9

5119548000
ref: 9

PIECE,OIL LOCK

€ 8.50

10

5117748700
ref: 10

SPRING,REBOUND

€ 4.50

11

5114605205
ref: 11

CYLINDER,FR FORK

€ 21.00

12

5119633130
ref: 12

RING,PISTON

€ 7.50

13

5116805210
ref: 13

SPACER

€ 3.00

14

5115348500
ref: 14

OIL SEAL,FRONT FORK

€ 8.00

15

5115648500
ref: 15

CIRCLIP,FORK OIL SEAL

€ 2.50

16

5157613620
ref: 16

BAND,FR FORK BOOT

€ 5.00

17-1

5157113620019
ref: 17-1

BOOT(BLACK)

€ 50.50

17-2

515711362019F
ref: 17-2

BOOT,FR FORK COVER

€ 53.50

18

5157513620
ref: 18

BAND,BOOT,UPPER

€ 5.00

19

5111005200
ref: 19

TUBE,FORK INNER

€ 176.00

20

5117105205
ref: 20

SPRING,FRONT FORK

€ 0.00

21

5118133131
ref: 21

O RING

€ 5.00

22

5117548500
ref: 22

SEAT,SPRING

€ 9.00

23

5116948500
ref: 23

RING,STOPPER

€ 2.00

24

5118905215
ref: 24

CAP

€ 6.00

25-1

514100521508C
ref: 25-1

STEN, STEERING (GOLD)

€ 162.50

25-2

514100523508C
ref: 25-2
E15

STEM,STEERING

€ 162.50

26

5162133001
ref: 26

RACE,STEERING OUTER LWR

€ 10.00

27

513110521508C
ref: 27

HEAD, STEERING STEM (GOLD)

€ 102.00

28

5135622012
ref: 28

WASHER,STEM HEAD(10.5X30X3.2)

€ 4.00

29

5135120010
ref: 29

BOLT,FORK INNER TUBE

€ 25.00

30

5145127431
ref: 30

BOLT

€ 4.50

31

0832121106
ref: 31

LOCK WASHER

€ 3.00

32

0832221108
ref: 32

WASHER

€ 2.50

33

5145505211
ref: 33

GUIDE,CABLE

€ 0.00

34

5153005210
ref: 34

BRACKET,HEADLAMP,RIGHT

€ 23.00

35

5154005210
ref: 35

BRACKET,HEADLAMP,LEFT

€ 23.00

36

5155305210
ref: 36

CUSHION,HEADLAMP BRACKET

€ 3.50

37

562114668008C
ref: 37

HOLDER,HANDLEBAR

€ 9.50

38

0832121088
ref: 38

LOCK WASHER

€ 2.00

39

0120408357
ref: 39

BOLT

€ 3.50

40

0110712458
ref: 40

BOLT 12X45

€ 5.50

41

0832121128
ref: 41

WASHER,LOCK 12

€ 2.50

42

0832221128
ref: 42

WASHER

€ 2.00

43

5145205211
ref: 43

GUIDE,CABLE

€ 0.00

44

5145248500
ref: 44

CLIP

€ 6.00

45

0832221068
ref: 45

WASHER

€ 2.00

46

0832121068
ref: 46

LOCK WASHER

€ 2.50

47

0211206128
ref: 47

SCREW 6X12

€ 2.00

48

0110412408
ref: 48

BOLT

€ 3.00

49

5190045400
ref: 49
E15

LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE

€ 0.00

all assemblies
