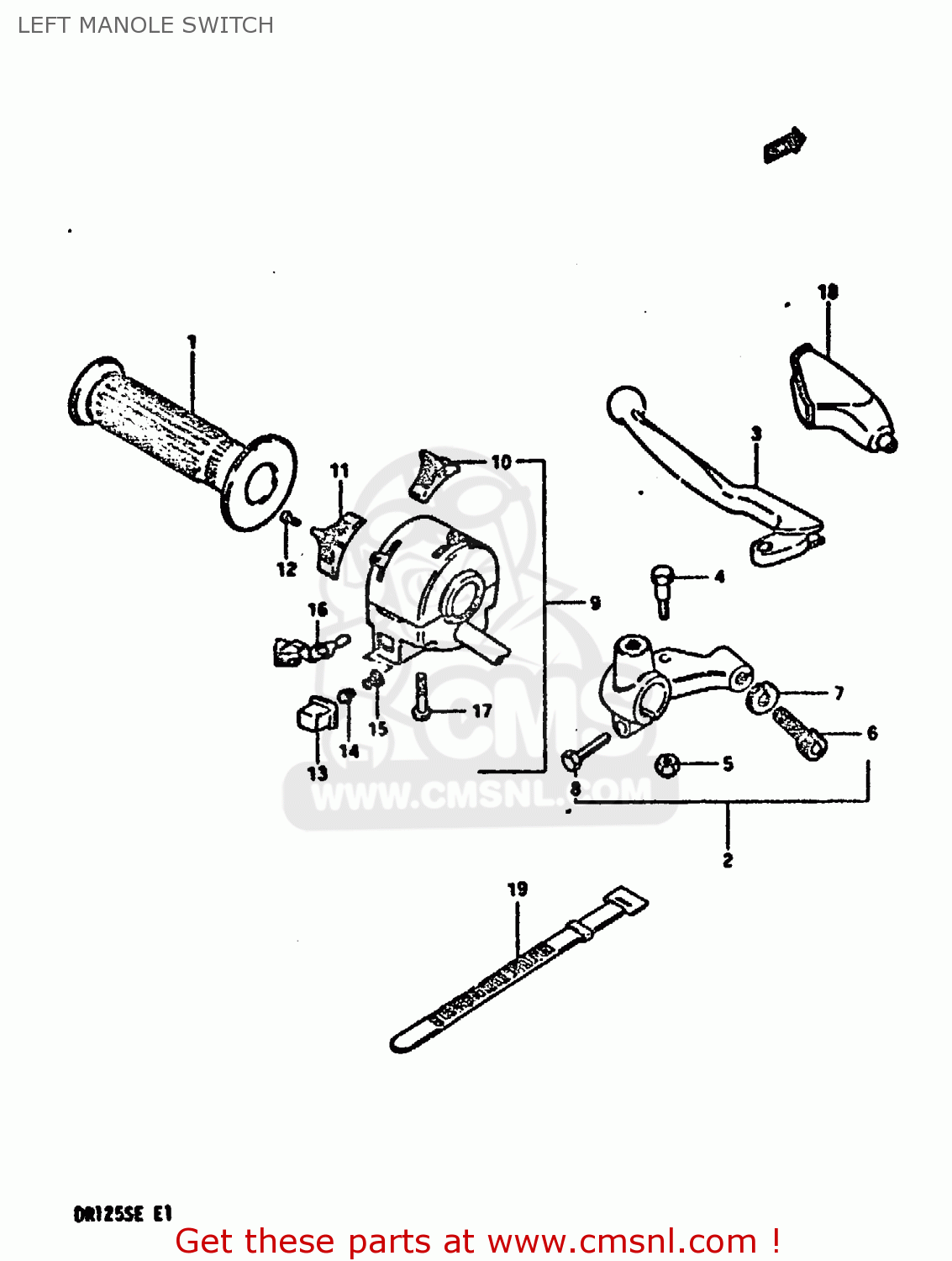

LEFT MANOLE SWITCH

ref

part #

description

quantity

1

5721145020
ref: 1

GRIP,L

€ 9.00

2

5750037200
ref: 2

LEVER ASSY,CLUTCH

€ 49.50

3

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

4

5743111011
ref: 4

BOLT,LEVER

€ 6.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

7

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

8

5745149100
ref: 8

BOLT,CLUTCH LEVER HOLDER

€ 3.00

9-1

3740038210
ref: 9-1

SWITCH ASSY, HANDLE LH

€ 100.50

9-2

3740038240
ref: 9-2
E2

SWITCH ASSY,HANDLE,L

€ 131.00

9-3

3740038200
ref: 9-3
E4, E15, E18, E21

SWITCH ASSY, HANDLE LH

€ 108.00

9-4

3740038230
ref: 9-4
E24

SWITCH ASSY, HANDLE LH

€ 0.00

10

3741145012
ref: 10

KNOB,LIGHTING SWITCH

€ 4.50

11

3742145012
ref: 11

KNOB,DIMMER SWITCH

€ 5.50

12

0211203068
ref: 12

SCREW

€ 2.00

13

5737145000
ref: 13

BUTTON,HORN

€ 3.00

14

5737245000
ref: 14

CONTACT

€ 3.00

15

5738245000
ref: 15

SPRING

€ 2.50

16

3751345011
ref: 16

KNOB,TURNSIGNAL

€ 6.50

17

0211205258
ref: 17

SCREW

€ 2.00

18

5734140001
ref: 18

COVER,CLUTCH LEVER

€ 7.50

19

0940712402
ref: 19

CLAMP(L:120)

€ 3.00

all assemblies
