RIONT HANOLE SMITCH (E2, E4, E6, E15, E18, E21, E24)
DR125S 1984 (E)

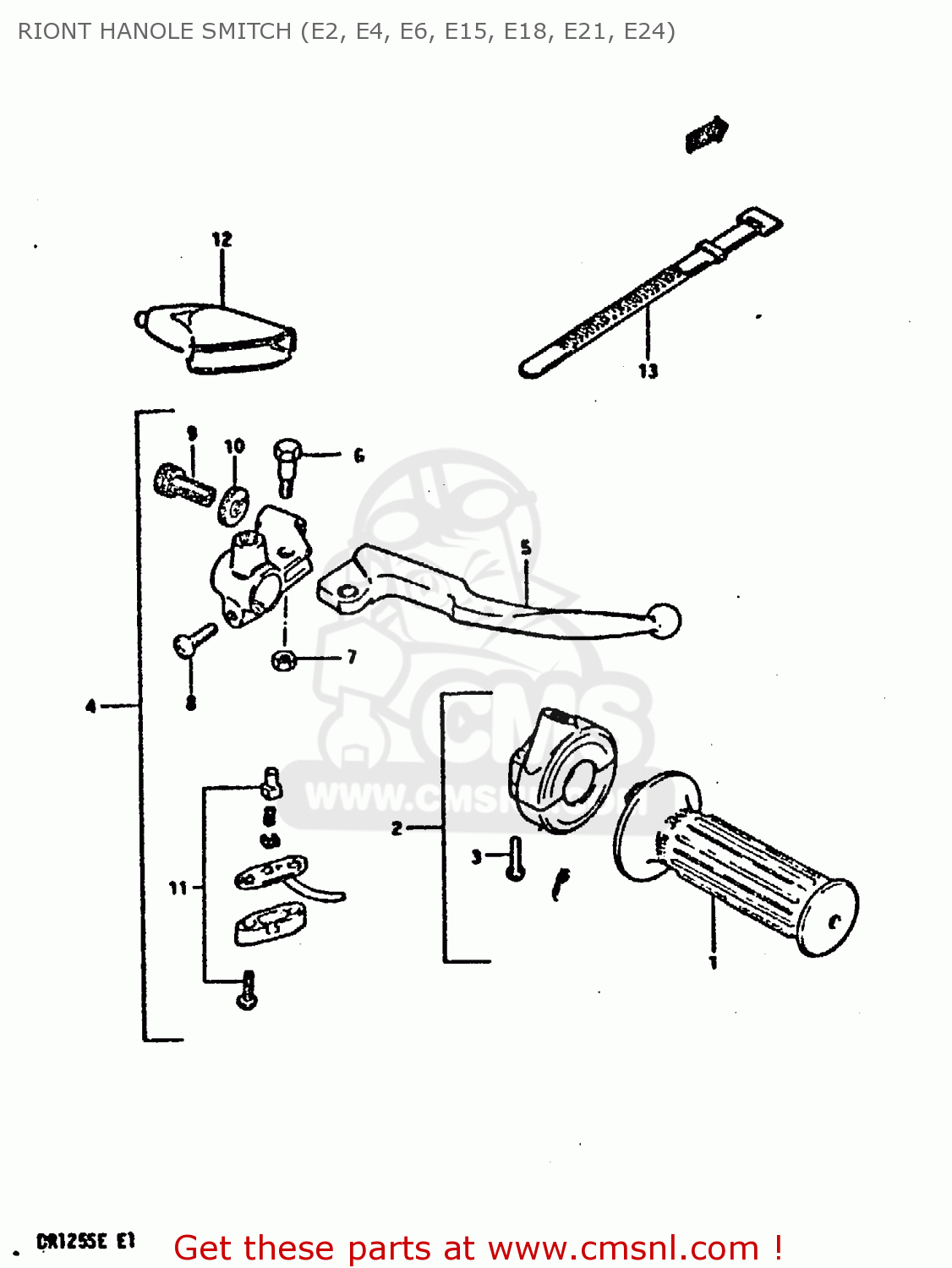

Riont hanole smitch (e2, e4, e6, e15, e18, e21, e24) diagram DR125S 1984 (E)
RIONT HANOLE SMITCH (E2, E4, E6, E15, E18, E21, E24) DR125S 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
5711037200
ref: 1
GRIP,THROTTLE
€ 20.50
2
5710037400
ref: 2
CASE ASSY,THROTTLE
€ 52.50
3
0211205200
ref: 3
SCREW
€ 0.00
4
5730038220
ref: 4
LEVER ASSEMBLY,BRAKE
€ 30.00
5
5742026400
ref: 5
LEVER,BRAKE
€ 28.50
6
5743111011
ref: 6
BOLT,LEVER
€ 6.00
7
0831921068
ref: 7
NUT 6MM
€ 2.00
8
0211206208
ref: 8
SCREW
€ 2.00
9
5744111010
ref: 9
ADJUSTER,CABLE
€ 8.00
10
5744211010
ref: 10
NUT,CABLE ADJUSTER
€ 4.00
11
5746010400
ref: 11
SWITCH ASSY,STOP
€ 18.50
12
5734125601
ref: 12
DUST SEAL,BRAKE/CLUTCH
€ 10.00
13
0940712402
ref: 13
CLAMP(L:120)
€ 3.00
