FUEL COCK

DR125S 1984 (E)

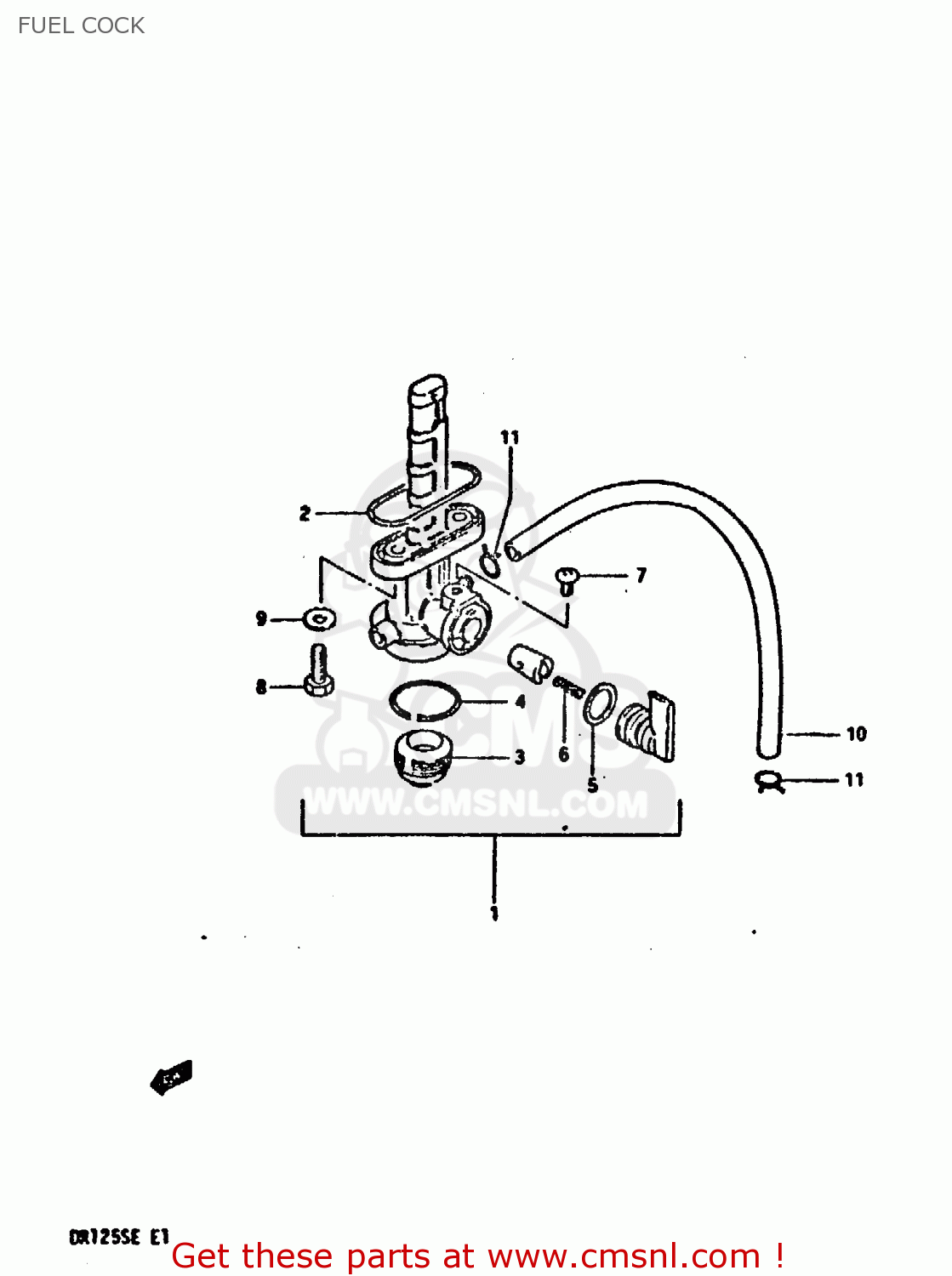

Fuel cock diagram DR125S 1984 (E)

FUEL COCK DR125S 1984 (E)

FUEL COCK DR125S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1

4430038201
ref: 1

COCK ASSEMBLY,FUEL

€ 64.50

2

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

3

4434728071
ref: 3

CUP,STRAINER

€ 7.50

4

4434628070
ref: 4

GASKET,FILTER (NAS)

€ 2.50

5

4435332470
ref: 5

O-RING

€ 7.50

6

4435732470
ref: 6

SPRING

€ 2.00

7

4434341370
ref: 7

SCREW

€ 2.00

8

0912806006
ref: 8

BOLT(6X20)

€ 2.00

9

0916806010
ref: 9

GASKET

€ 2.00

10

0934305129
ref: 10

HOSE

€ 13.00

11

0940108401
ref: 11

CLIP

€ 1.50
