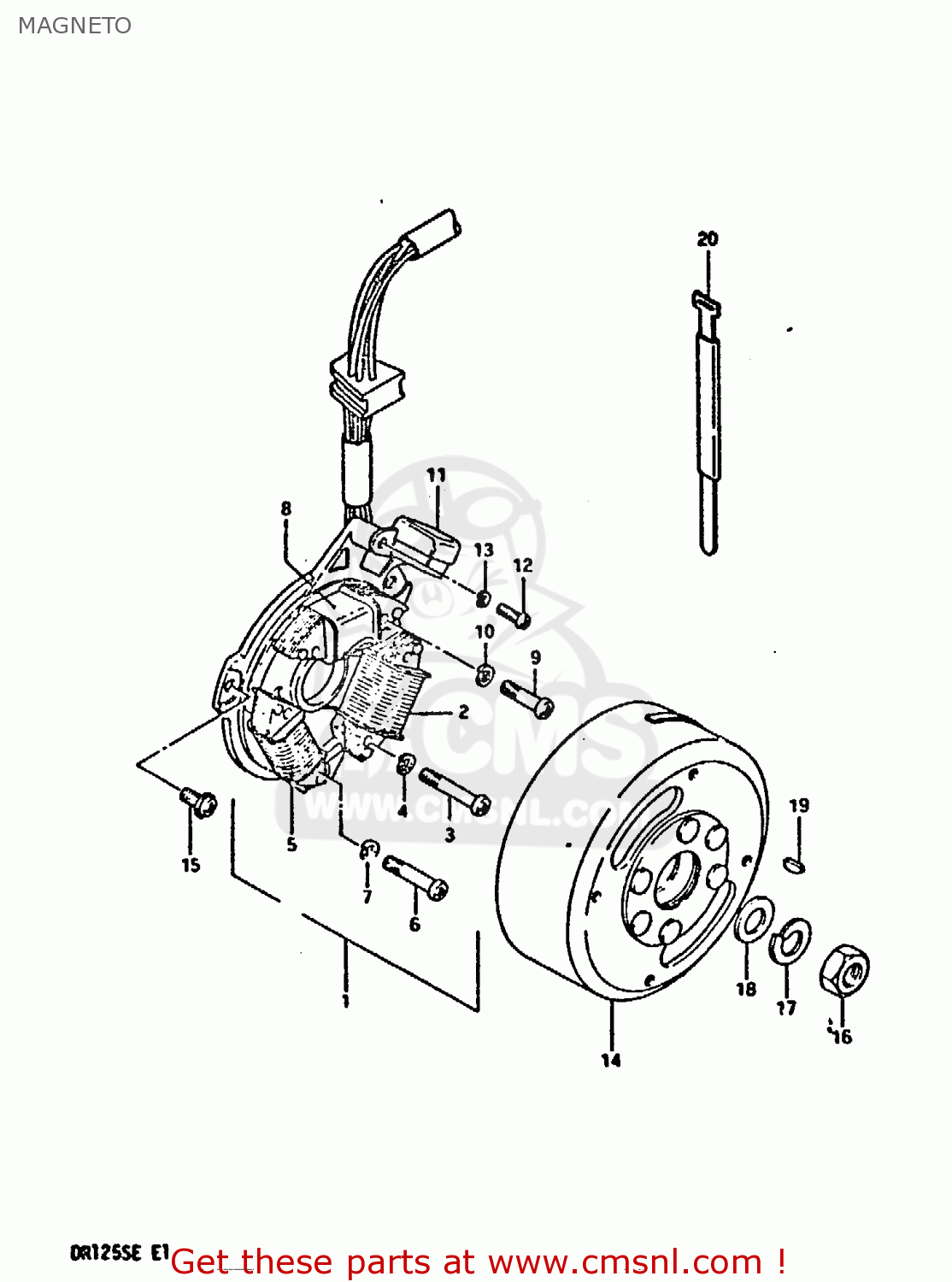

MAGNETO

ref

part #

description

quantity

1

3210105210
ref: 1

STATOR ASSEMBLY

€ 466.00

2

3212005210
ref: 2

COIL,LIGHTING

€ 0.00

3

0211205358
ref: 3

SCREW

€ 1.50

4

0832121058
ref: 4

LOCK WASHER

€ 2.00

5

3213005210
ref: 5

COIL,CHARGING

€ 0.00

6

0211205308
ref: 6

SCREW

€ 1.50

7

0832121058
ref: 7

LOCK WASHER

€ 2.00

8

3214005210
ref: 8

COIL,IGNITION PRIMARY

€ 0.00

9

0211205258
ref: 9

SCREW

€ 2.00

10

0832121058
ref: 10

LOCK WASHER

€ 2.00

11

3215005210
ref: 11

COIL

€ 66.50

12

0211204128
ref: 12

SCREW

€ 1.50

13

0832121048
ref: 13

LOCK WASHER

€ 2.00

14

3210205210
ref: 14

ROTOR,FLYWHEEL

€ 412.00

15

0913905011
ref: 15

SCREW(5X14)

€ 3.00

16

0914010003
ref: 16

NUT (10MM)

€ 3.50

17

0832121108
ref: 17

LOCK WASHER

€ 2.00

18

0832221108
ref: 18

WASHER

€ 2.50

19

0834131039
ref: 19

KEY

€ 2.00

20

0940711301
ref: 20

CLAMP L:110

€ 6.00

all assemblies
