SHOCK ABSORBER

DR125S 1984 (E)

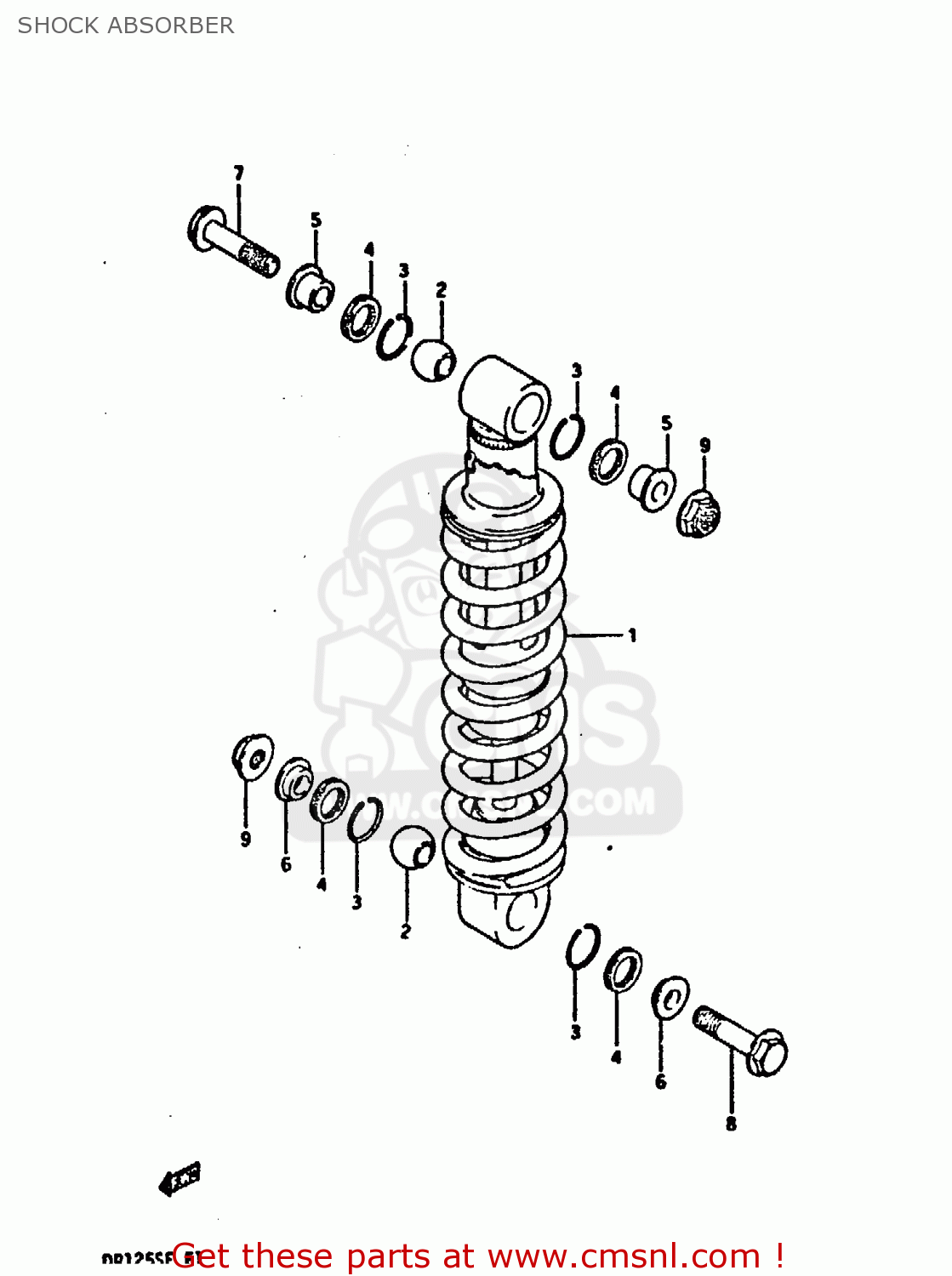

Shock absorber diagram DR125S 1984 (E)

SHOCK ABSORBER DR125S 1984 (E)

SHOCK ABSORBER DR125S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1

6210005240
ref: 1

ABSORBER ASSEMBLY,REAR SHOCK

€ 323.50

2

6217505220
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

3

6227720900
ref: 3

RING

€ 1.50

4

6222605220
ref: 4

DUST SEAL

€ 5.50

5

6268405220
ref: 5

COLLAR,UPR

€ 0.00

6

6268605220
ref: 6

COLLAR,LWR

€ 0.00

7

0910310050
ref: 7

BOLT(10X60)

€ 5.50

8

0910310045
ref: 8

BOLT(10X50)

€ 3.50

9

0631931108
ref: 9

NUT

€ 0.00
