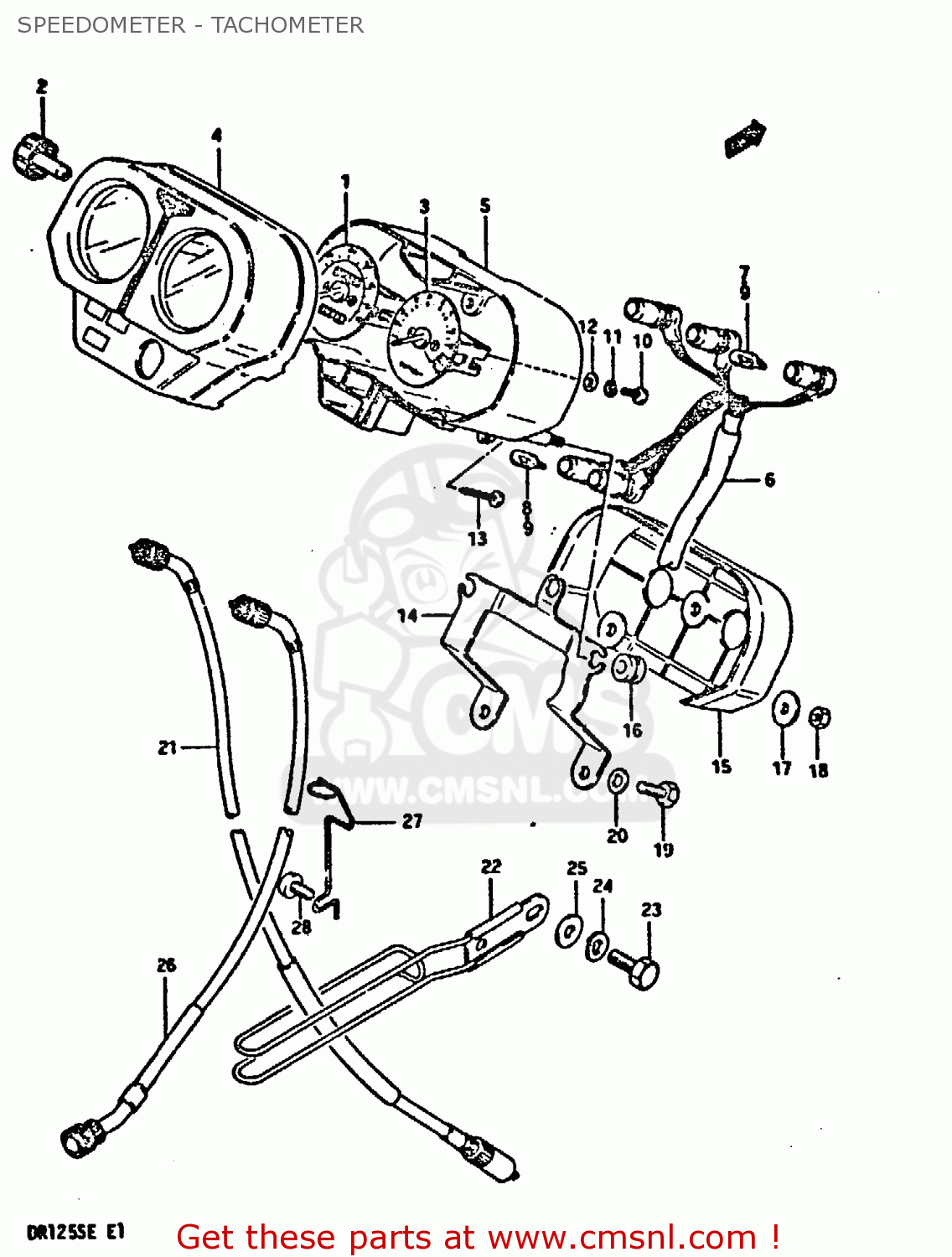

SPEEDOMETER - TACHOMETER - DR125S 1984 (E)

ref

part #

description

quantity

1-1

3412005210
ref: 1-1

SPEEDOMETER (KILO)

€ 180.00

1-2

3412005240
ref: 1-2

SPEEDOMETER

€ 0.00

2

3498038200
ref: 2

KNOB,TRIP

€ 6.00

3

3422005200
ref: 3

TACHOMETER

€ 126.50

4

3415138200
ref: 4

HOOD, METER

€ 41.50

5

3411138200
ref: 5

CASE,INNER

€ 43.00

6

3417338200
ref: 6

SOCKET

€ 46.50

7

0947106052
ref: 7
E1, E6, E24

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

8

0947106053
ref: 8
E1, E6, E24

BULB(6V,3W)

€ 2.50

9

0947112028
ref: 9
E2, E4, E15, E18, E2

BULB(12V3.4W,T10)

€ 3.50

10

0211204108
ref: 10

SCREW 4X10

€ 2.00

11

0832121048
ref: 11

LOCK WASHER

€ 2.00

12

0832221048
ref: 12

WASHER

€ 2.00

13

0913204005
ref: 13

SCREW

€ 2.00

14

3495005200
ref: 14

BRACKET,METER

€ 25.00

15

3415238200
ref: 15

COVER

€ 22.00

16

3418938200
ref: 16

CUSHION

€ 4.00

17

0916005017
ref: 17

WASHER (5.5X16X1.2)

€ 2.50

18

0831022058
ref: 18

NUT

€ 2.50

19

0110706128
ref: 19

BOLT

€ 2.00

20

0832221068
ref: 20

WASHER

€ 2.00

21

3491005210
ref: 21

CABLE ASSY,SPE

€ 75.00

22

3493005200
ref: 22

GUIDE,CABLE

€ 16.00

23

0110708128
ref: 23

BOLT 8X12

€ 2.50

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

0832211088
ref: 25

WASHER

€ 2.00

26-1

3494038211
ref: 26-1
FOR UP FENDER

CABLE,TACHOMETER

€ 20.50

26-2

3494044111
ref: 26-2
FOR DOWN FENDER

CABLE ASSEMBLY,TACHOMETER

€ 49.00

27

3494805210
ref: 27

GUIDE,TACHOMETER CABLE

€ 4.00

28

0215206128
ref: 28

SCREW, FRONT

€ 2.00

SPEEDOMETER - TACHOMETER

all assemblies
