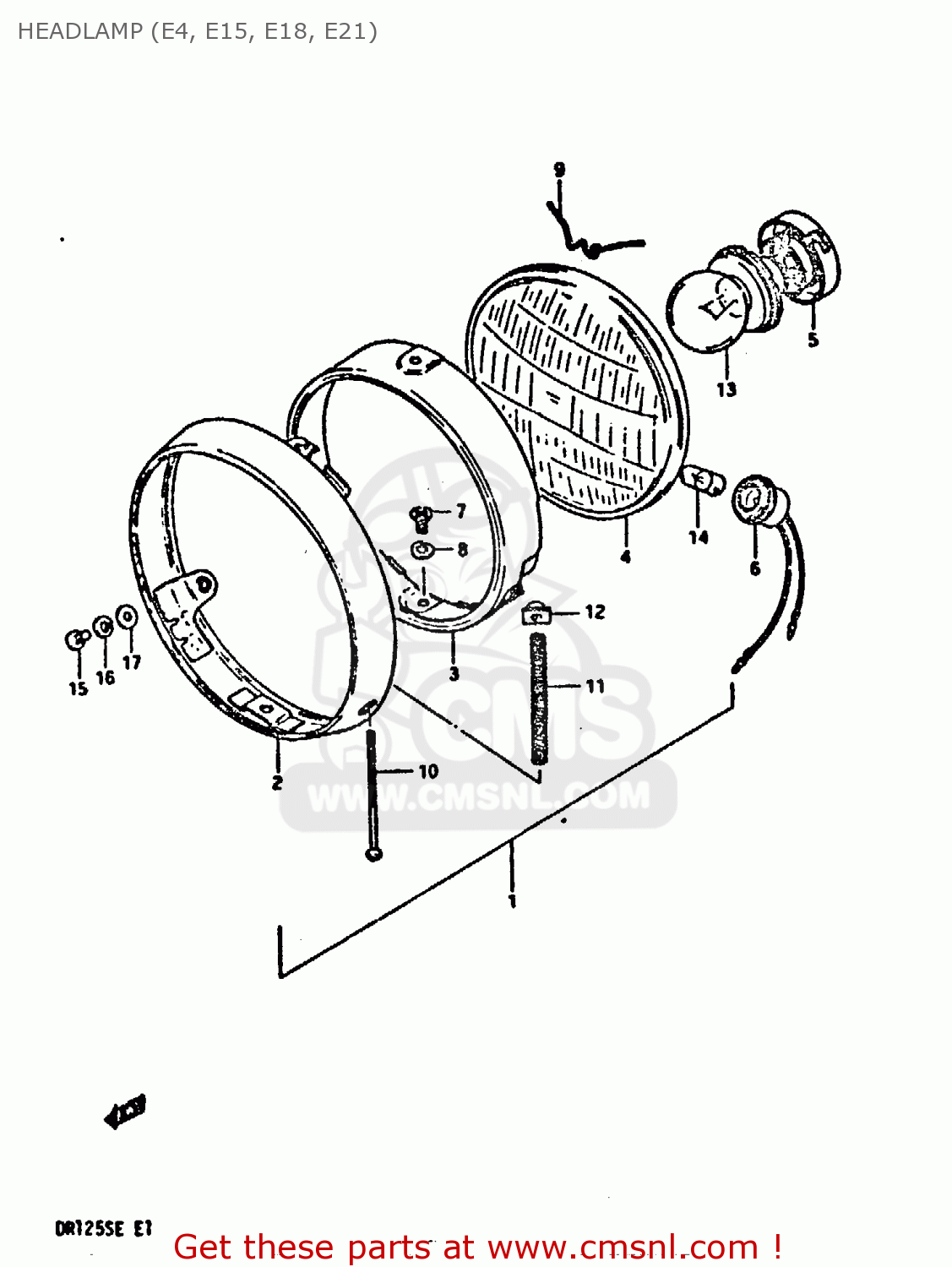

HEADLAMP (E4, E15, E18, E21)

ref

part #

description

quantity

1-1

3510038240999
ref: 1-1
E4

HEADLAMP ASSY

€ 0.00

1-2

3510038250999
ref: 1-2
E15, E18, E21

HEADLAMP ASSY

€ 192.00

2

3511137130
ref: 2

RIM,HEADLAMP

€ 23.00

3

3512729610
ref: 3

RETAINER

€ 15.50

4-1

3512144280
ref: 4-1
E4

UNIT

€ 67.00

4-2

3512144260
ref: 4-2
E15, E18, E21

LAMP UNIT

€ 67.00

5

3513634670
ref: 5

SETTER,BULB

€ 4.00

6

3611830500
ref: 6

SOCKET

€ 10.00

7

3513629610
ref: 7

SCREW

€ 3.00

8

0832121058
ref: 8

LOCK WASHER

€ 2.00

9

3512846720
ref: 9

SPRING

€ 4.50

10

3515144260
ref: 10

SCREW

€ 4.00

11

3515433630
ref: 11

SPRING

€ 2.50

12

3515215611
ref: 12

NUT

€ 3.50

13-1

0947112049
ref: 13-1
E4, EXECUTED LOCALLY

BULB (12V, 45/40W)

€ 0.00

13-2

0947112048
ref: 13-2
E15, E18, E21 EXECUT

BULB(12V45/40W)

€ 7.50

14

0947112063
ref: 14
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

15

0211204125
ref: 15

SCREW

€ 1.50

16

0832121045
ref: 16

LOCK WASHER

€ 2.00

17

0832221045
ref: 17

WASHER

€ 5.00

HEADLAMP (E4, E15, E18, E21)

all assemblies
