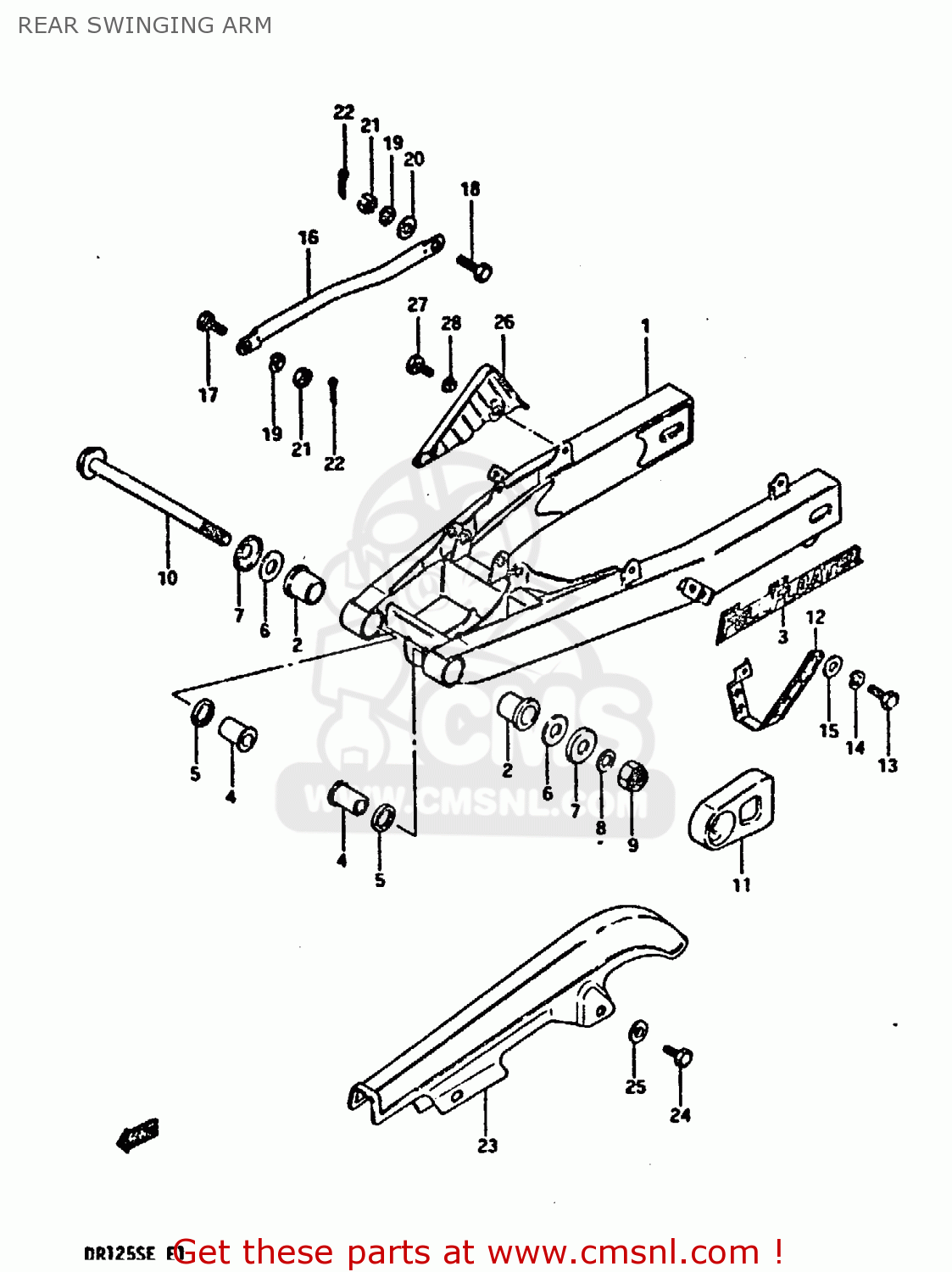

REAR SWINGING ARM

ref

part #

description

quantity

1

610000522508C
ref: 1

SWING ARM ASSEMBLY,REAR

€ 191.00

2

6126105300
ref: 2

BUSHING,REAR SWING ARM PIVOT

€ 9.50

3

683810520097J
ref: 3

EMBLEM,SWING ARM

€ 6.00

4

6125105300
ref: 4

SPACER,RR SWGARM PIVOT

€ 10.00

5

0928620001
ref: 5

SEAL,OIL(20X27X5)

€ 2.50

6

0821114341
ref: 6

WASHER

€ 3.00

7

6126245002
ref: 7

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

8

0832211148
ref: 8

WASHER

€ 2.00

9

0831921148
ref: 9

NUT 14MM

€ 3.00

10

6121105301
ref: 10

SHAFT,REAR SWING ARM

€ 12.00

11

6127305201
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 14.50

12

6134148504
ref: 12

GUIDE,CHAIN

€ 14.00

13

0110708128
ref: 13

BOLT 8X12

€ 2.50

14

0832121088
ref: 14

LOCK WASHER

€ 2.00

15

0832211088
ref: 15

WASHER

€ 2.00

16

643114600008C
ref: 16

TORQUE LINK,REAR

€ 8.00

17

0911108015
ref: 17

BOLT(8X22)

€ 3.00

18

0911108013
ref: 18

BOLT(8X26.5)

€ 3.00

19

0832121088
ref: 19

LOCK WASHER

€ 2.00

20

0832211088
ref: 20

WASHER

€ 2.00

21

0914008008
ref: 21

NUT

€ 1.50

22

0411120208
ref: 22

PIN 20X20

€ 1.50

23

6131138203291
ref: 23

CASE,CHAIN

€ 35.00

24

0910006092
ref: 24

BOLT 6X8

€ 2.50

25

0916906026
ref: 25

WASHER

€ 2.00

26

6139138200
ref: 26

GUARD,PILLION FOOT

€ 0.00

27

0910006092
ref: 27

BOLT 6X8

€ 2.50

28

0916906026
ref: 28

WASHER

€ 2.00

all assemblies
