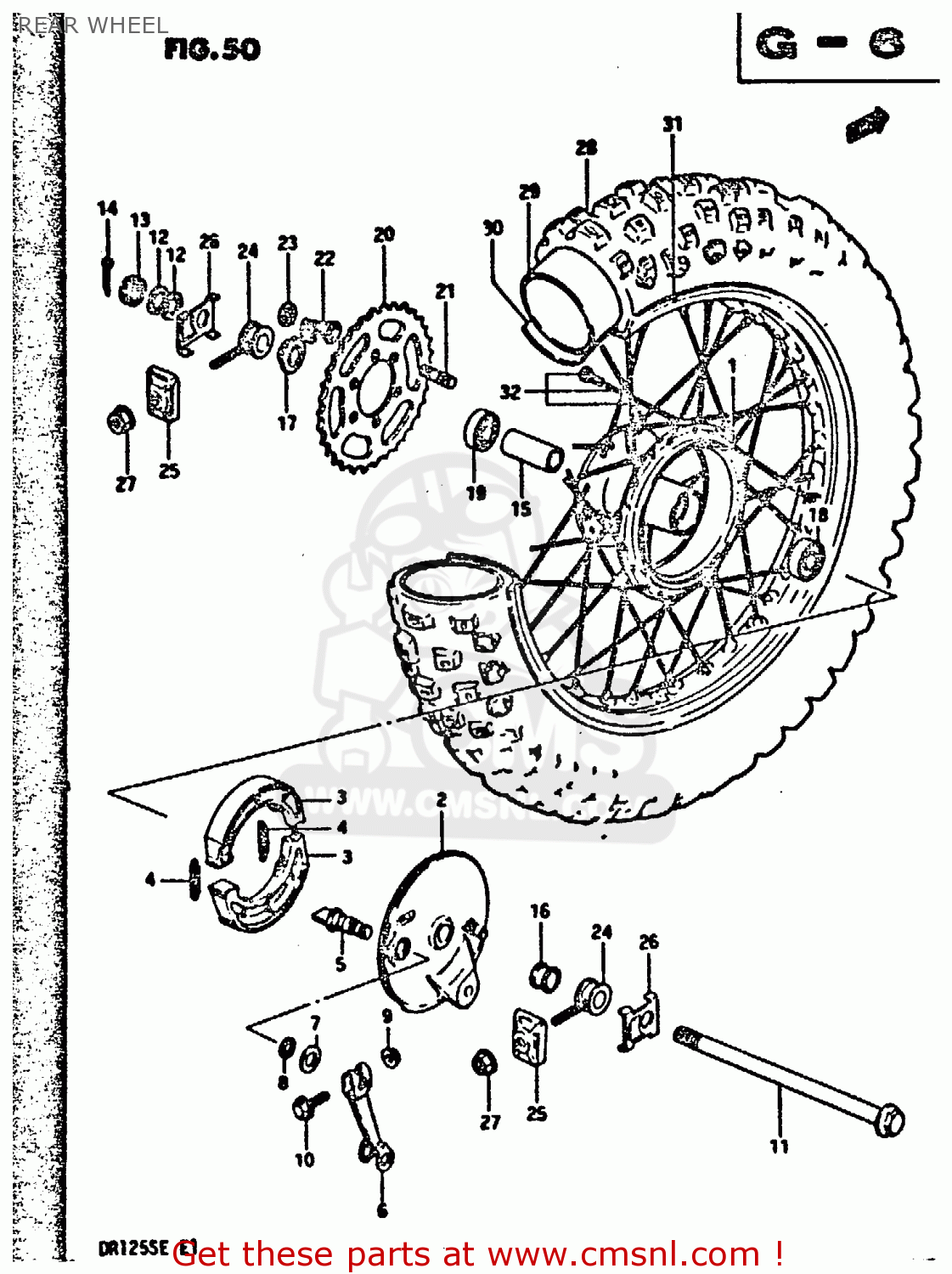

REAR WHEEL

ref

part #

description

quantity

1

6411005200
ref: 1

HUB,REAR WHEEL

€ 190.50

2

6421048000
ref: 2

PANEL,RR BRAKE ANCHOR

€ 83.50

3

5441007002
ref: 3

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129304
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

6445130501
ref: 6

LEVER,RR BRAKE CAM

€ 15.00

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0915906017
ref: 9

NUT

€ 2.50

10

0151706408
ref: 10

BOLT

€ 2.50

11

6471105200
ref: 11

AXLE,REAR

€ 38.50

12

0832221148
ref: 12

WASHER

€ 2.00

13

0914114001
ref: 13

NUT

€ 4.50

14

0411130308
ref: 14

COTTER PIN

€ 1.50

15

0918015013
ref: 15

SPACER(15.3X21.7X107.5)

€ 7.50

16

6474105200
ref: 16

SPACER,RR AXLE,R

€ 6.50

17

6475005201
ref: 17

SPACER,REAR AXLE,LEFT

€ 8.00

18

0814362027
ref: 18

BEARING

€ 12.50

19

0812363027
ref: 19

BEARING

€ 19.00

20

6451105210
ref: 20

SPROCKET,RR(NT:47)

€ 28.00

21

0910608100
ref: 21

BOLT

€ 3.50

22

0916908013
ref: 22

WASHER

€ 2.50

23

0831012088
ref: 23

NUT

€ 2.00

24

6141005200
ref: 24

ADJUSTER,CHAIN

€ 8.50

25

6142138200
ref: 25

PLATE,CHAIN ADJUSTER

€ 3.50

26

6471205200
ref: 26

WASHER,CHAIN ADJUSTER GUIDE

€ 4.50

27

0831931088
ref: 27

NUT

€ 2.50

28

6510005211
ref: 28

TIRE

€ 192.50

29

6520033030
ref: 29

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

30

5526111010
ref: 30

PROTECTOR,INNER TUBE

€ 3.50

31

6531105220
ref: 31

RIM,REAR WHEEL

€ 130.00

32

6532028021
ref: 32

SPOKE SET

€ 31.50
