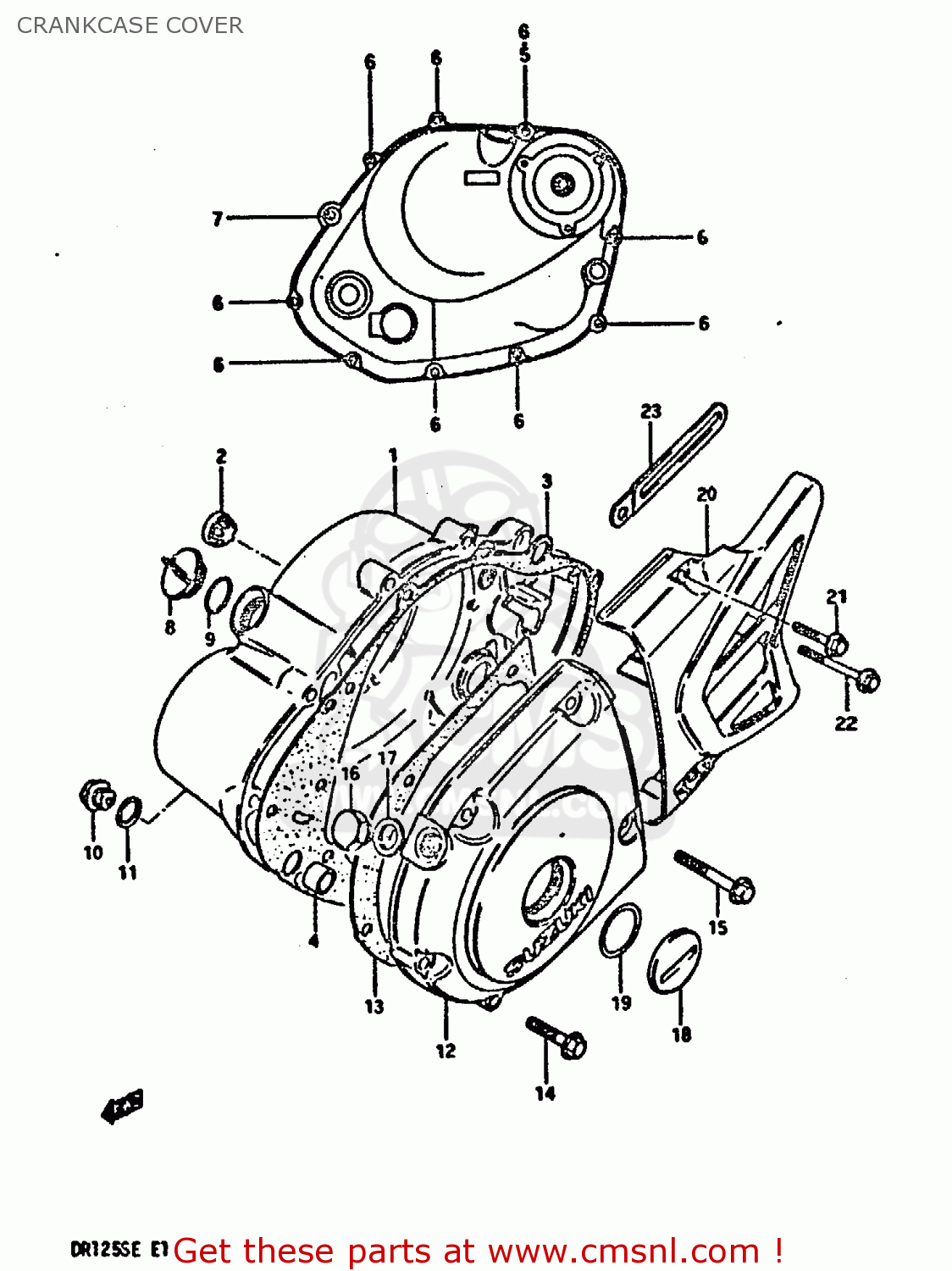

CRANKCASE COVER

ref

part #

description

quantity

1

1134005211
ref: 1

COVER,CLUTCH

€ 135.50

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148205200
ref: 3

GASKET,CLUTCH COVER (MCA)

€ 13.00

4

0920613001
ref: 4

PIN

€ 2.50

5

0916806015
ref: 5

WASHER

€ 2.00

6

0154706304
ref: 6

BOLT 6X30

€ 2.50

7

0154706454
ref: 7

BOLT

€ 3.00

8

0925920006
ref: 8

PLUG

€ 8.00

9

0926017003
ref: 9

O RING

€ 0.00

10

0924714015
ref: 10

PLUG(14X12)

€ 2.50

11

0916814004
ref: 11

GASKET(14X19.2X2) (NAS)

€ 2.50

12

1135105210
ref: 12

COVER,MAGNETO

€ 93.50

13

1148305200
ref: 13

GASKET,MAGNETO COVER (MCA)

€ 7.50

14

0154706304
ref: 14

BOLT 6X30

€ 2.50

15

0154706404
ref: 15

BOLT 6X40

€ 3.00

16

0924712103
ref: 16

PLUG(12X9)

€ 3.50

17

0916812002
ref: 17

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

18

0925926002
ref: 18

PLUG

€ 17.00

19

0928022008
ref: 19

O RING(D:3.1,ID:22.7)

€ 2.50

20

1136105210
ref: 20

COVER,SPROCKET

€ 26.50

21

0154705255
ref: 21

BOLT

€ 2.00

22

0154705455
ref: 22

BOLT

€ 2.00

23

0940406415
ref: 23

CLAMP

€ 3.00
