RIGHT HANDLE SWITCH

DR125S 1984 (E)

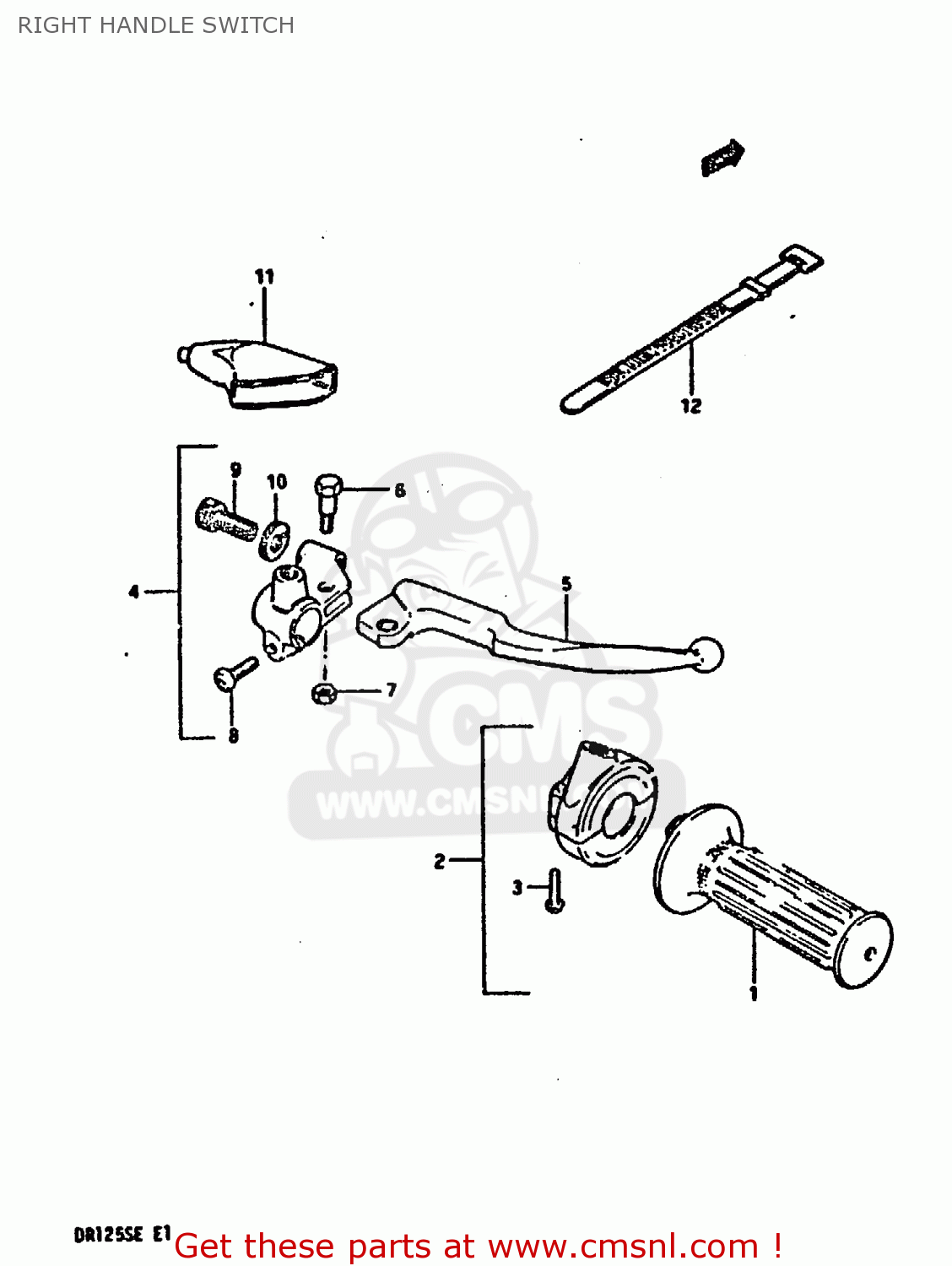

Right handle switch diagram DR125S 1984 (E)

RIGHT HANDLE SWITCH DR125S 1984 (E)

RIGHT HANDLE SWITCH DR125S 1984 (E)

prices are in EUR

ref

part #

description

quantity

1

5711037200
ref: 1

GRIP,THROTTLE

€ 20.50

2

5710037400
ref: 2

CASE ASSY,THROTTLE

€ 52.50

3

0211205208
ref: 3

SCREW 5X20

€ 3.00

4

5730005200
ref: 4

LEVER ASSEMBLY,BRAKE

€ 35.00

5

5742026400
ref: 5

LEVER,BRAKE

€ 28.50

6

5743111011
ref: 6

BOLT,LEVER

€ 6.00

7

0831921068
ref: 7

NUT 6MM

€ 2.00

8

0211206208
ref: 8

SCREW

€ 2.00

9

5744126010
ref: 9

ADJUSTER,CABLE

€ 4.00

10

5744211010
ref: 10

NUT,CABLE ADJUSTER

€ 4.00

11

5734140001
ref: 11

COVER,CLUTCH LEVER

€ 7.50

12

0940712402
ref: 12

CLAMP(L:120)

€ 3.00
