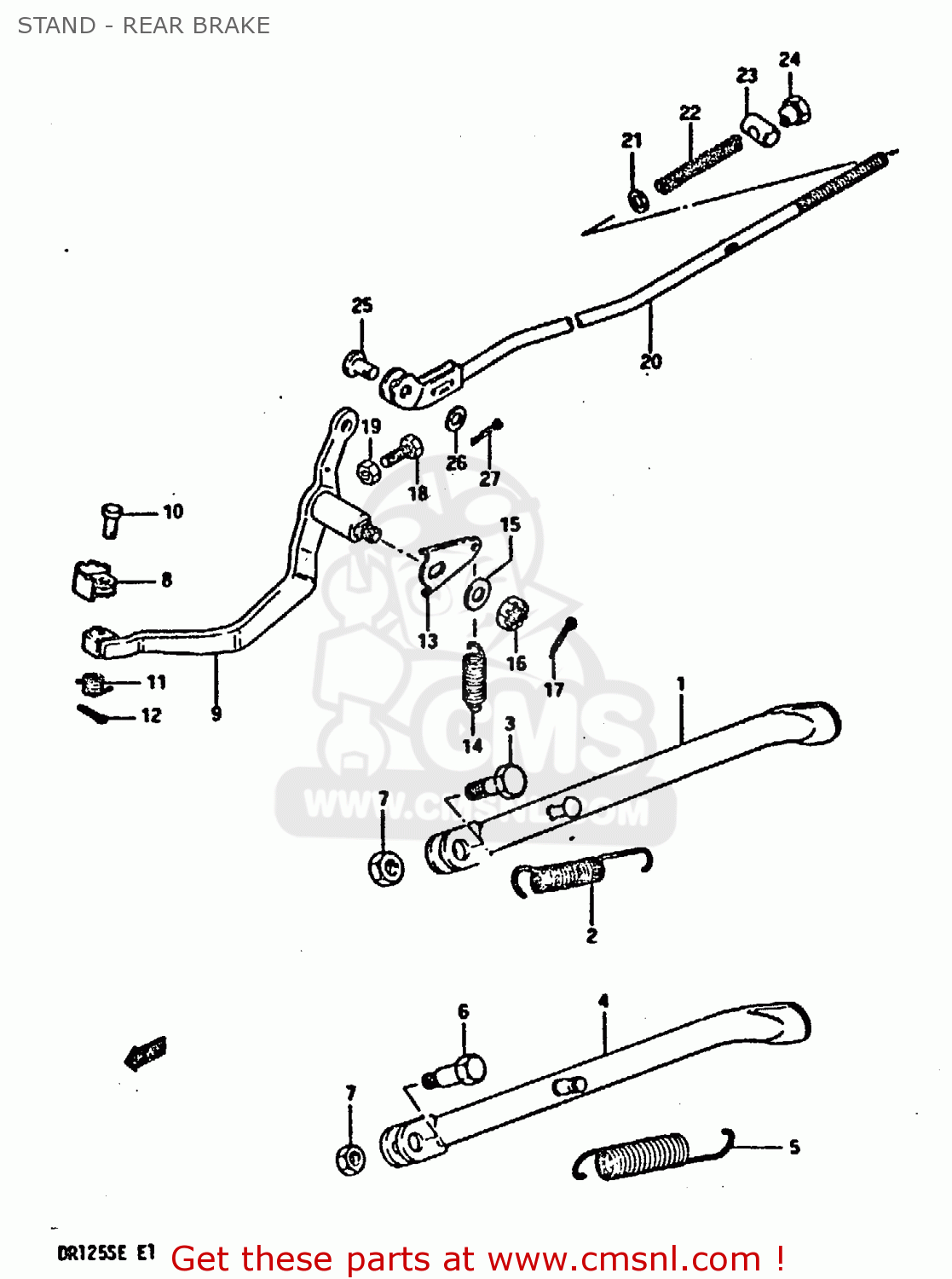

STAND - REAR BRAKE - DR125S 1984 (E)

ref

part #

description

quantity

1-1

423100520019F
ref: 1-1
FOR 019, 163, 10V

STAND,SIDE

€ 94.50

1-2

4231005200019
ref: 1-2
FOR 14C, 05K

STAND,SIDE

€ 94.50

2

0944317007
ref: 2

SPRING

€ 4.50

3

0910010067
ref: 3

BOLT(10X30)

€ 3.50

4-1

423100521019F
ref: 4-1
E18 FOR 019, 163, 10

STAND, PROP (BLUE)

€ 0.00

4-2

4231005210019
ref: 4-2
E18 FOR 14C, 05K

STAND, PROP (BLACK)

€ 19.00

5

0944315007
ref: 5
E18

SPRING

€ 6.00

6

0911110019
ref: 6
E18

BOLT L:30

€ 4.50

7

0831022108
ref: 7

NUT

€ 2.50

8

4311014130
ref: 8

PEDAL,BRAKE

€ 6.00

9

4312005211
ref: 9

ARM,BRAKE PEDAL

€ 14.50

10

0920006038
ref: 10

PIN

€ 2.00

11

0944411004
ref: 11

SPRING

€ 3.00

12

0411120158
ref: 12

PIN

€ 1.50

13

4312838200
ref: 13

ARM,BRAKE RETURN SPRING

€ 3.50

14

0944314002
ref: 14

SPRING

€ 2.50

15

0821108202
ref: 15

WASHER

€ 1.50

16

0831441008
ref: 16

NUT

€ 0.00

17

0411120208
ref: 17

PIN 20X20

€ 1.50

18

0910006009
ref: 18

BOLT(6X23)

€ 1.50

19

0831011068
ref: 19

NUT

€ 2.50

20

4330005200
ref: 20

ROD ASSEMBLY,REAR BRAKE

€ 27.50

21

0832221068
ref: 21

WASHER

€ 2.00

22

0944009004
ref: 22

SPRING

€ 2.00

23

0920913005
ref: 23

PIN

€ 3.50

24

0915006009
ref: 24

NUT (6MM)

€ 3.50

25

0920006039
ref: 25

PIN

€ 2.50

26

0832221068
ref: 26

WASHER

€ 2.00

27

0411120208
ref: 27

PIN 20X20

€ 1.50

STAND - REAR BRAKE
