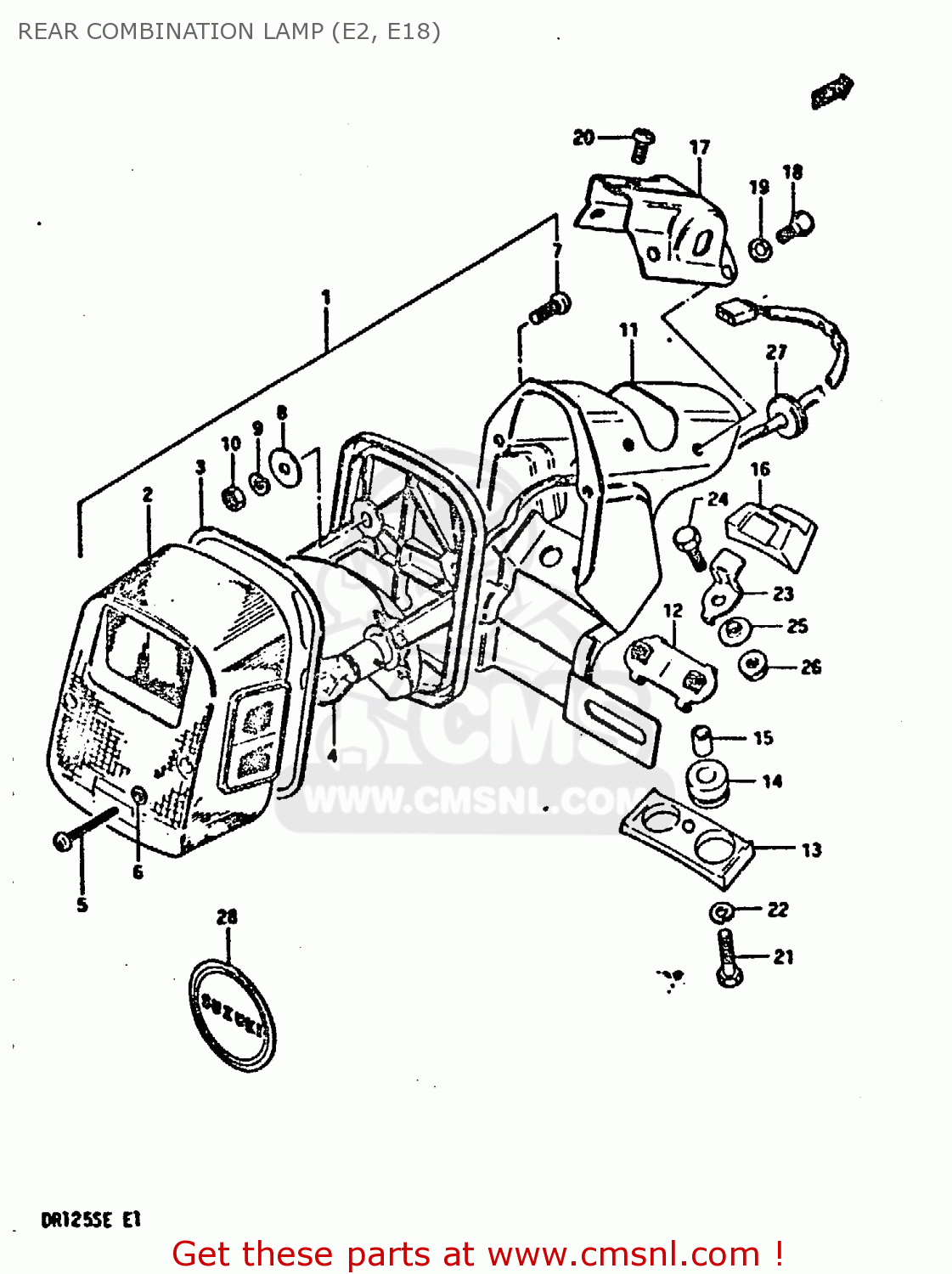

REAR COMBINATION LAMP (E2, E18)

ref

part #

description

quantity

1

3572038281
ref: 1

LAMP UNIT, REAR COMBINATION

€ 97.50

2

3571238221
ref: 2

LENS,RR COMBI

€ 50.00

3

3571338210
ref: 3

GASKET (NAS)

€ 4.50

4

0947112057
ref: 4

BULB 12V21/5W

€ 6.00

5

0321104308
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0211205165
ref: 7

SCREW

€ 2.00

8

3572736510
ref: 8

WASHER,REAR COMBINATION LAMP

€ 2.00

9

0832121050
ref: 9

LOCK WASHER

€ 0.00

10

0631011058
ref: 10

NUT

€ 0.00

11

3573038280
ref: 11

BRACKET UNIT

€ 0.00

12

3571638210
ref: 12

PLATE

€ 11.50

13

3576538210
ref: 13

CUSHION

€ 3.50

14

3576530950
ref: 14

CUSHION

€ 18.00

15

3576638210
ref: 15

SPACER

€ 3.00

16

3571738210
ref: 16

CUSHION,REAR COMBINATION LAMP

€ 6.50

17

3572738200
ref: 17

PLATE

€ 0.00

18

0110706125
ref: 18

BOLT

€ 2.00

19

0832221065
ref: 19

WASHER

€ 2.00

20

0214206125
ref: 20

SCREW 6X12

€ 2.00

21

0110706306
ref: 21

BOLT

€ 2.50

22

0832121066
ref: 22

WASHER,LOCK

€ 2.00

23

3579337201
ref: 23

PLATE,RR COMBINATION LAMP

€ 2.00

24

0110706166
ref: 24

BOLT

€ 2.00

25

0916906025
ref: 25

WASHER,LOCK

€ 3.00

26

0831626066
ref: 26

NUT

€ 2.00

27

0930809004
ref: 27

GROMMET

€ 0.00

28

3599545110
ref: 28
E18

EMBLEM, REAR

€ 0.00
