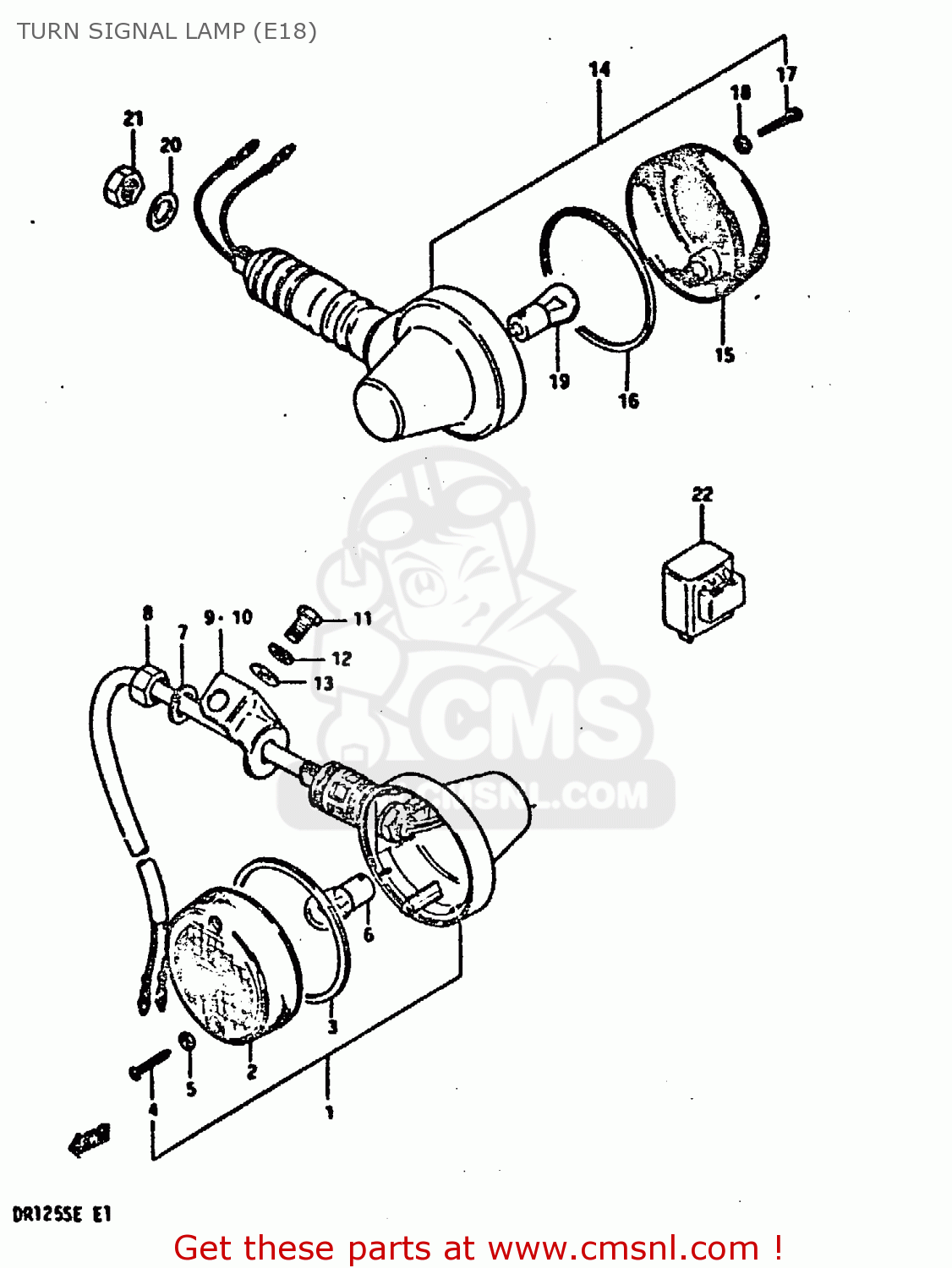

TURN SIGNAL LAMP (E18)

ref

part #

description

quantity

1

3560138280
ref: 1

LAMP, FRONT TURN SIGNAL

€ 0.00

2

3561248530
ref: 2

LENS

€ 7.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0321104256
ref: 4

SCREW ,4X25

€ 2.00

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112045
ref: 6
EXECTED LOCALLY

BULB(12V21W)

€ 5.00

7

0832121128
ref: 7

WASHER,LOCK 12

€ 2.50

8

0831012128
ref: 8

NUT

€ 3.00

9

5125129900291
ref: 9

BRACKET,TURNSIGNAL LAMP,R

€ 7.50

10

5125229900291
ref: 10

BRACKET,TURNSIGNAL LAMP,L

€ 7.50

11

0110706128
ref: 11

BOLT

€ 2.00

12

0832121068
ref: 12

LOCK WASHER

€ 2.50

13

0832221068
ref: 13

WASHER

€ 2.00

14

3560338280
ref: 14

LAMP, REAR TURN SIGNAL

€ 0.00

15

3561248510
ref: 15

LENS

€ 10.50

16

3561328620
ref: 16

GASKET (NAS)

€ 7.00

17

0321104258
ref: 17

SCREW TAPP.

€ 2.00

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19

0947112045
ref: 19
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

20

0832121128
ref: 20

WASHER,LOCK 12

€ 2.50

21

0831012128
ref: 21

NUT

€ 3.00

22

3861031310
ref: 22

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

all assemblies
