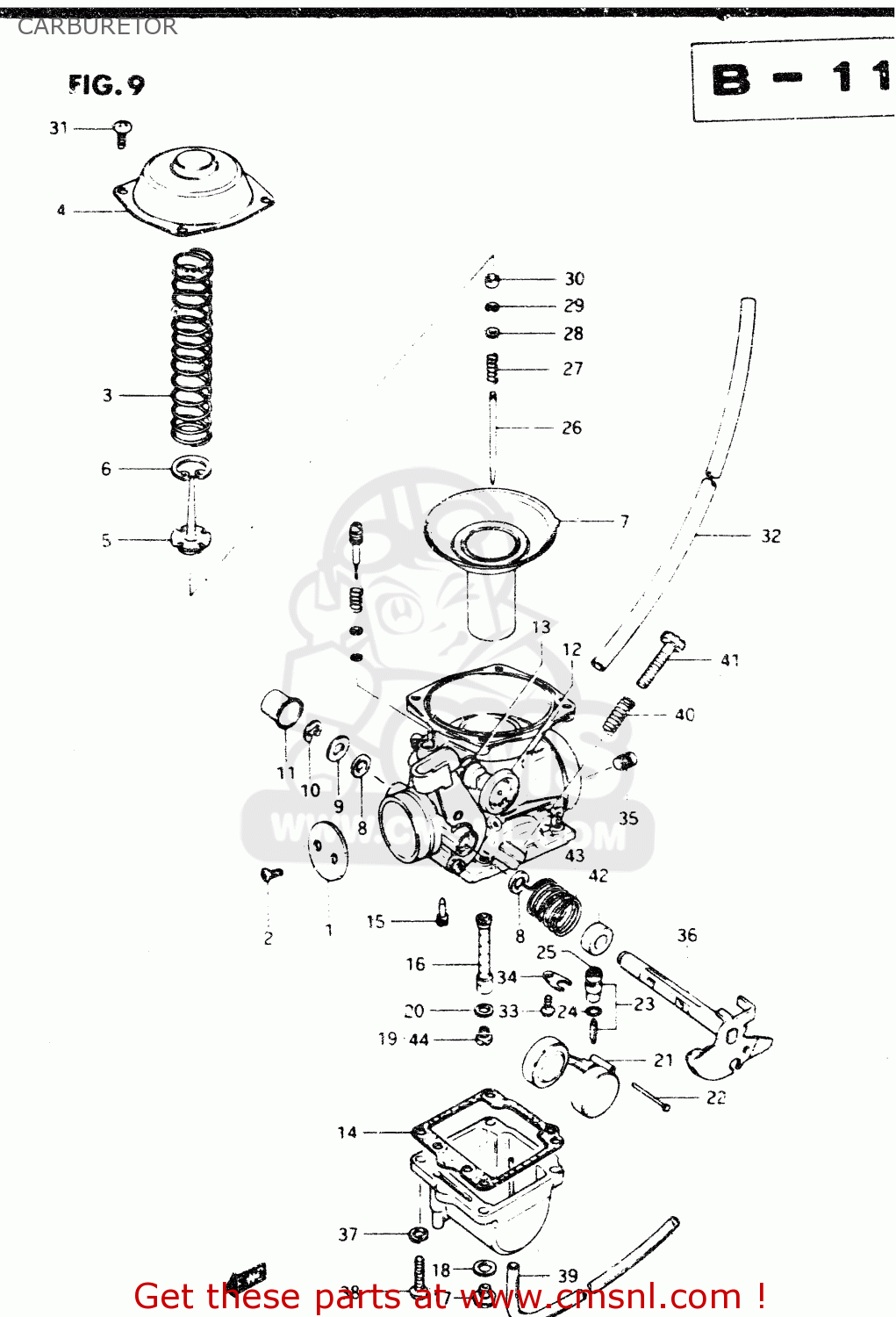

CARBURETOR

ref

part #

description

quantity

0

1320038220
ref: 0

CARBURETOR ASSY

€ 492.50

1

1355138310
ref: 1

THROTTLE VALVE (100)

€ 0.00

2

1360444080
ref: 2

SCREW

€ 3.50

3

1350337100
ref: 3

SPRING

€ 9.00

4

1350238300
ref: 4

COVER

€ 22.00

5

1338944030
ref: 5

HOLDER,GUIDE

€ 10.50

6

1358144030
ref: 6

E RING

€ 6.50

7

1350038310
ref: 7
FROM 13500-49200

DIAPHRAGM ASSY

€ 168.00

8

1365151010
ref: 8

SEAL

€ 4.00

9

1355747070
ref: 9

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

10

1361744080
ref: 10

E RING

€ 3.50

11

1357847070
ref: 11

CAP

€ 5.50

12

1341038210
ref: 12

STARTER VALVE

€ 25.00

13

1327847090
ref: 13

O RING

€ 2.00

14

1325137100
ref: 14

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

15

0949242010
ref: 15

JET,PILOT(42.5)

€ 8.50

16

0949400363
ref: 16

JET, NEEDLE (P-1)

€ 36.50

17

1324744080
ref: 17

PLUG,DRAIN

€ 9.50

18

1324644080
ref: 18

GASKET (NAS)

€ 3.50

19

0949125010
ref: 19

JET,MAIN(125)

€ 8.50

20

1336203110
ref: 20

WASHER

€ 0.00

21

1325037100
ref: 21

FLOAT

€ 33.50

22

1325492311
ref: 22

PIN,FLOAT

€ 2.00

23

1337037400
ref: 23

VALVE ASSEMBLY,NEEDLE

€ 66.50

24

6626399050
ref: 24

O RING

€ 6.00

25

1337665010
ref: 25

FILTER

€ 6.50

26

1338338310
ref: 26

NEEDLE,JET

€ 12.00

27

1338844030
ref: 27

SPRING

€ 6.00

28

1338244030
ref: 28

WASHER

€ 3.50

29

1339410010
ref: 29

CLIP

€ 4.50

30

1338747010
ref: 30

RING

€ 7.50

31

0211205108
ref: 31

SCREW

€ 2.00

32

1368311400
ref: 32

HOSE

€ 13.00

33

0211204068
ref: 33

SCREW 4X6

€ 2.00

34

1337339110
ref: 34

PLATE

€ 6.50

35

0949328005
ref: 35

JET,AIR(140)

€ 10.00

36

1355038300
ref: 36

SHAFT ASSEMBLY,THROTTLE

€ 0.00

37

0832121058
ref: 37

LOCK WASHER

€ 2.00

38

0211205168
ref: 38

SCREW

€ 2.50

39

1368438300
ref: 39

HOSE

€ 5.50

40

1327144220
ref: 40

SPRING,THROTTLE ADJUST

€ 3.50

41

1326737100
ref: 41

SCREW,THROTTLE STOP

€ 9.00

42

1357445110
ref: 42

RING

€ 3.50

43

1357338300
ref: 43

SPRING,THROTTLE SHAFT

€ 0.00

44-1

0949124005
ref: 44-1
OPT

JET

€ 11.50

44-2

0949124013
ref: 44-2
OPT, FROM 09491-2400

JET,MAIN(122.5)

€ 7.00

44-3

0949125011
ref: 44-3
OPT, FROM 09491-2500

JET,MAIN(127.5)

€ 10.00

44-4

0949126004
ref: 44-4
OPT

JET 130

€ 11.50

44-5

0949126012
ref: 44-5
OPT

JET,MAIN(132.5)

€ 11.50
