HEADLAMP (E2, E18, E22, E25, E39)

DR250S 1983 (D)

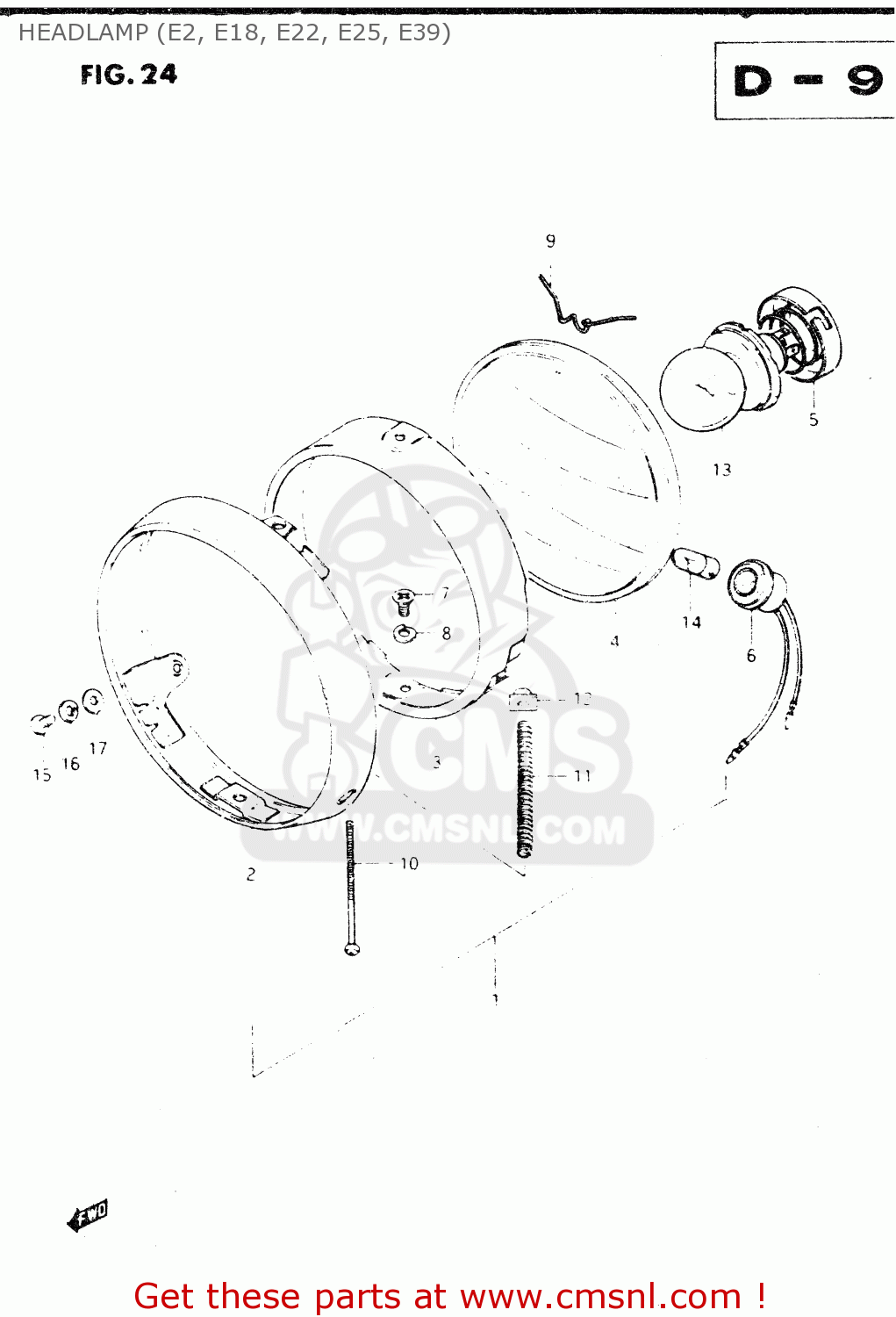

Headlamp (e2, e18, e22, e25, e39) diagram DR250S 1983 (D)

HEADLAMP (E2, E18, E22, E25, E39) DR250S 1983 (D)
HEADLAMP (E2, E18, E22, E25, E39) DR250S 1983 (D)
HEADLAMP (E2, E18, E22, E25, E39) DR250S 1983 (D)
prices are in EUR
ref
part #
description
quantity
1
3510038250999
ref: 1
HEADLAMP ASSY
€ 192.00
2
3511137130
ref: 2
RIM,HEADLAMP
3511137130
€ 23.00
3
3512729610
ref: 3
RETAINER
3512729610
€ 15.50
4
3512144260
ref: 4
LAMP UNIT
3512144260
€ 67.00
5
3513634670
ref: 5
SETTER,BULB
3513634670
€ 4.00
6
3611830500
ref: 6
SOCKET
3611830500
€ 10.00
7
3513629610
ref: 7
SCREW
3513629610
€ 3.00
8
0832121058
ref: 8
LOCK WASHER
0832121058
€ 2.00
9
3512846720
ref: 9
SPRING
3512846720
€ 4.50
10
3515144260
ref: 10
SCREW
3515144260
€ 4.00
11
3515433630
ref: 11
FROM 35154-29610
SPRING
3515433630
€ 2.50
12
3515215611
ref: 12
NUT
3515215611
€ 3.50
13
0947112048
ref: 13
EXECUTED LOCALLY
BULB(12V45/40W)
0947112048
€ 7.50
14
0947112063
ref: 14
EXECUTED LOCALLY
BULB(12V4W)
0947112063
€ 6.00
15
0211204128
ref: 15
SCREW
0211204128
€ 1.50
16
0852121048
ref: 16
LOCK WASHER
€ 0.00
17
0832221048
ref: 17
WASHER
0832221048
€ 2.00
