HEADLAMP (E4)

DR250S 1983 (D)

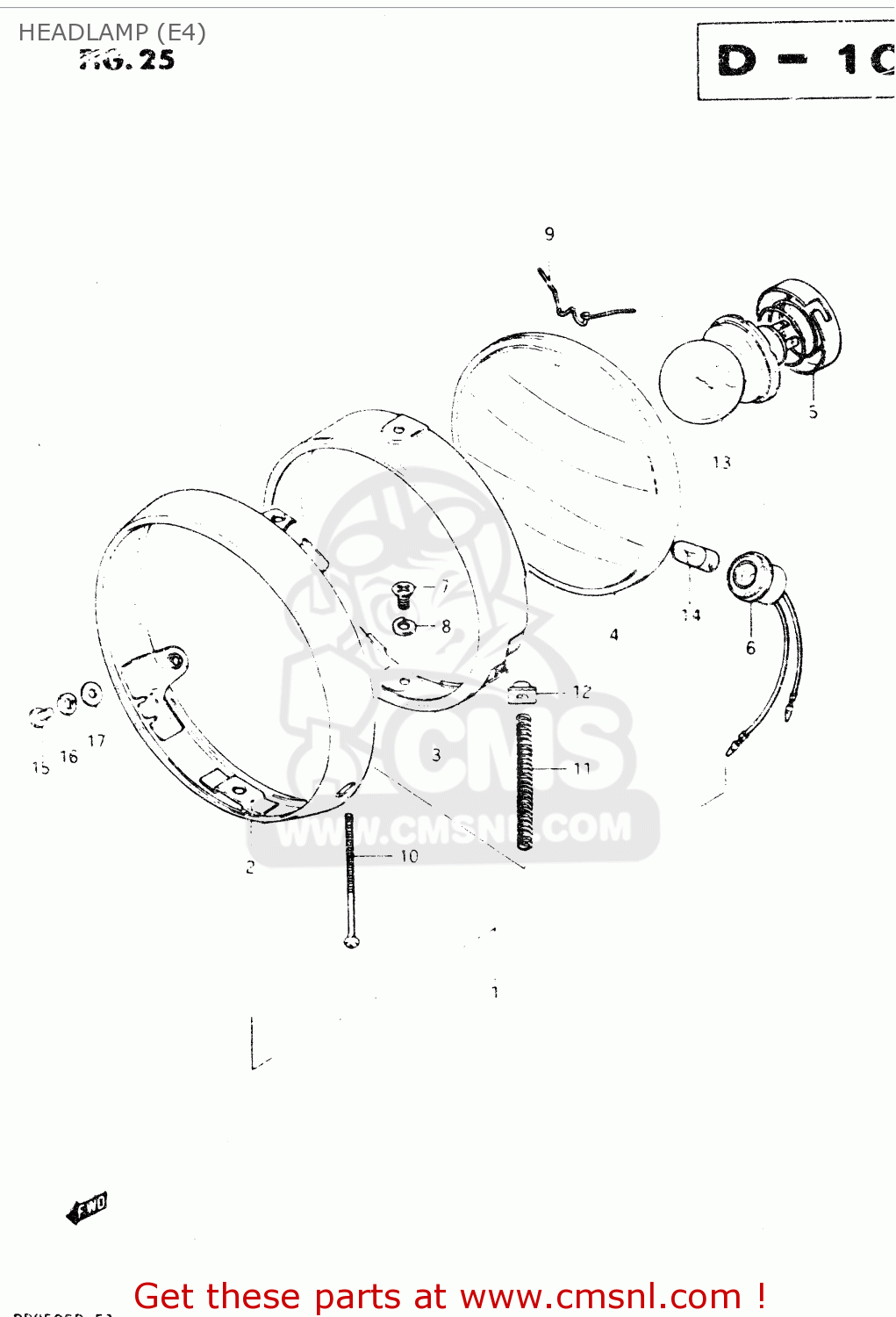

Headlamp (e4) diagram DR250S 1983 (D)

HEADLAMP (E4) DR250S 1983 (D)

HEADLAMP (E4) DR250S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

3510038240999
ref: 1

HEADLAMP ASSY

€ 0.00

2

3511137130
ref: 2

RIM,HEADLAMP

€ 23.00

3

3512729610
ref: 3

RETAINER

€ 15.50

4

3512144280
ref: 4

UNIT

€ 67.00

5

3513634670
ref: 5

SETTER,BULB

€ 4.00

6

3611830500
ref: 6

SOCKET

€ 10.00

7

3513629610
ref: 7

SCREW

€ 3.00

8

0832121058
ref: 8

LOCK WASHER

€ 2.00

9

3512846720
ref: 9

SPRING

€ 4.50

10

3515131610
ref: 10

SCREW

€ 4.00

11

3515433630
ref: 11
FROM 35154-29610

SPRING

€ 2.50

12

3515215611
ref: 12

NUT

€ 3.50

13

0947112049
ref: 13
EXECUTED LOCALLY

BULB (12V, 45/40W)

€ 0.00

14

0947112063
ref: 14
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

15

0211204128
ref: 15

SCREW

€ 1.50

16

0832121048
ref: 16

LOCK WASHER

€ 2.00

17

0832221048
ref: 17

WASHER

€ 2.00
