OIL PUMP

DR250S 1983 (D)

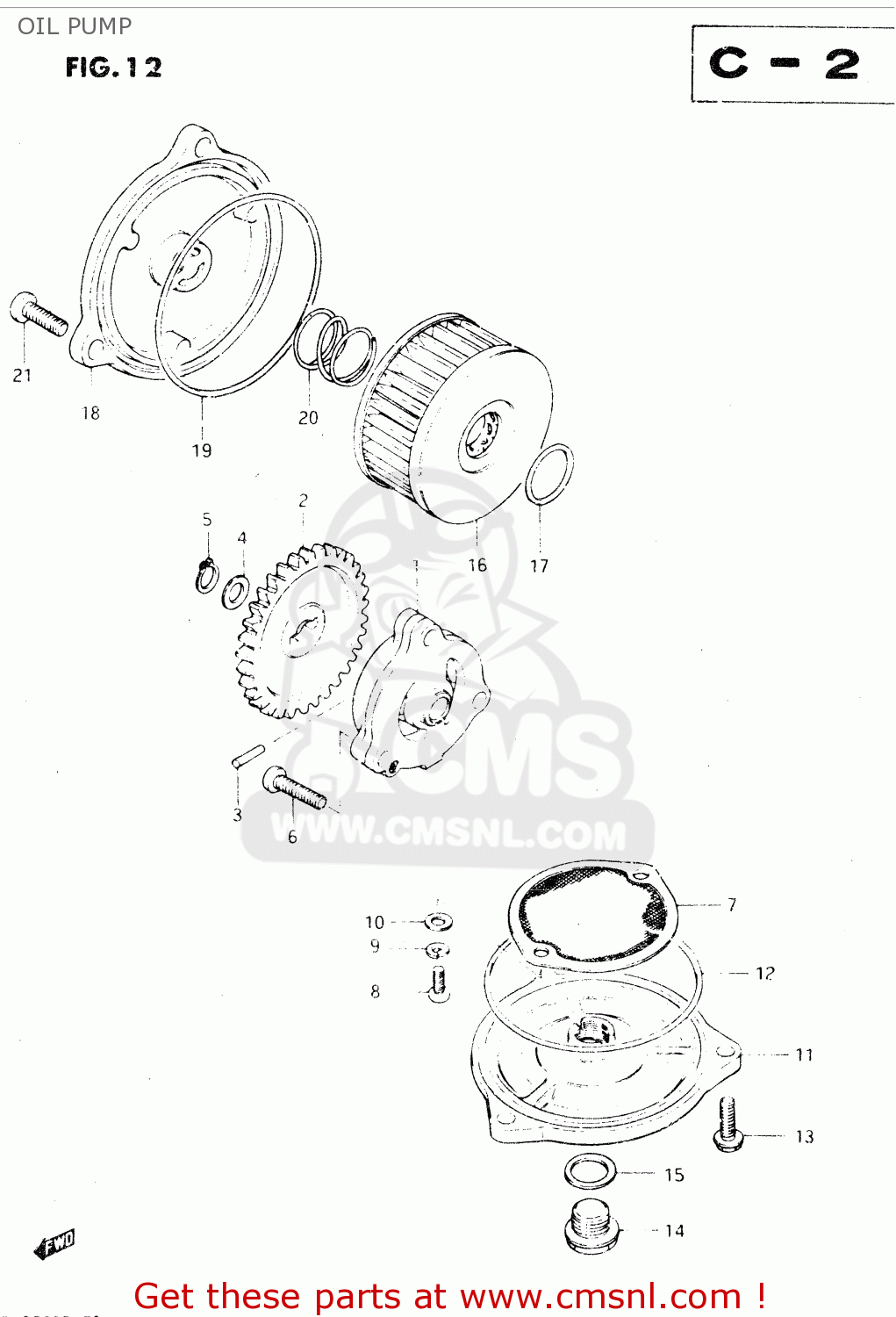

Oil pump diagram DR250S 1983 (D)

OIL PUMP DR250S 1983 (D)
OIL PUMP DR250S 1983 (D)
OIL PUMP DR250S 1983 (D)
prices are in EUR
ref
part #
description
quantity
1
1640038200
ref: 1
PUMP ASSY,ENGINE OIL
€ 164.50
2
1633138200
ref: 2
GEAR,OIL PUMP DRIVEN(NT:33)
1633138200
€ 31.00
3
0926104009
ref: 3
PIN(4X15.8)
0926104009
€ 1.50
4
0822110185
ref: 4
SHIM
0822110185
€ 2.00
5
0833131109
ref: 5
CIRCLIP
0833131109
€ 2.00
6
0211206256
ref: 6
SCREW
€ 1.50
7
1652037400
ref: 7
STRAINER,ENGINE OIL
1652037400
€ 7.00
8
0211205128
ref: 8
SCREW
€ 2.50
9
0832121058
ref: 9
LOCK WASHER
0832121058
€ 2.00
10
0832221058
ref: 10
WASHER
€ 2.50
11
1652338200
ref: 11
CAP,OIL STRAINER
1652338200
€ 36.00
12
0928082001
ref: 12
O RING(D:2.4,ID:85)
0928082001
€ 6.50
13
0154706208
ref: 13
BOLT (6X20)
0154706208
€ 2.50
14
0924714001
ref: 14
PLUG
0924714001
€ 5.00
15
0916814004
ref: 15
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
16
1651038240
ref: 16
FILTER ASSY,ENGINE OIL
1651038240
€ 7.50
17
0928016005
ref: 17
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
18
1651238200
ref: 18
CAP,OIL FILTER
1651238200
€ 23.50
19
0928072001
ref: 19
O RING(D:2.4,ID:73)
0928072001
€ 5.00
20
0944021004
ref: 20
SPRING
0944021004
€ 13.00
21
0211206205
ref: 21
SCREW
€ 2.00
