KICK STARTER

DR250S 1983 (D)

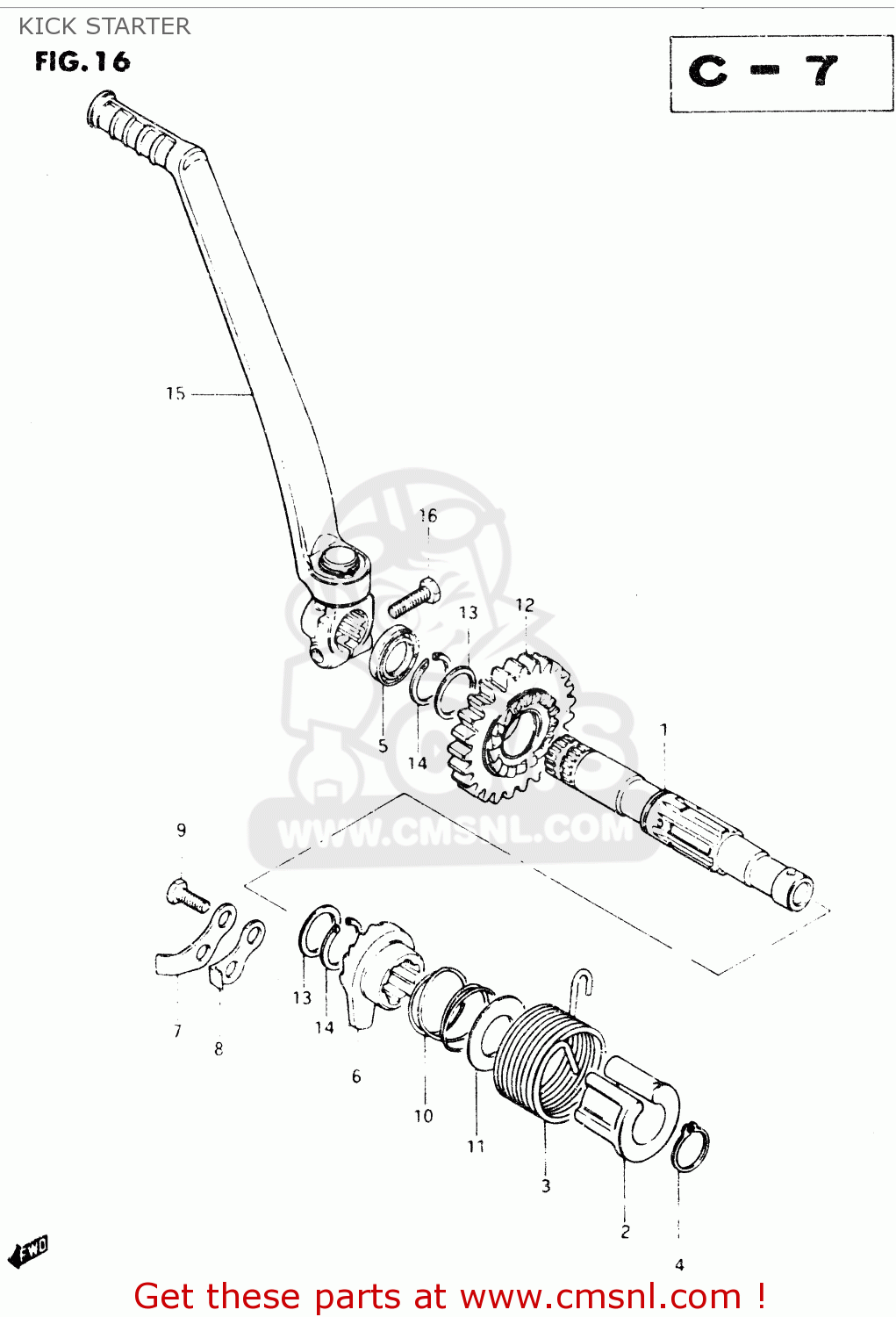

Kick starter diagram DR250S 1983 (D)

KICK STARTER DR250S 1983 (D)

KICK STARTER DR250S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

2621138201
ref: 1
FROM 26211-38200

SHAFT,KICK STARTER

€ 59.00

2

2622132400
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 0.00

3

0944845008
ref: 3

SPRING

€ 16.00

4

0938017001
ref: 4

CIRCLIP

€ 2.00

5

0928320031
ref: 5

SEAL,OIL(20X27X5)

€ 5.00

6

2623138200
ref: 6

STARTER,KICK

€ 25.50

7

2623238200
ref: 7

GUIDE,KICK STARTER

€ 4.00

8

2623332400
ref: 8

STOPPER,KICK STARTER

€ 3.00

9

0110708208
ref: 9

BOLT

€ 3.00

10

0944032006
ref: 10

SPRING

€ 1.50

11

0821117341
ref: 11

WASHER

€ 2.00

12

2624038200
ref: 12

GEAR,KICK STARTER DRIIVE

€ 68.50

13

0821122281
ref: 13

SHIM

€ 4.00

14

0938022006
ref: 14

CIRCLIP

€ 3.00

15

2630038211
ref: 15

LEVER ASSEMBLY,KICK STARTER

€ 81.50

16

0910008194
ref: 16

BOLT 8X25

€ 2.00
